Procedure no. 11 Replacement of extruderpiston.
The extruder piston

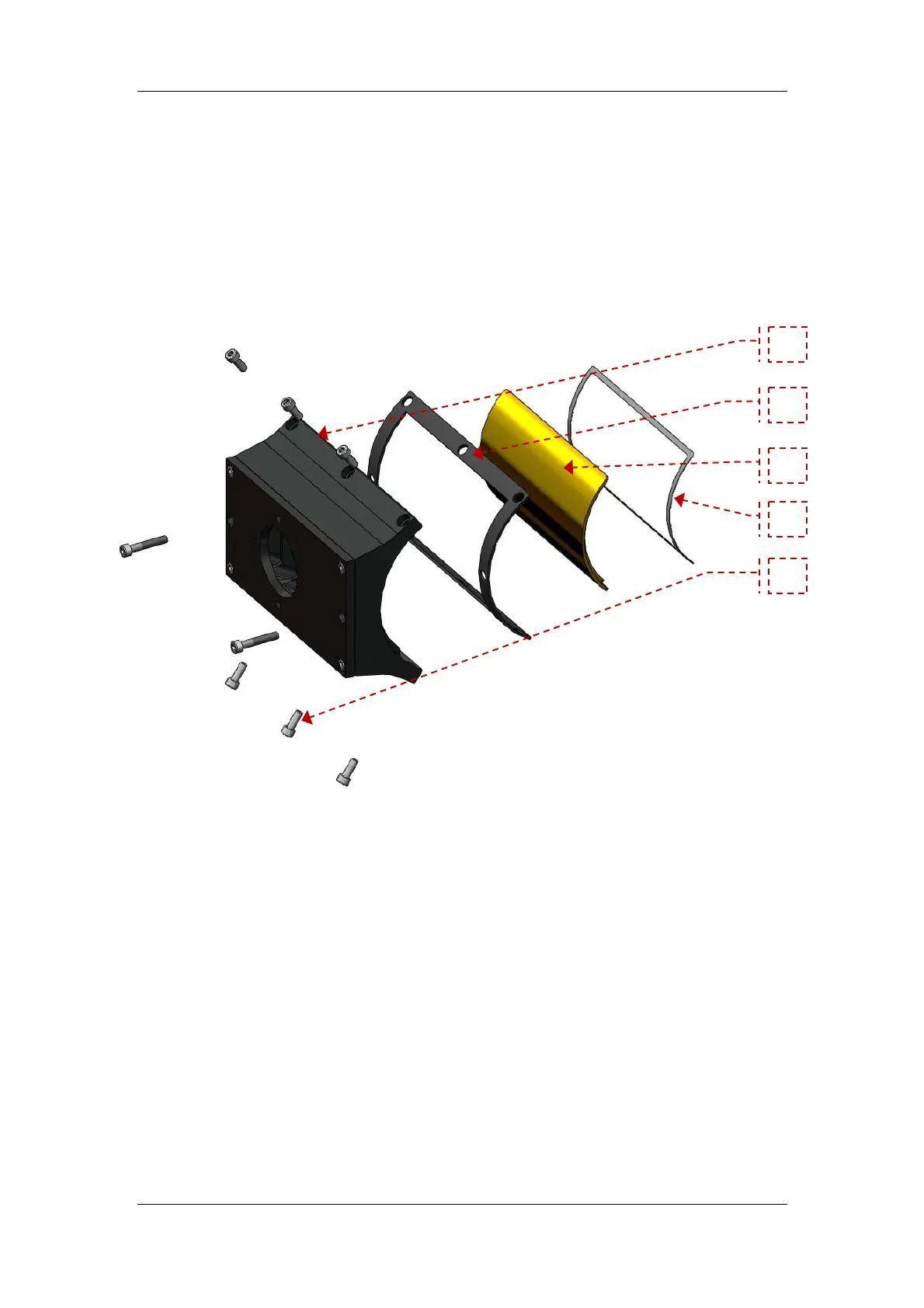

Remove the filter on one side of the extruder cylinder to gain access to the piston by
loosening the 8 screws [9] and pull the filter housing [5], rubber gasket [6], filter [7] and
filter gasket [8] out, and you have access inside the extruder chamber.
5
6
7
8
9
