6
SC
2210 Electronic Thermostat
SimpleComfort
®

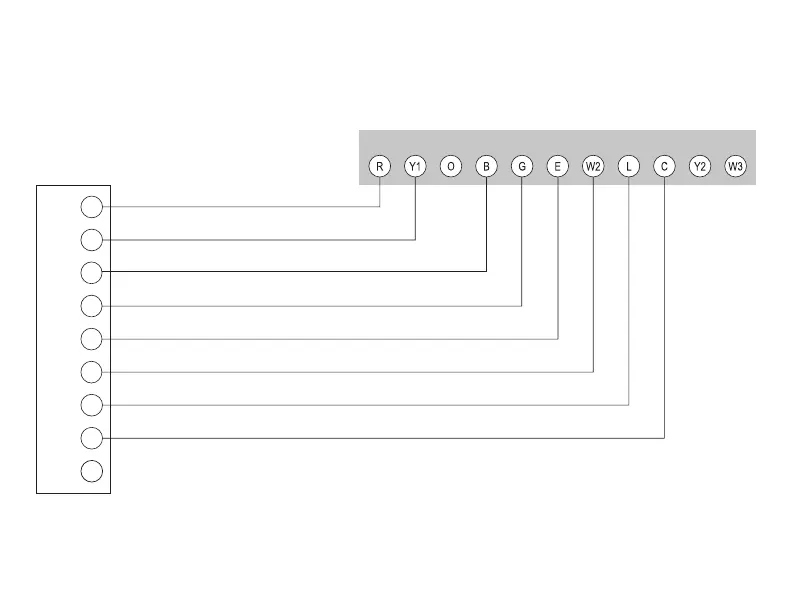

2210 Electronic Thermostat Conversion to:
Coleman 3000 Series Heat Pump Systems
24 VAC, Return
Compressor Contactor
Reversing Valve (Heating Mode)
Fan Contactor Circuit
Emergency Heating Circuit
2nd Stage Heating Circuit
System Monitor LED
24 VAC, Common
R
Y
B
G
E
W2
L
X
O
Coleman 3000
Low Voltage Terminal Board
