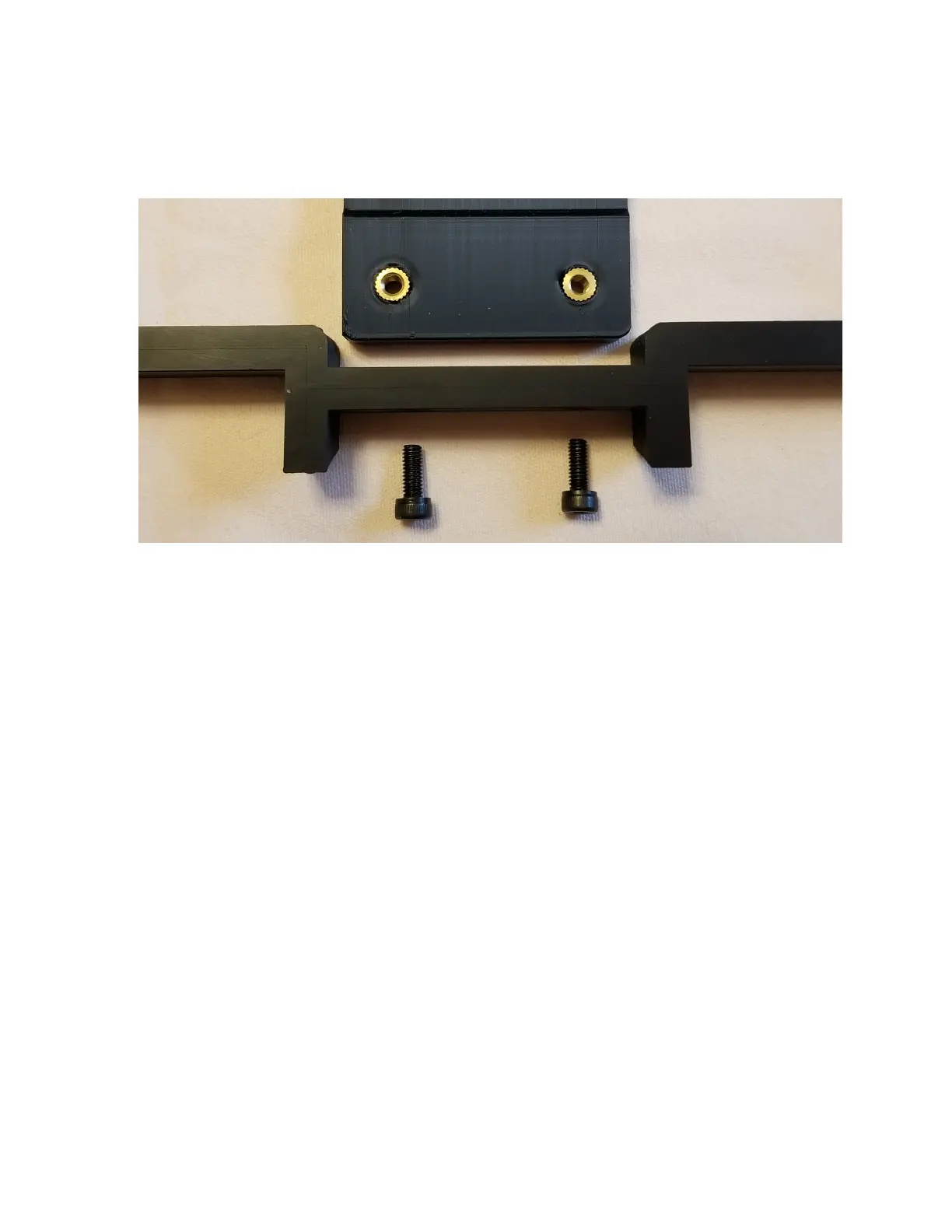

7. Start attaching the frame to the bottom bracket using 2 M4 x 10mm socket head screws, but do
not tighten these screws at this time. They should only be screwed in far enough to remain in
the holes. We will tighten them in a later step.
