Icom IC-730 - Page 34

.....
I
~

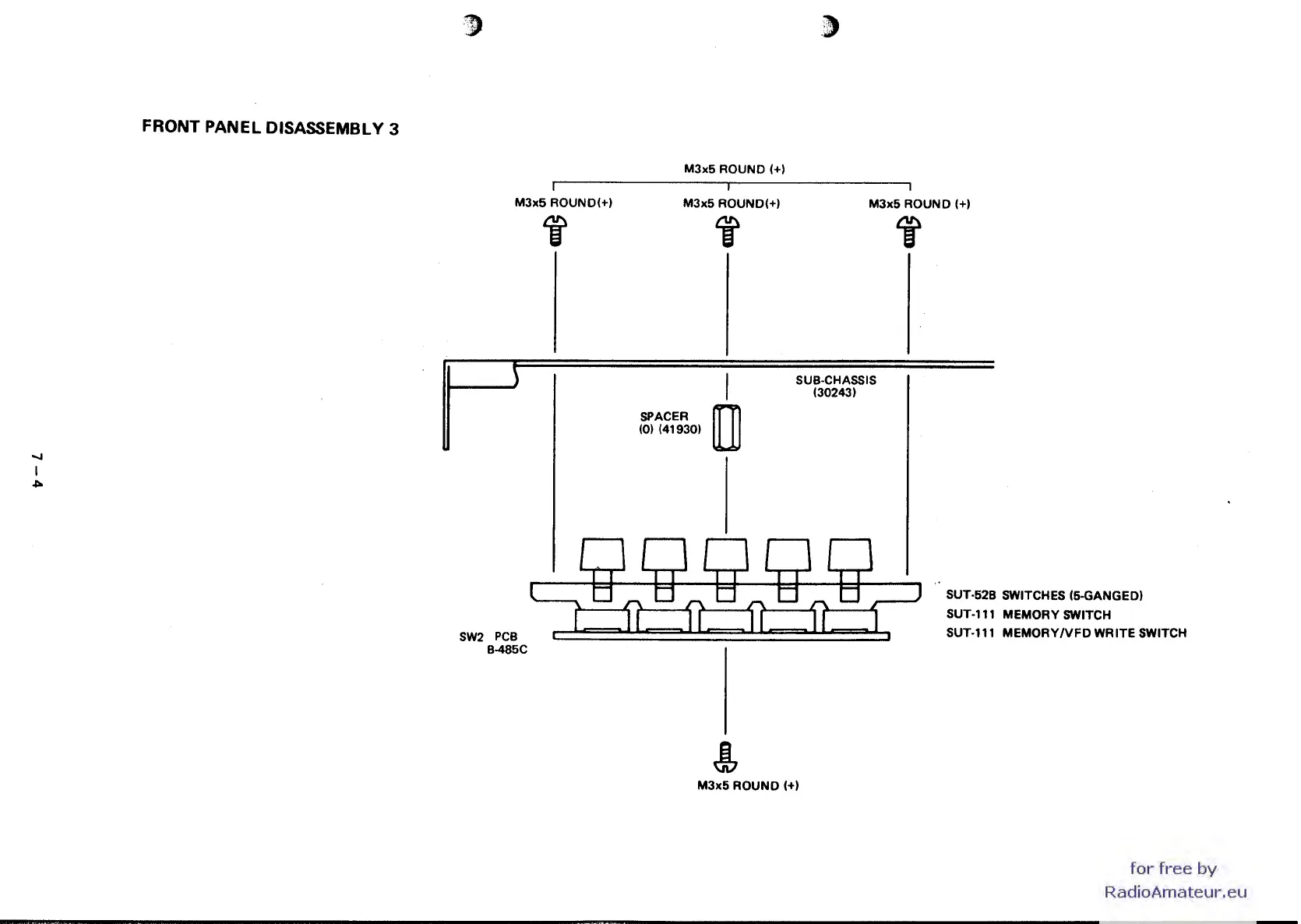

FRONT PANEL DISASSEMBLY 3
I
M3x5 ROUND(+)
SW2 PCB
B-485C
M3x5 ROUND (+)
M3x5 ROUND(+)
I
SPACER []
(0) (41930)
I
M3x5 ROUND (+)
SUB·CHASSIS
(30243)
SUT·52B SWITCHES (5·GANGED)
SUT·111 MEMORY SWITCH
SUT·111
MEMORY!VFD WRITE SWITCH
M3x5 ROUND (+)
