4 - 7
ADJUSTMENT ITEM
TRANSCEIVER'S
CONDITION
OPERATION
MEASURE
POINT
ADJUST
POINT
VALUE
LOADING REFERENCE
VOLTAGE
• Display: "13.8 SET"
• Receiving
• Set the power supply voltage to
13.8 V.
– – Push [F-5].
(A beep sounds,
and then another
beeps sound
0.5 sec. later)
SETTING ID REFERENCE
LEVEL
1 • Display: "ID HF+1.0A"
• Transmitting
• Connect a dummy load to [ANT1]. – – Push [F-5].
2 • Display: "IPD HF+1.0A"
• Transmitting
ID ADJUSTMENT 1 • Display: "ID SET HF"
• Transmitting
1) Connect a dummy load to
[ANT1].
2) Connect an ammeter to the
power supply line.
Power
supply line
– Push [F-5].
(Meaure the
current and
note it as the
reference.)
2 • Display: "HFID1V"
• Transmitting
[MAIN DIAL] 1.0 A more than
the reference.
Push [F-5].
3 • Display: "HFID2V"
• Transmitting
– Push [F-5].
(A beep sounds,
and then
another beeps
sound 3 sec.
later)
4 • Display: "HDID1V"
• Transmitting
[MAIN DIAL] 1.0 A more than
"Step3."
Push [F-5].
5 • Display: "HDID2V"
• Transmitting
– Push [F-5].
(A beep sounds,
and then
another beeps
sound 3 sec.
later)
6 • Display: "HPID1V"
• Transmitting
– Push [F-5].
(A beep sounds,
and then
another beeps
sound 3 sec.
later)
Automatically returns to the main adjustment menu.

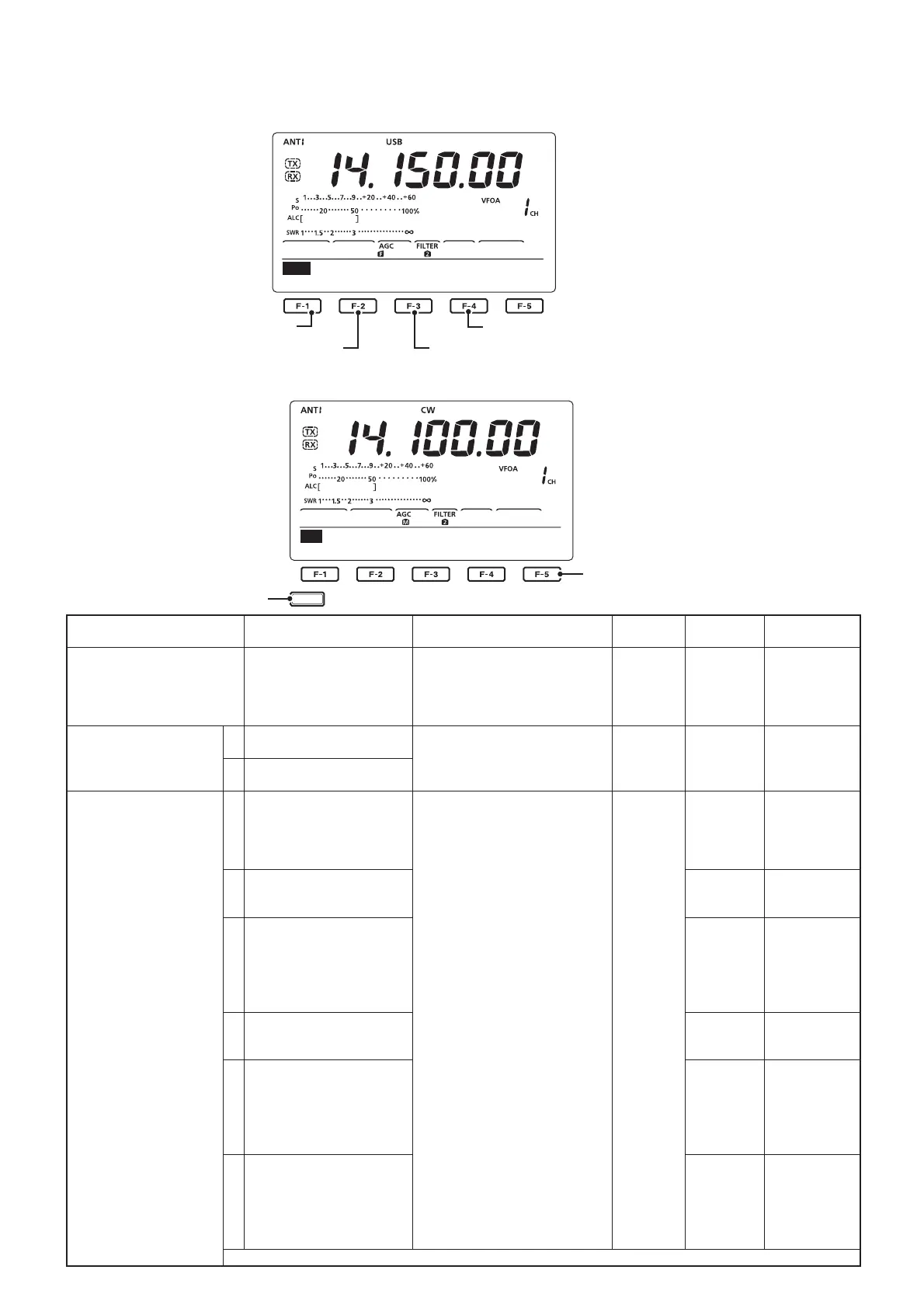

4-6 ADJUSTMENTS ON THE FUNCTION DISPLAY
1) Connect the short plug (Page 4-1) to [REMOTE], and while holding down [MENU] and [SSB], turn ON the power.
2) The main adjustment menu appears.
¤
ID ADJUSTMENTS
¤
MAIN
ADJUSTMENT MENU
ID TX REF RX
ADJ
Select the ID adjustment (See below)
Select the transmit adjustment (Page 4-8) Select the reference frequency/APC reference adjustment (Page 4-9)
Select the receive adjustment (Page 4-10)
MENU
13.8 SET
SET
ID
Reterns to the previous screen.
Stores the value and move to the next item.
To Next Page
