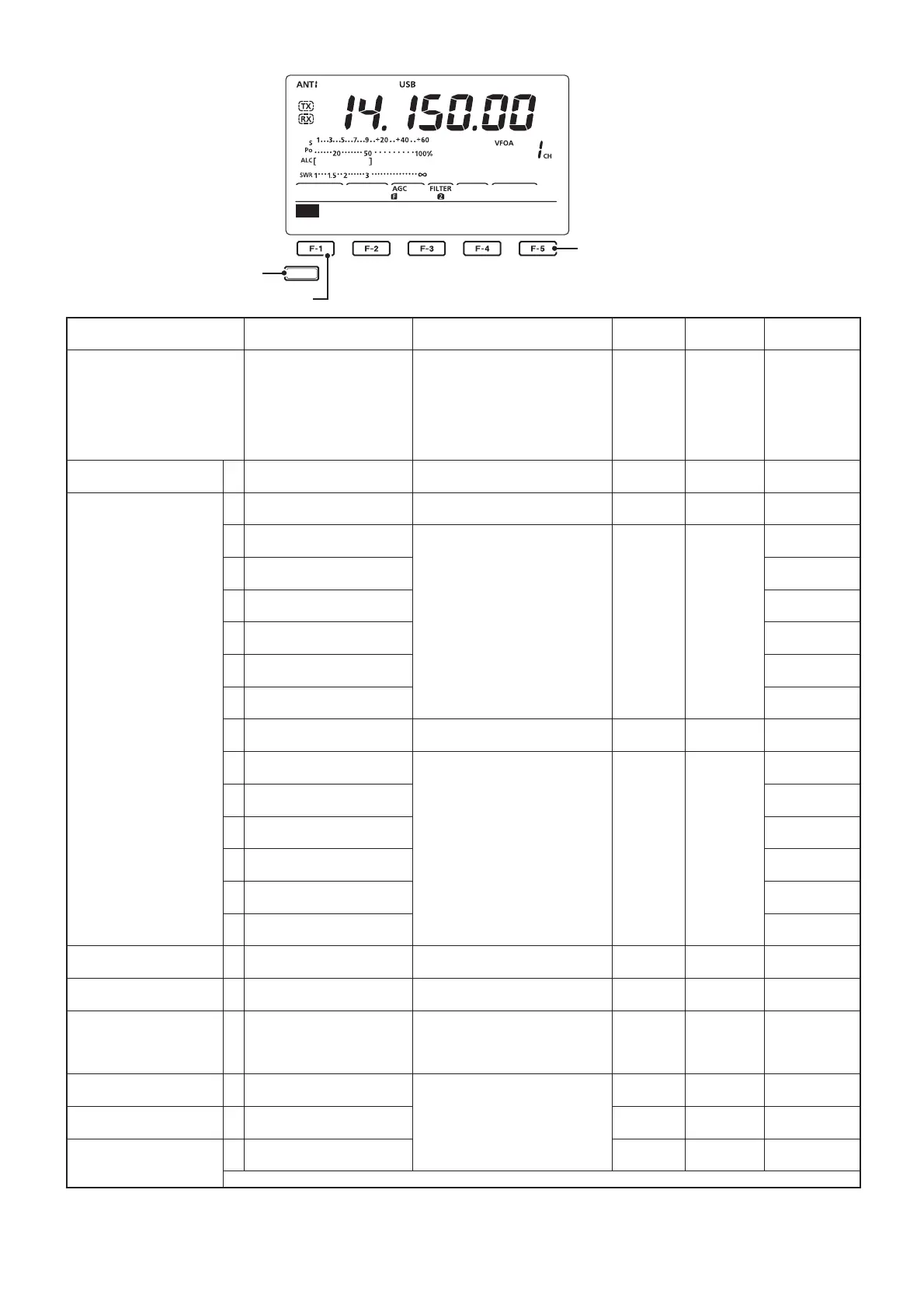

4 - 8
ADJUSTMENT ITEM
TRANSCEIVER'S
CONDITION
OPERATION
MEASURE
POINT
ADJUST
POINT
VALUE
PREPARATION
Connect an AG and millivoltmeter
to [MIC], and then set it as;
Frequency : 1.5 kHz
Level : 1 mV
Connect a power meter to [ANT1].
Connect a 25 ohm dummy load to
[ANT2].
––
TX TOTAL GAIN 1 • Display: "Total Gain HF"
• Receiving
Push [F-5]. (Automatically starts
to transmit.)
[MAIN DIAL] 50 W
Push [F-5].
TX POWER & POWER
METER SETTING
2 • Display: "POWER HF"
• Receiving
Push [F-5]. (Automatically starts
to transmit.)
Push [F-5].
3 • Display: "POWER HF Min"
• Transmitting
[ANT1] [MAIN DIAL] 1.5 W
Push [F-5].
4 • Display: "POWER HF 10%"
• Transmitting
10 W
Push [F-5].
5 • Display: "POWER HF Tuner"
• Transmitting
10 W
Push [F-5].
6 • Display: "POWER HF 50%"
• Transmitting
50 W
Push [F-5].
7 • Display: "POWER HF 75%"
• Transmitting
80 W
Push [F-5].
8 • Display: "POWER HF 100%"
• Transmitting
105 W
Push [F-5].
9 • Display: "POWER 50M"
• Receiving
Push [F-5]. (Automatically starts
to transmit.)
Push [F-5].
10 • Display: "POWER 50M Min"
• Transmitting
[ANT1] [MAIN DIAL] 1.5 W
Push [F-5].
11 • Display: "POWER 50M 10%"
• Transmitting
10 W
Push [F-5].
12 • Display:
"POWER 50M Tuner"
• Transmitting
10 W
Push [F-5].
13 • Display: "POWER 50M 50%"
• Transmitting
50 W
Push [F-5].
14 • Display: "POWER 50M 75%"
• Transmitting
80 W
Push [F-5].
15 • Display:
"POWER 50M 100%"
• Transmitting
100 W
Push [F-5].
POWER DOWN SETTING 16 • Display:
"POWER Down HF/50M"
• Transmitting
Push [F-5]. (Automatically starts
to transmit.)
[MAIN DIAL] 50 W
Push [F-5].
AM CARRYER POWER
RATIO
17 • Display:
"POWER AM Ratio HF"
• Transmitting
Push [F-5]. (Automatically starts
to transmit.)
[MAIN DIAL] 27 W
Push [F-5].
ID APC 18 • Display: "ID-APC"
• Receiving
1) Connect an ammeter to the
power supply line.
2) Push [F-5]. (Automatically starts
to transmit.)
Power
supply line
[MAIN DIAL] 23.5–24.0 A
Push [F-5].
ALC METER 19 • Display: "ALC HF/50M"
• Transmitting
Set the AG as;
Frequency : 1.5 kHz
Level : 10 mV
Push [F-5].
DRIVE GAIN 20 • Display: "DRIVE HF/50M"
• Transmitting
Push [F-5].
SWR METER 21 • Display: "SWR HF/50M"
• Transmitting
Push [F-5].
Automatically returns to the transmit adjustment menu.
¤
TRANSMIT ADJUSTMENTS
MENU
HF
TX
Reterns to the previous screen.
Stores the value and move to the next item.
Starts the transmit adjustment.
