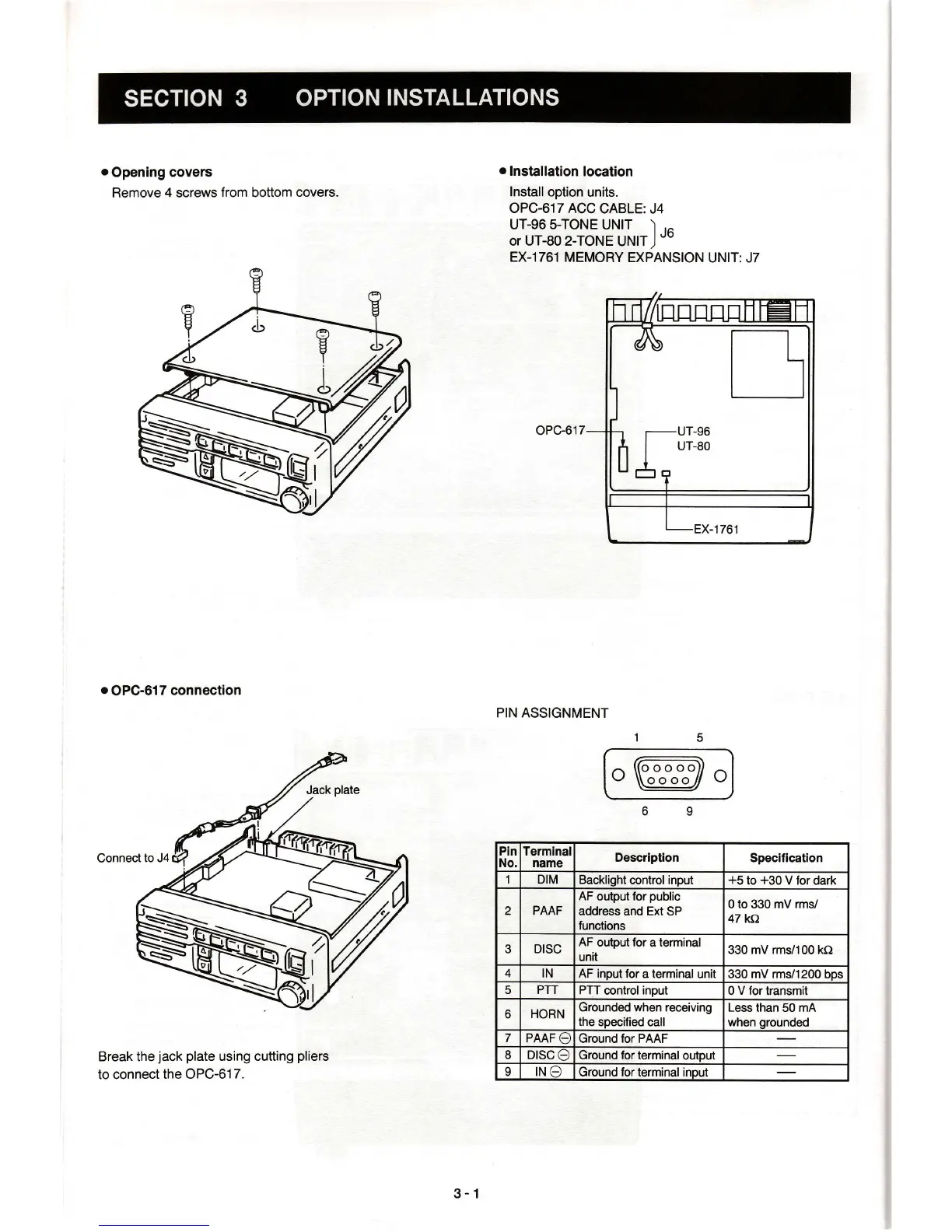

Opening covers
Remove
4
screws
from
bottom
covers.
o
OPC-617 connection
Connect
to J4
Break the
jack
plate
using cutting
pliers
to connect
the OPC-617.
o
Installation
location
Install
option units.
OPC-617 ACC
CABLE:J4
UT-96 s-TONE
UNIT
) .^
or UT-80 2-TONE
UNITJ
'ro
EX-1761 MEMORY
EXPANSION
UNIT:J7
oPc-617
PIN ASSIGNMENT
o@o
q'B
*sR:>
Pin
No.
Terminal
name
Description
Specification
1
DIM Backliqht
control input
+5
to
+30
V for dark
2 PAAF
AF output for
public
address
and Ext SP
functions
0 to
330
mV rms/
47
kA
3
Dtsc
AF
output for
a
terminal
unit
330 mV rms/100
kQ
4
IN AF
input for
a
terminal
unit 330 mV rms/1200
bps
5
PTT
PTT
control
input
0
V for transmit
o
HORN
Grounded when
receiving
the
specified
call
Less than
50 mA
when
grounded
7
PAAF
E] Ground for PAAF
8 Drsc
e)
Ground for terminal
outout
o
rN
e)
Ground for terminal inout
3-1
