3 - 1

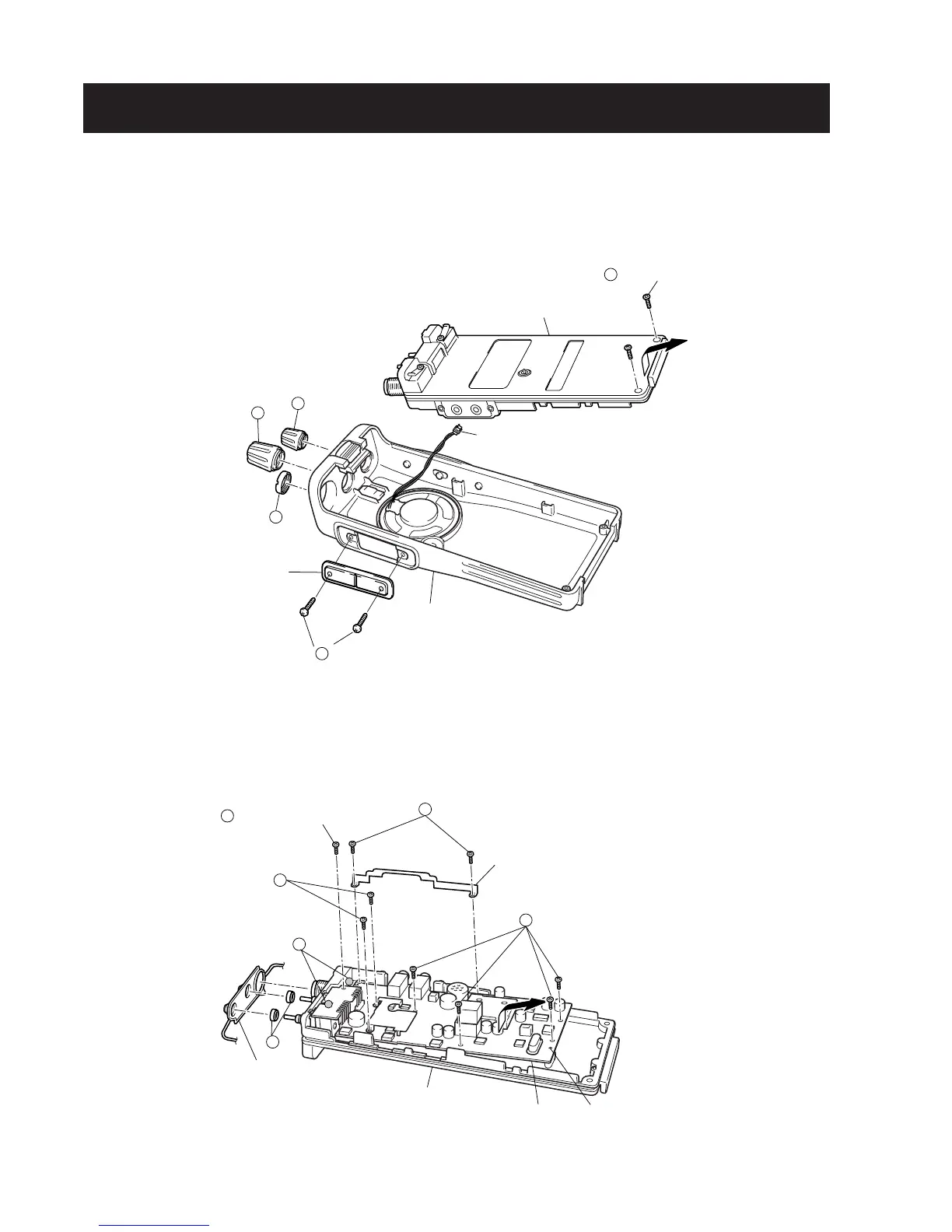

SECTION 3 DISASSEMBLY INSTRUCTIONS
REMOVING THE CHASSIS
¡ Unscrew 1 nut, A, and remove 2 knobs, B, C.
Unscrew 2 screws, D.
£ Unscrew 2 screws, H, to separate the Jack panel and the
Front panel.
¢ Take off the chassis in the direction of the arrow.
Unplug J6 to separate the front panel and the chassis.
REMOVING THE MAIN UNIT
¡ Remove the searing rubber.
Unsolder 2 points, E, and unscrew 2 nuts, F.
£ Unscrew 9 screws, G, (silver, 2mm) to separate the chassis and the MAIN unit.
¢ Take off the MAIN unit in the direction of the arrow.
Front panel
J6 (Speaker connector)
Jack panel
Chassis
C
B
(Black, 2mm) x 2
D
A
(Black, 2mm) x 2
H
Guide holes
MAIN unit
Sealing rubber
Chassis
E
F
Side plate
([F21S], [F21BR], [F22S] only)
G
G
G
G
