Icom IC-F2000 Service Manual

4-2

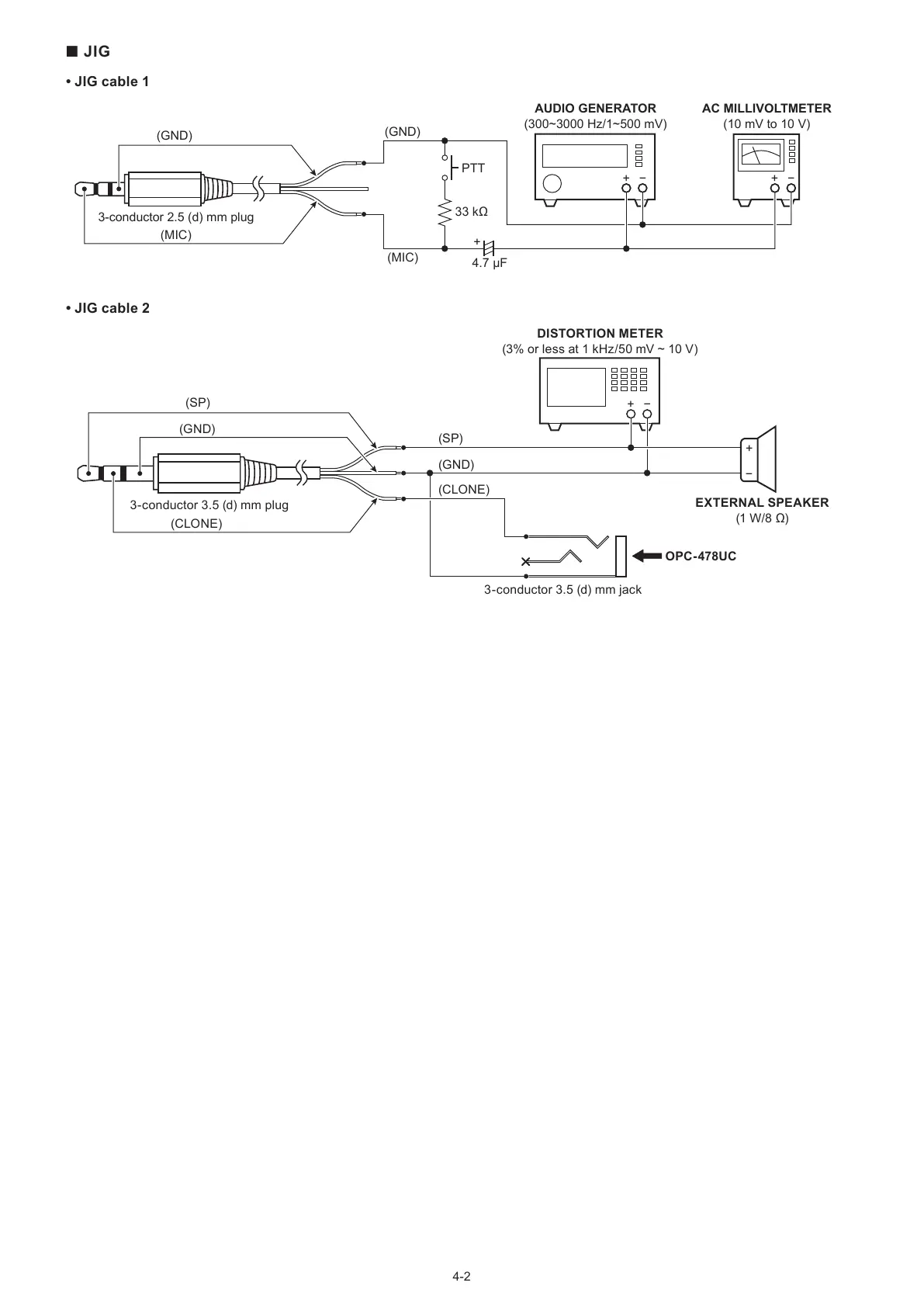

■ JIG
• JIG cable 1
3-conductor 2.5 (d) mm plug
(MIC)
(GND)
+ −
AC MILLIVOLTMETER
(10 mV to 10 V)
+ −
AUDIO GENERATOR
(300~3000 Hz/1~500 mV)
(MIC)
(GND)
33 kΩ
4.7 µF
+
PTT
• JIG cable 2
3-conductor 3.5 (d) mm plug
(GND)
(CLONE)
OPC-478UC
3-conductor 3.5 (d) mm jack
+ −
EXTERNAL SPEAKER
(1 W/8 Ω)
+
−
DISTORTION METER
(3% or less at 1 kHz/50 mV ~ 10 V)
(CLONE)
(GND)
(SP)
(SP)

Icom IC-F2000 Specifications

General

Frequency Range	136-174 MHz
Channels	128
Output Power	5W
Waterproof Rating	IP67
Number of Channels	128
Channel Spacing	12.5/25 kHz
Mode	FM
Weight	240g with BP-279
