SECTION 4 ADJUSTMENT PROCEDURE
4-1 PREPARATION
■ REQUIRED EQUIPMENT
EQUIPMENT GRADE AND RANGE EQUIPMENT GRADE AND RANGE
Programming
software
CS-F2000 PROGRAMMING
SOFTWARE (Revision 1.31 or later)
Programming cable OPC-478UC
DC power supply
Output voltage: 7.5 V
Current capacity: More than 2 A
Standard signal
generator (SSG)
Frequency range: 0.1~600 MHz
Output level: −20 to 90 dBμ
(−127 to −17 dBm)
RF power meter
(50 Ω terminated)
Measuring range: 0.1~10 W
Frequency range: 100~600 MHz
SWR: Less than 1.2 : 1
AC millivoltmeter Measuring range: 10 mV to 10 V
Frequency counter
Range: 0.1~600 MHz
Accuracy: ±1 ppm or better
Modulation analyzer
Frequency range: 30~600 MHz
Measuring range: 0 to ±10 kHz
Distortion meter
Measuring accuracy: 3% or less at 1 kHz
Input level: 50 mV to 10 V
Attenuator
Attenuation: 30 dB or 40 dB
Capacity: More than 10 W
External speaker
Input impedance: 8 Ω
Rated input power: More than 1 W
Audio generator
(AG)
Frequency range: 300~3000 Hz
Output level: 1~500 mV
Ammeter Measuring range: 0 to 2 A
Spectrum analyzer Measuring range: Up to 3 GHz
■ SAVE THE PROGRAMMING DATA
• Adjusting the transceiver will change the programming setting.
• Before adjusting, save the programming data of the transceiver with the programming software.
★
After adjusting, write back the programming data.

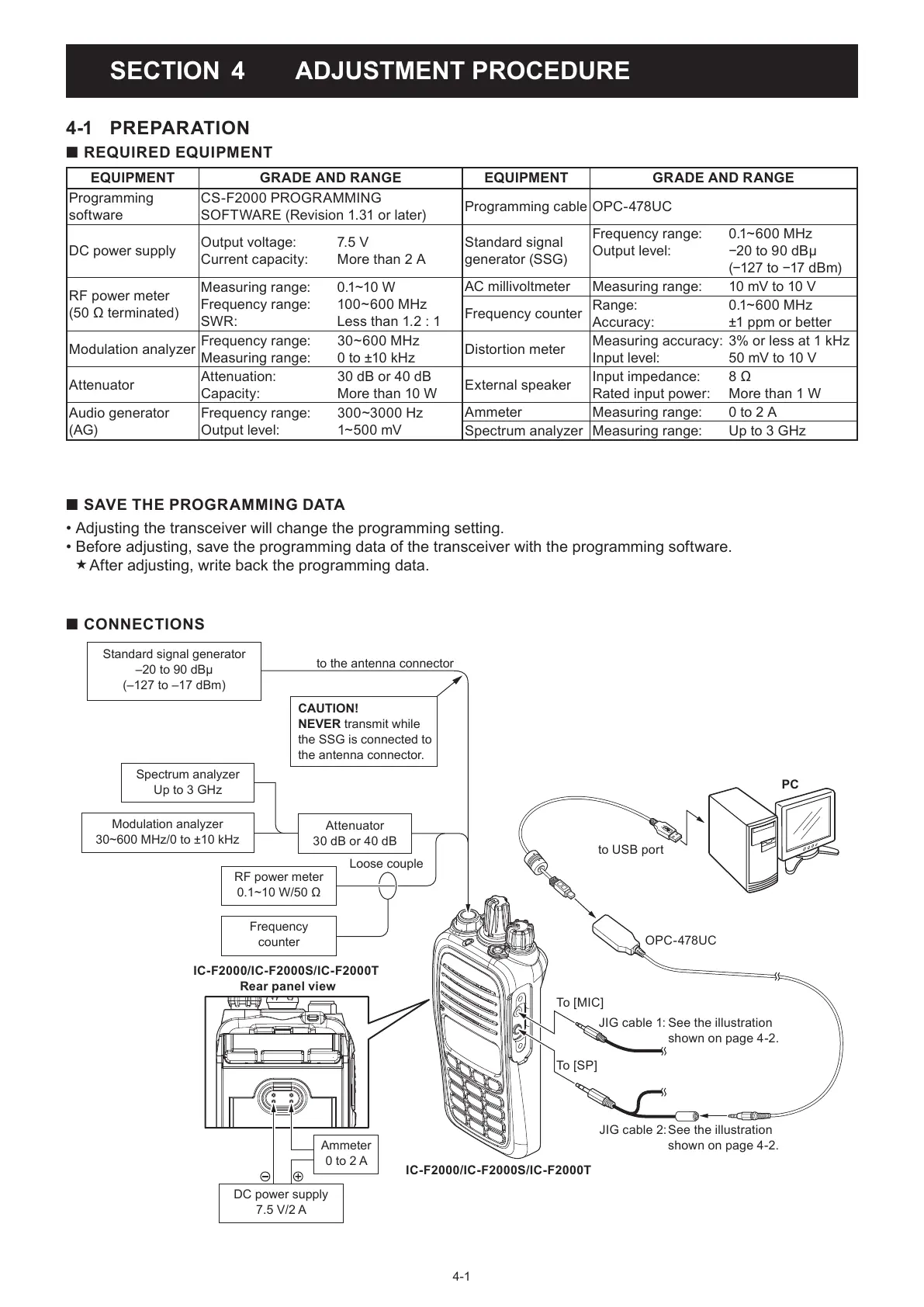

■ CONNECTIONS
IC-F2000/IC-F2000S/IC-F2000T
IC-F2000/IC-F2000S/IC-F2000T
Rear panel view
Modulation analyzer
30~600 MHz/0 to ±10 kHz
Spectrum analyzer
Up to 3 GHz
to the antenna connector
Frequency
counter
Standard signal generator
–20 to 90 dBµ
(–127 to –17 dBm)
Loose couple
Attenuator
30 dB or 40 dB
RF power meter
0.1~10 W/50 Ω
Ammeter
0 to 2 A
DC power supply
7.5 V/2 A
PC
to USB port
OPC-478UC
JIG cable 2:
JIG cable 1:
See the illustration
shown on page 4-2.
To [MIC]
To [SP]
See the illustration
shown on page 4-2.
CAUTION!
NEVER transmit while
the SSG is connected to
the antenna connector.
To Next Page
