4-11

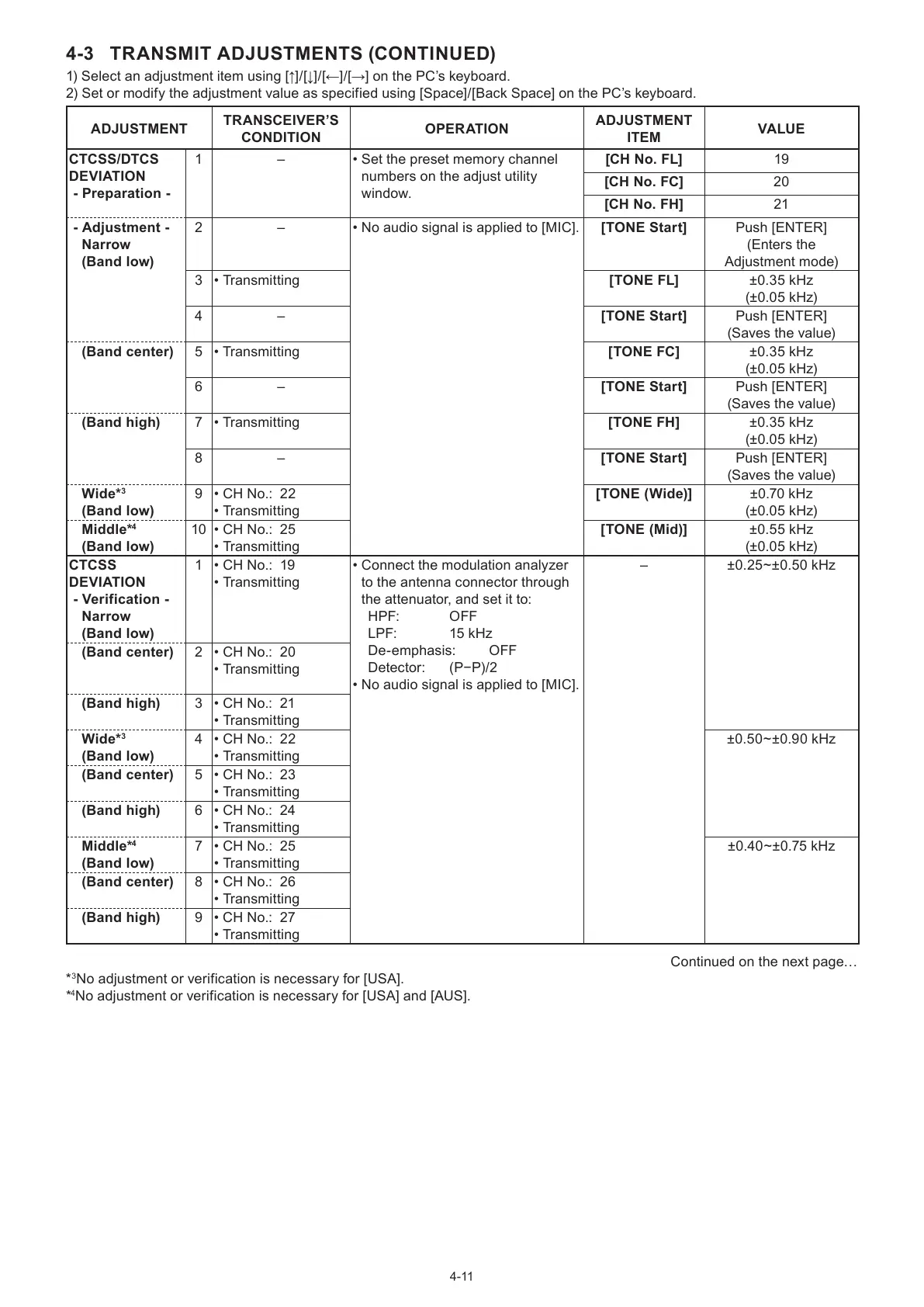

4-3 TRANSMIT ADJUSTMENTS (CONTINUED)
1) Select an adjustment item using [↑]/[↓]/[←]/[→] on the PC’s keyboard.
2) Set or modify the adjustment value as specified using [Space]/[Back Space] on the PC’s keyboard.
ADJUSTMENT
TRANSCEIVER’S
CONDITION
OPER ATION
ADJUSTMENT
ITEM
VALUE
CTCSS/DTCS
DEVIATION
- Preparation -
1 – • Set the preset memory channel
numbers on the adjust utility
window.
[CH No. FL] 19
[CH No. FC] 20
[CH No. FH] 21
- Adjustment -
Narrow
(Band low)
2 – • No audio signal is applied to [MIC]. [TONE Start] Push [ENTER]
(Enters the
Adjustment mode)
3 • Transmitting [TONE FL] ±0.35 kHz
(±0.05 kHz)
4 – [TONE Start] Push [ENTER]
(Saves the value)
(Band center) 5 • Transmitting [TONE FC] ±0.35 kHz
(±0.05 kHz)
6 – [TONE Start] Push [ENTER]
(Saves the value)
(Band high) 7 • Transmitting [TONE FH] ±0.35 kHz
(±0.05 kHz)
8 – [TONE Start] Push [ENTER]
(Saves the value)
Wide*
3
(Band low)
9 • CH No.: 22
• Transmitting
[TONE (Wide)] ±0.70 kHz
(±0.05 kHz)
Middle*
4
(Band low)
10 • CH No.: 25
• Transmitting
[TONE (Mid)] ±0.55 kHz
(±0.05 kHz)
CTCSS
DEVIATION
- Verification -
Narrow
(Band low)
1 • CH No.: 19
• Transmitting
• Connect the modulation analyzer
to the antenna connector through
the attenuator, and set it to:
HPF: OFF
LPF: 15 kHz
De-emphasis: OFF
Detector: (P−P)/2
• No audio signal is applied to [MIC].
– ±0.25~±0.50 kHz
(Band center) 2 • CH No.: 20
• Transmitting
(Band high) 3 • CH No.: 21
• Transmitting
Wide*
3
(Band low)
4 • CH No.: 22
• Transmitting
±0.50~±0.90 kHz
(Band center) 5 • CH No.: 23
• Transmitting
(Band high) 6 • CH No.: 24
• Transmitting
Middle*
4
(Band low)
7 • CH No.: 25
• Transmitting
±0.40~±0.75 kHz
(Band center) 8 • CH No.: 26
• Transmitting
(Band high) 9 • CH No.: 27
• Transmitting
Continued on the next page…
*
3
No adjustment or verification is necessary for [USA].
*
4
No adjustment or verification is necessary for [USA] and [AUS].
