Icom IC-F2000 Service Manual

4-12

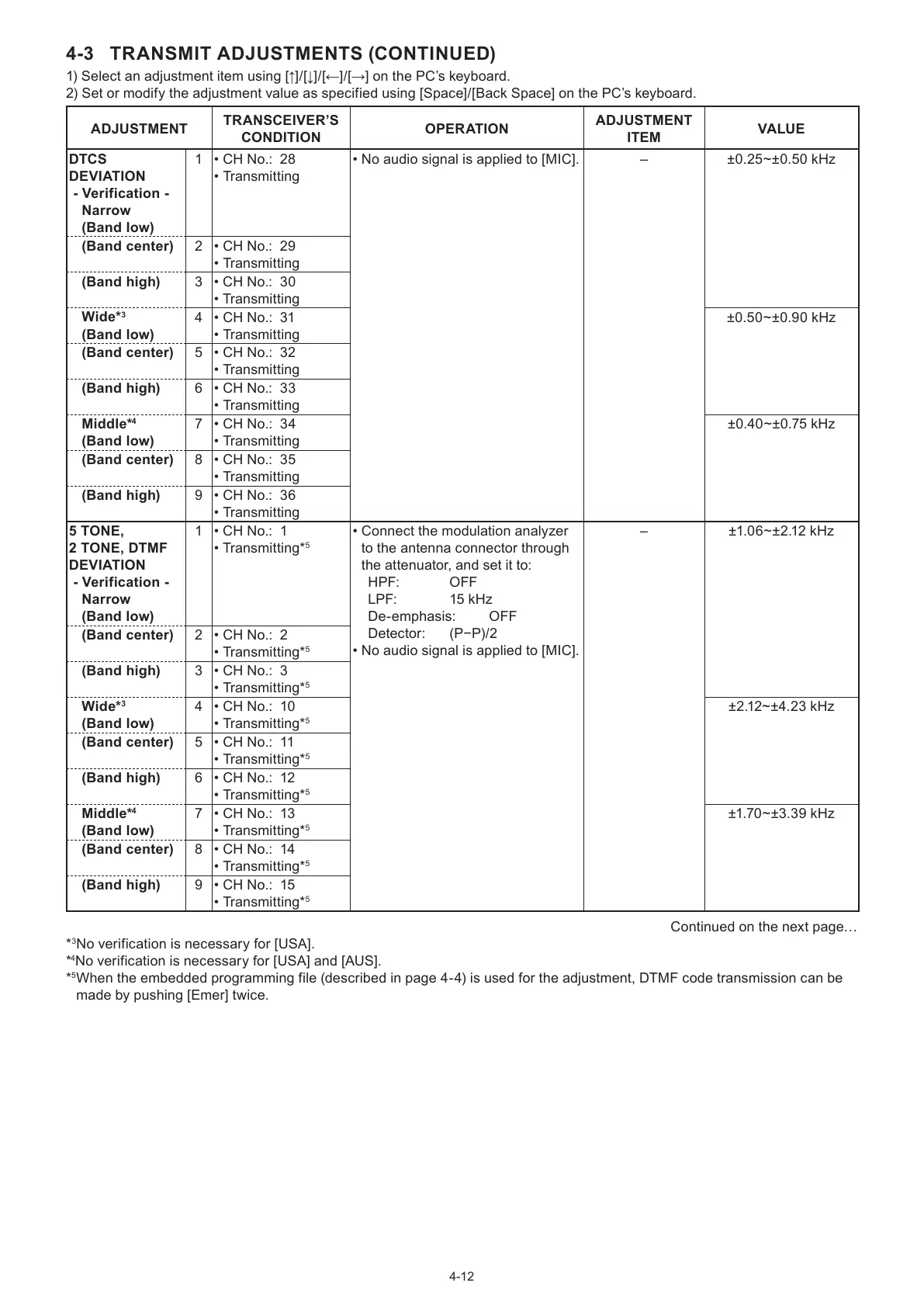

4-3 TRANSMIT ADJUSTMENTS (CONTINUED)
1) Select an adjustment item using [↑]/[↓]/[←]/[→] on the PC’s keyboard.
2) Set or modify the adjustment value as specified using [Space]/[Back Space] on the PC’s keyboard.
ADJUSTMENT
TRANSCEIVER’S
CONDITION
OPER ATION
ADJUSTMENT
ITEM
VALUE
DTCS
DEVIATION
- Verification -
Narrow
(Band low)
1 • CH No.: 28
• Transmitting
• No audio signal is applied to [MIC]. – ±0.25~±0.50 kHz
(Band center) 2 • CH No.: 29
• Transmitting
(Band high) 3 • CH No.: 30
• Transmitting
Wide*
3
(Band low)
4 • CH No.: 31
• Transmitting
±0.50~±0.90 kHz
(Band center) 5 • CH No.: 32
• Transmitting
(Band high) 6 • CH No.: 33
• Transmitting
Middle*
4
(Band low)
7 • CH No.: 34
• Transmitting
±0.40~±0.75 kHz
(Band center) 8 • CH No.: 35
• Transmitting
(Band high) 9 • CH No.: 36
• Transmitting
5 TONE,
2 TONE, DTMF
DEVIATION
- Verification -
Narrow
(Band low)
1 • CH No.: 1
• Transmitting*
5
• Connect the modulation analyzer
to the antenna connector through
the attenuator, and set it to:
HPF: OFF
LPF: 15 kHz
De-emphasis: OFF
Detector: (P−P)/2
• No audio signal is applied to [MIC].
– ±1.06~±2.12 kHz
(Band center) 2 • CH No.: 2
• Transmitting*
5
(Band high) 3 • CH No.: 3
• Transmitting*
5
Wide*
3
(Band low)
4 • CH No.: 10
• Transmitting*
5
±2.12~±4.23 kHz
(Band center) 5 • CH No.: 11
• Transmitting*
5
(Band high) 6 • CH No.: 12
• Transmitting*
5
Middle*
4
(Band low)
7 • CH No.: 13
• Transmitting*
5
±1.70~±3.39 kHz
(Band center) 8 • CH No.: 14
• Transmitting*
5
(Band high) 9 • CH No.: 15
• Transmitting*
5
Continued on the next page…
*
3
No verification is necessary for [USA].
*
4
No verification is necessary for [USA] and [AUS].
*
5
When the embedded programming file (described in page 4-4) is used for the adjustment, DTMF code transmission can be
made by pushing [Emer] twice.

Icom IC-F2000 Specifications

General

Frequency Range	136-174 MHz
Channels	128
Output Power	5W
Waterproof Rating	IP67
Number of Channels	128
Channel Spacing	12.5/25 kHz
Mode	FM
Weight	240g with BP-279
