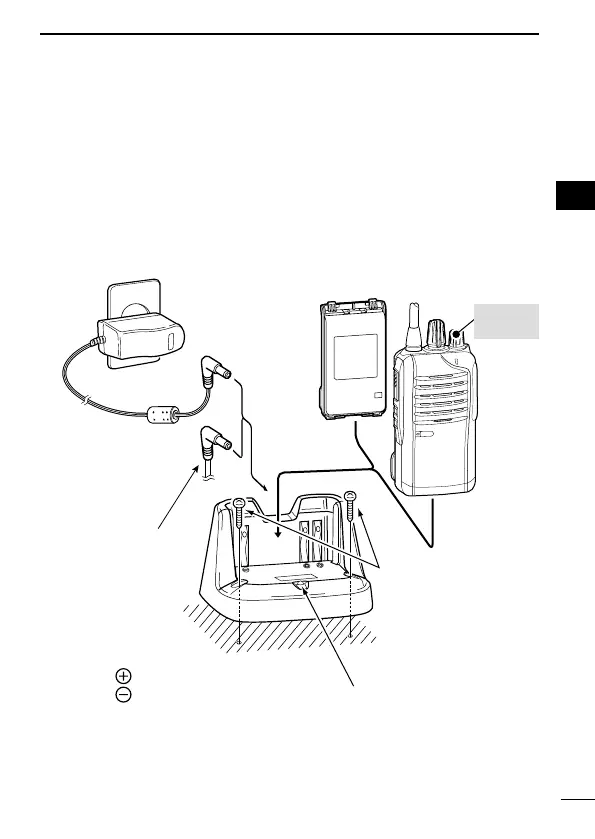

D Using the BC-193 to rapid charge the BP-265
The BC-193 provides rapid charging of only the BP-265 Li-ion bat-
tery pack. Never use it for any other battery pack.
ChargingtimeperiodfortheBP-265:Approximately2.5hours
Thefollowingitemisadditionallyrequired:AnACadapter(notsup-
plied with some versions), OPC-515L
d c p o w e r c a b l e or CP-23L
c i g a r e t t e l i g h t e r c a b l e .
Status indicator
• Lights orange:
While charging.
• Lights green:
Charging is completed.
AC adapter
(A different type,
or no AC adapt-
er is supplied,
depending on
the version.)
OPC-515L polarity
White line:
Black line
:
CAUTION: NEVER connect the
OPC-515L to a power source
using reverse polarity. This will
ruin the battery charger.
*
Battery packTransceiver
Tu rn OFF
the power
Optional OPC-515L*
(for a power source) or
CP-23L (for 12 V ciga-
rette lighter socket)
can be used instead
of the AC adapter.
Screws*
(Selftappingscrew:M3.5
× at least 30 mm)
*Purchase separately.
Using screws is recom-
mended to secure the
charger.
