Icom IC-F3161 Series - Page 27

22
4
BATTERY CHARGING
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

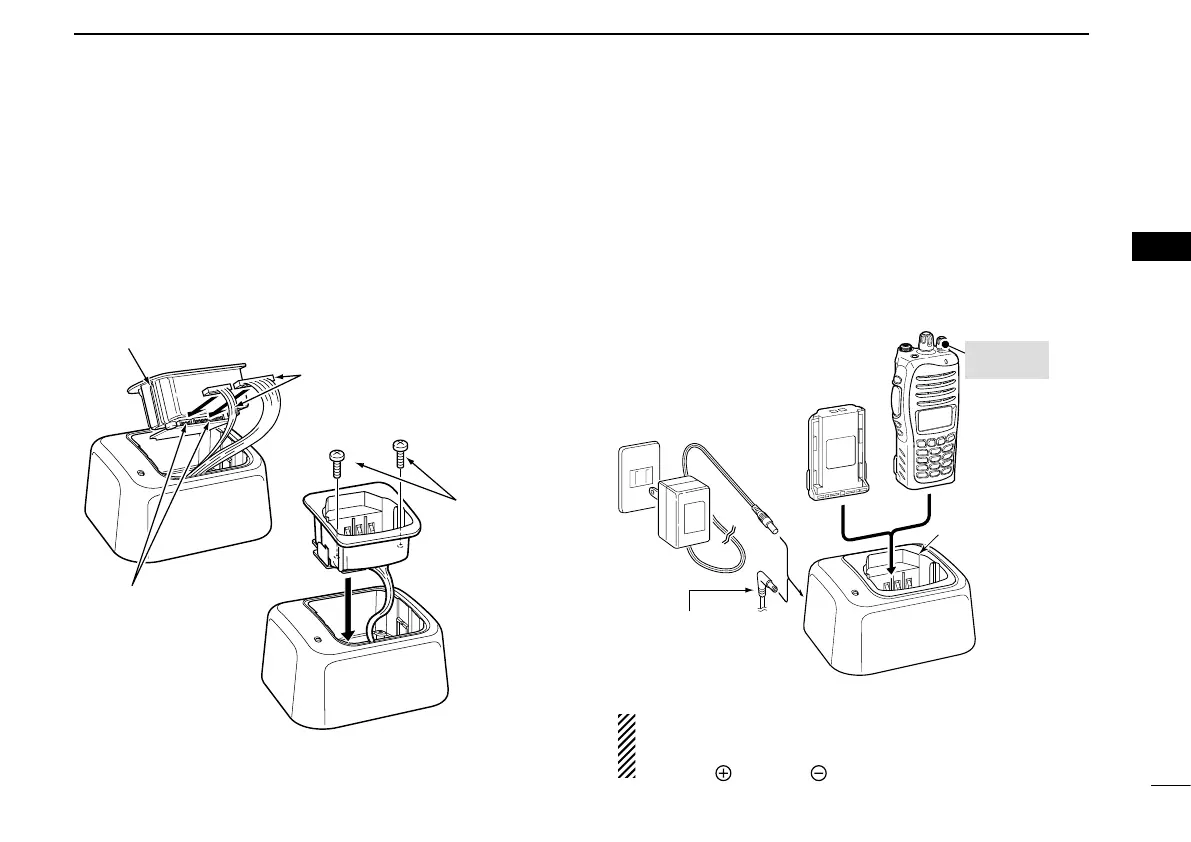

D AD-106 installation
The AD-106 c h a r g e r a d a p t e r must be installed into the BC-
119N or BC-121N before battery charging.
q Connect the AD-106
c h a r g e r a d a p t e r and the BC-119N/
BC-121N.
w Install the AD-106 into the holder space of the BC-119N/
BC-121N with the supplied screws.
Screws supplied
with the charger
adapter
AD-106
Plugs
Sockets
This illustration shows
the BC-119N.
D Rapid charging with the BC-119N+AD-106
The optional BC-119N provides rapid charging of the Li-ion
battery pack.
Charging period: Approximately 3 hours (with BP-232H)
The following items are additionally required.
• AD-106
c h a r g e r a d a p t e r (purchase separately)
• An AC adapter (may be supplied with BC-119N depending
on version) or the DC power cable (OPC-515L/CP-23L).
AC adapter
(A different type, or no AC
adapter is supplied, de-
pending on the version.)
Optional OPC-515L* (for
13.8 V power source) or
CP-23L (for 12 V cigarette
lighter socket) can be used
instead of the AC adapter.
CAUTION: NEVER connect the OPC-
515L to a power source using reverse
polarity. This will ruin the battery charger.
White line: Black line
:
*
Transceiver
Battery
pack
AD-106 charger
adapter is installed
in BC-119N.
Tu rn power
OFF
