BATTERY CHARGING
23
D Rapid charging with the BC-121N+AD-106
The optional BC-121N allows up to 6 battery packs to be
charged simultaneously.
Charging period: Approximately 3 hours (with BP-232H)
The following items are additionally required.
• Six AD-106
c h a r g e r a d a p t e r s (purchase separately)
• An AC adapter or the DC power cable (OPC-656)

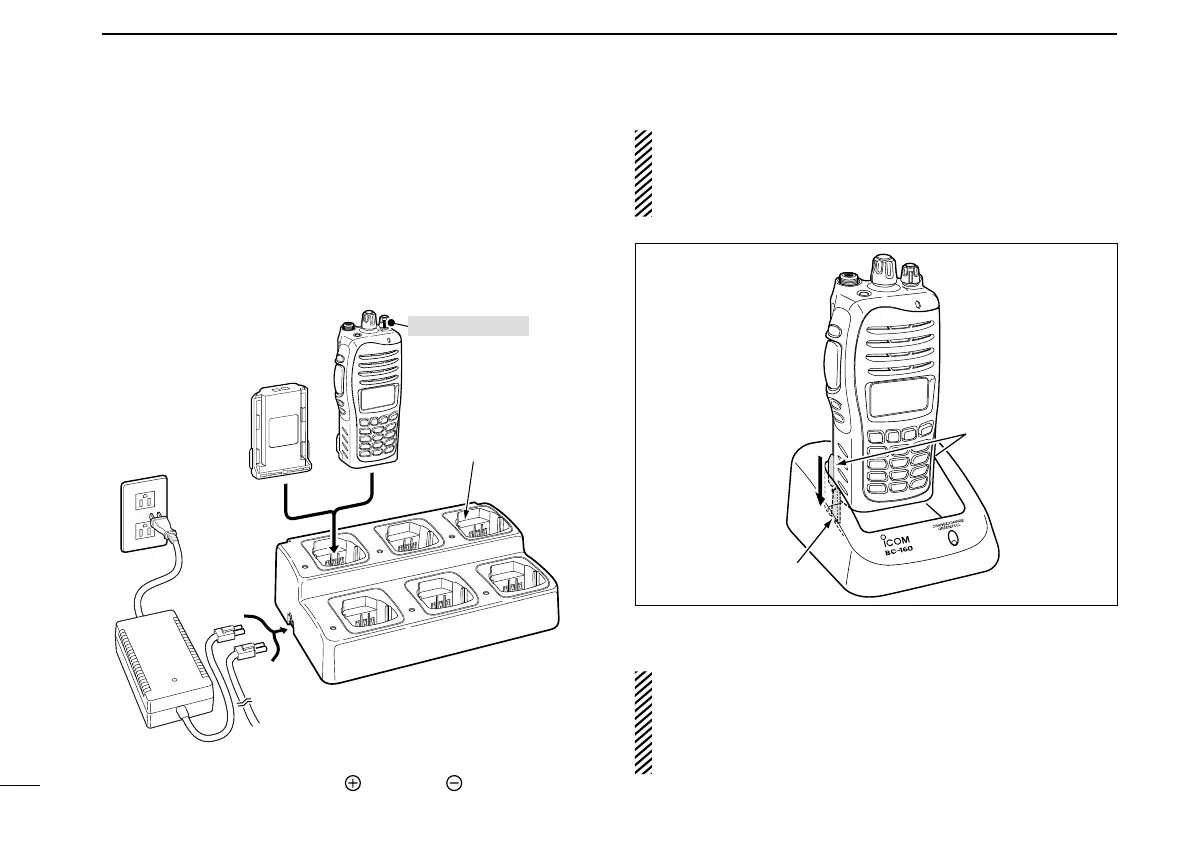

Transceiver
Battery
pack
AD-106 charger
adapters are installed
in each slot.
AC adapter
(Purchased
separately)
Tu rn power OFF
DC power cable (OPC-656*)
(Connect with a DC power supply;
13.8 V/at least 7 A)
*About the OPC-656
Red line : Black line :
IMPORTANT: Battery charging caution
Ensure the guide tabs on the battery pack are correctly
aligned with the guide rails inside the charger adapter.
(This illustration is described with the BC-160.)
CAUTION:
When using the OPC-656 DC power cable
NEVER reverse the polarity when connecting the OPC-
656 to a power source. This will ruin the battery charger.
OPC-656 : Red line: +, Black line: _
To Next Page
