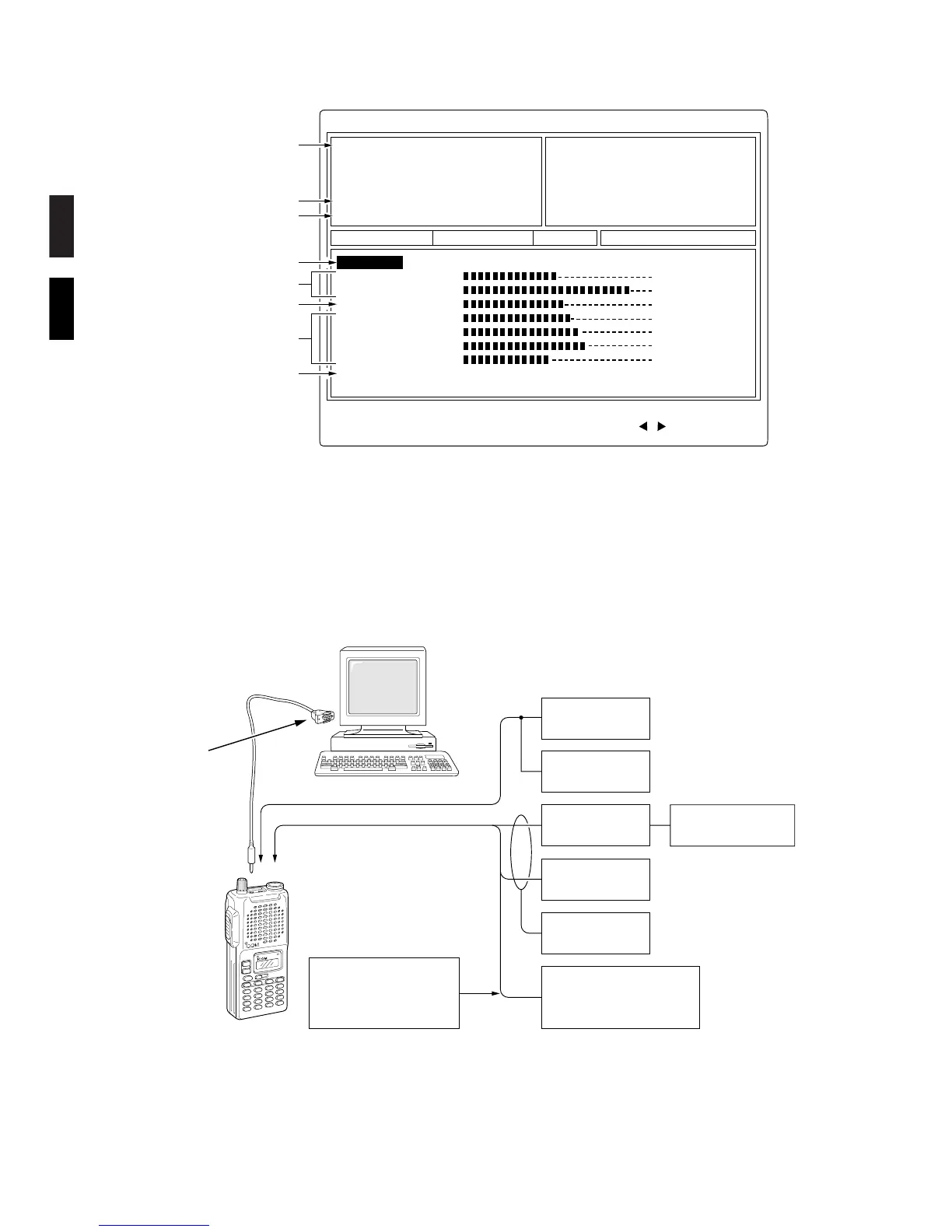

• SCREEN DISPLAY EXAMPLE
• CONNECTIONS
NOTE:
The above values for settings are examples only. Each transceiver has its
own specific values for each setting.
*
DO NOT change the value when adjusting the IC-F4/S. A value of 80 is
necessary for the IC-F4/S.
Memory CH : 1
Power(Lo) : 72
Power(Hi) : 142
MOD : 80
BPF 1 : 2
BPF 2 : 54
BPF 3 : 92
BPF 4 : 4
TXF SET :
***** Trimmer Control Software for IC–F3 Series *****
A/D 1 (VIN) 171 : ABh 10.729V
A/D 2 (REMOTE) 255 : FFh 5.000V
A/D 3 (SD) 54 : 36h 1.059V
A/D 4 (ISENS) 177 : B1h 2.314V
A/D 5 (TEMPS) 186 : BAh 30.353'C
A/D 6 (LVIN) 108 : 6Ch 4.300V
D/A 1 (REF) 120 : 78h 2.353V
D/A 2 (MODE) 131 : 83h 2.569V
D/A 3 (T1) 192 : C0h 3.765V
D/A 4 (T2) 198 : C6h 3.882V
D/A 5 (T3) 204 : CCh 4.000V
D/A 6 (T4/PWR) 114 : 72h 2.235V
RX:174.00000MHz TX:174.00000MHz
Base Freq : 174.00000MHzPWR : High
[TAB] : Display Parameters [F8] at BPF : Sweep [F9] at BPF : Sweep T1~T4
[Enter] at TXF : REF Set Mode ↑ / ↓ : Cursor Up/Down / : +/– ESC : Quit
PLL lock voltage
Internal temperature
Operating channel
RF output power
FM deviation*
Receive sensitivity
Reference frequency
Connected battery voltage
to an RS-232C port
Personal
computer
OPC-478
to the antenna connector
to [MIC]
Audio generator
RF power meter
10 W / 50 Ω
Frequency
counter
Standard signal generator
0.1 µV to 32 mV
(–127 dBm to –17 dBm)
AC millivoltmeter
DB9 female plug
(incl. level converter circuit)
CAUTION:
DO NOT transmit while
SSG is connected to the
antenna connector.
Attenuator
40 dB or 50 dB
FM deviation meter
