MAINTENANCE
24
9
CLONING
23
8
‘‘
Optional UT-96/ UT-105/ UT-108/ UT-109/
UT-110/ UT-111 and UT-113 installation
You can install one of the following optional signaling units in the
transceiver. UT-96
2TONE/5TONE
UNIT, UT-105 SmarTrunk
(TM)
Logic
Board, UT-108 DTMF DECODER UNIT
, UT-109/ UT-110 SCRAM-
BLER UNIT
, UT-111
TRUNKING BOARD or UT-113 MAN DOWN
UNIT
.

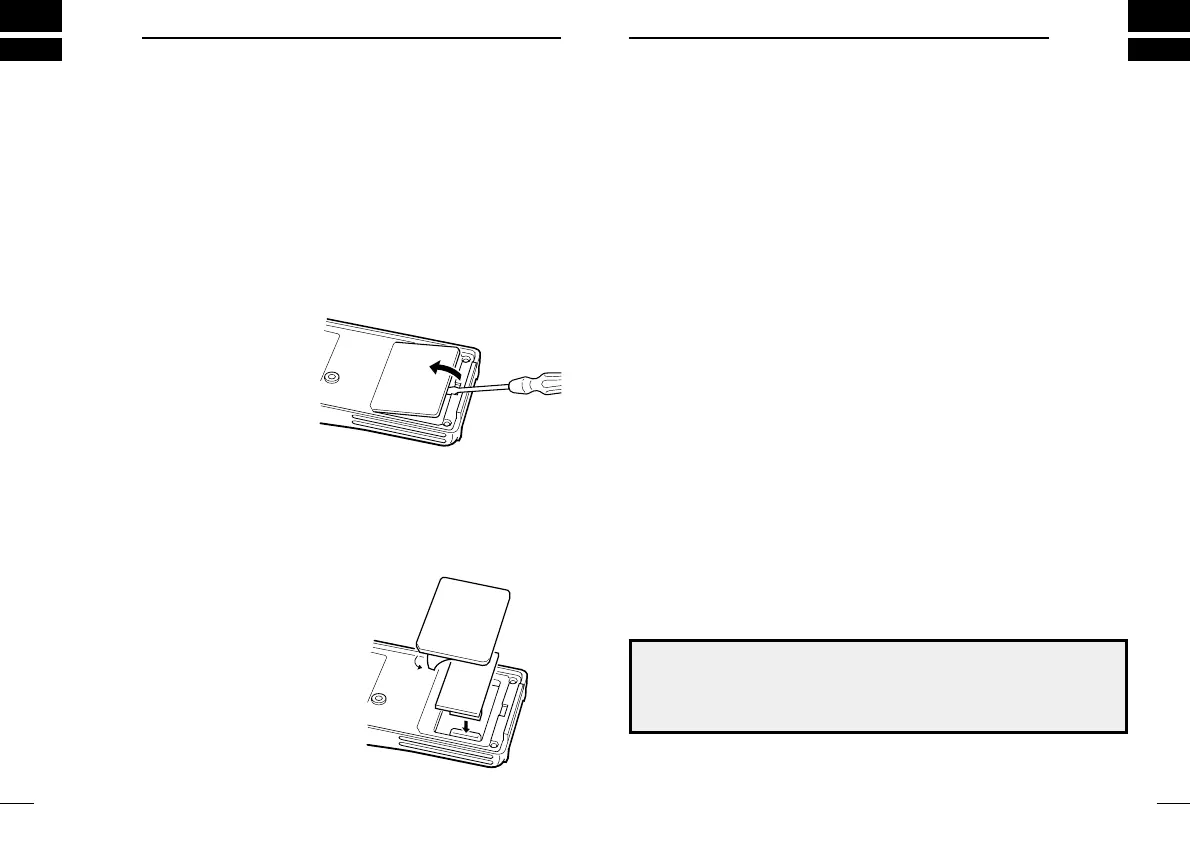

q Remove the optional connecter access cover (named 2251 OPT
sheet).
•
Insert a screwdriver into the
hollow of the chassis, then lift
and take away the cover.
(The cover can not be used
again.)
w Attach the desired optional unit. Insert the connector tightly to
avoid a bad contact.
e Remove the paper backing of 2251 OPT sheet supplied as an
accessory.
r Attach the new 2251 OPT sheet to the service window.
t Program the necessary infor-
mation with the cloning soft-
ware before operation.
Please ask your dealer or
system operator for details.
w
e
r
q
‘‘
Cloning
Cloning allows you to quickly and easily transfer the programmed
contents from one transceiver to another transceiver; or data from
PC to a transceiver using the optional CS-F3G
CLONING SOFT-
WARE.
DD
Transceiver-to-transceiver cloning
q Connect the optional OPC-474 CLONING CABLE with adapter
plugs to the [SP] jack of the master and slave transceivers.
• The master transceiver is used to send data to the slave trans-
ceiver.
w While pushing [P0] and [
YY
], turn the transceiver’s power on to
enter cloning mode (For both the master transceiver and slave
transceiver).
•
“CLONE” appears and the transceiver enters the clone standby
condition.
e Push [PTT] on the master transceiver.
•
“CLOUT” appears in the master transceiver’s display.
• “CL IN” appears automatically in the slave transceiver’s display.
• When cloning is finished, “CLONE” appears in the master trans-
ceiver’s display.
NOTE: DO NOT push the [PTT] on the slave transceiver during
cloning. This will cause a cloning error.
r When cloning is finished, turn power off, then on again to return
to normal operation.
• While pushing [P3] and [
YY
], turn the transceiver’s power on to enter
CPU version check mode. CPU revision is displayed (“100CH” display
for 100CH version only).
NOTE: Transceiver-to-transceiver cloning can not be done
between 40CH version and 100CH version, or CPU Rev.1.
✻
and Rev.2.0.
