Icom IC-F4GS User Manual

1 2
1

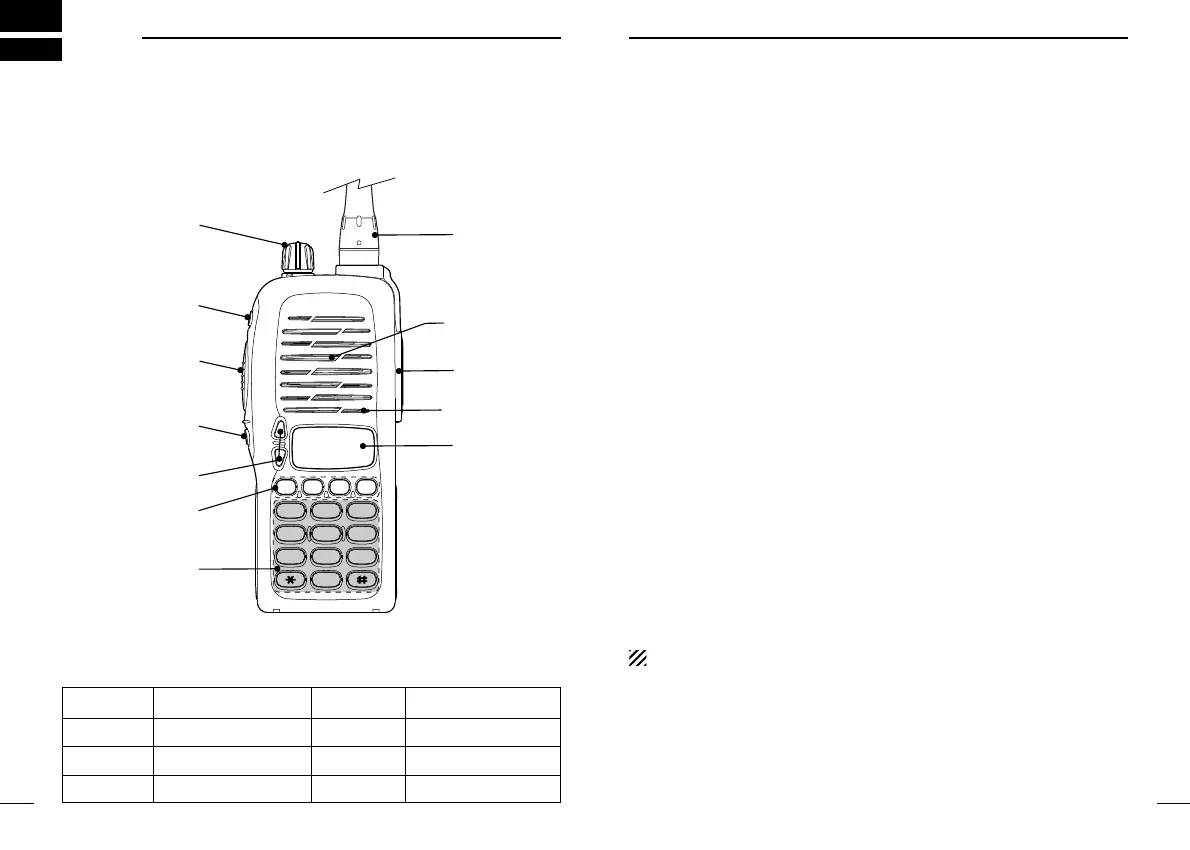

PANEL DESCRIPTION
PANEL DESCRIPTION
1
q VOLUME CONTROL [OFF/VOL]
Turns power ON and adjusts the audio level.
w DEALER-PROGRAMMABLE KEY [S1 (Red)]
e PTT SWITCH [PTT]
Push and hold to transmit; release to receive.
r DEALER-PROGRAMMABLE KEY [S2(Black)]
t UP/DOWN KEYS [
YY
]/[
ZZ
]
• Push to select the operating channel.
• Can be programmed as [ M ]/[ # ]. (SmarTrunk mode only)
y DEALER-PROGRAMMABLE KEYS [P0]/[P1]/[P2]/[P3]
Can each be programmed for one of several functions by your
Icom Dealer.
u 10-KEY PAD (IC-F3GT/IC-F4GT only)
Used to enter DTMF codes, the operating channel, etc.
i ANTENNA CONNECTOR
Connects the supplied antenna.
o [SP]/[MIC] JACK
Connect optional speaker-microphone.
!0 FUNCTION DISPLAY
Displays the following information:
• CH number.
• 5-tone indication.
• Low-battery indication.
• DTMF numbers.
• Low-power indication.
• Skip-Ch indication.
• Audible indication.
NOTE: Above functions depend on pre-setting.
‘‘
Switches, controls, keys and connectors
2
3
4
5
6
789
0
1
P0
P1
P2 P3
q
w
e
r
t
y
u
!0
i
o
Speaker
Mic
S1 (Red)
S2 (Black)
YY
ZZ
P0
P1
P2
P3
DD
Programmable key reference
