INSTALLATION AND CONNECTIONS

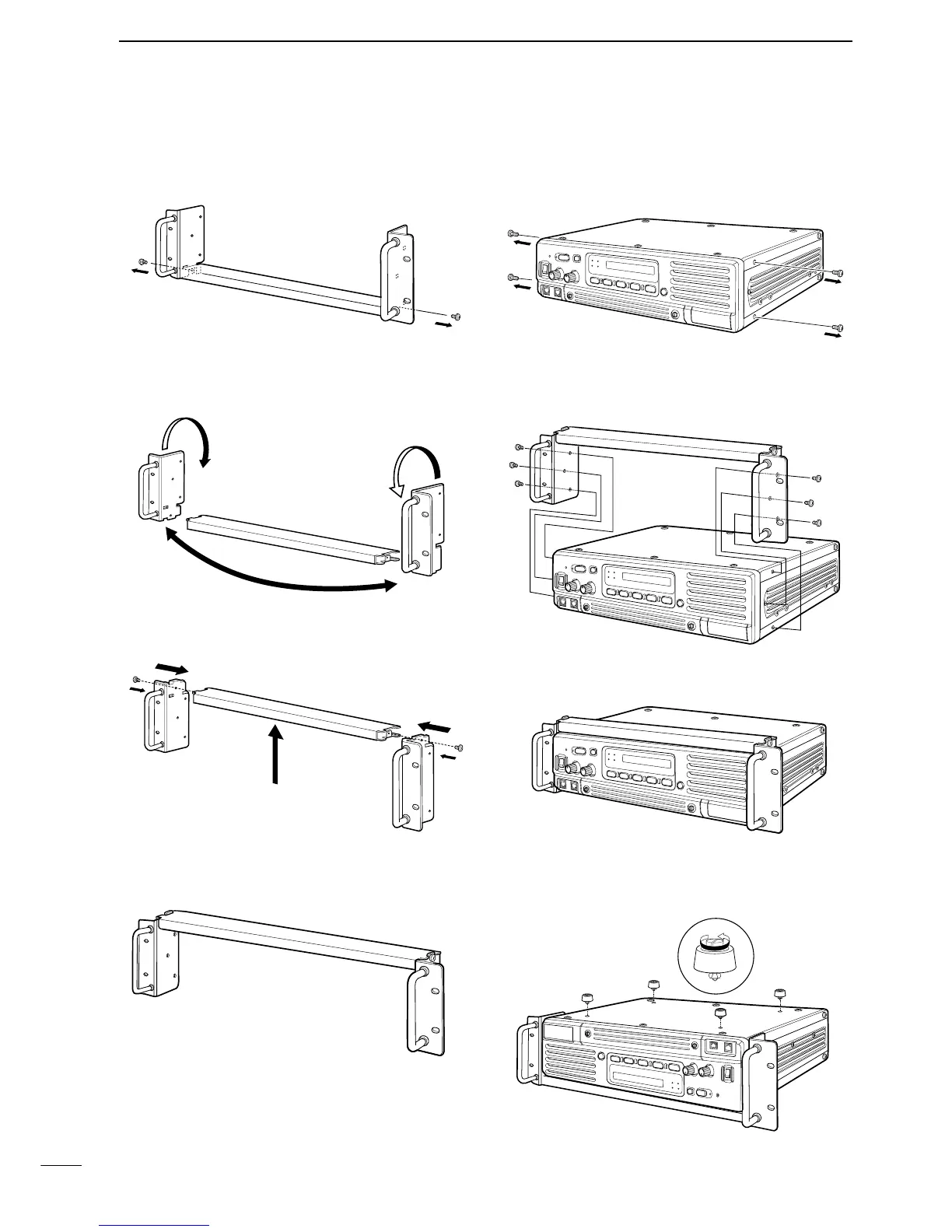

• Top side installation
q Remove the 1 screw (M4 × 8) from both side of the
MB-78.
w Remove the handles from bottom bar. And turn the
handles upside down, then replace the handles
right side and left side.
e Attach the handles to the bar, then tighten the
screws.
r The completed MB-78 should look like below.
t Remove the 2 screws (M4 × 8) from both side of
the side panel (front-end).
y Attach the MB-78 to the top side of the repeater.
Then tighten the 1 supplied screws (M4 × 8) and 2
removed screws to each side. (6 screws at total)
u The top side installation should look like below.
i Turn the repeater upside down, then removing the
4 legs for mounting the 19 inch rack.
To Next Page
