Icom IC-FR4000 - Page 61

9 - 11
to TX UNIT J5
W1
to TX UNIT J4
10
J2
M9V M9V TMUTE2 PCON PATEMP RVSWR FWSWR GND GND GND
1
PS 0V VCC1
to REG UNIT
EP7
EP2 EP1
to REG UNIT
EP8
TX ANT
W13
IC2
EP4
EP5
EP6
MP2

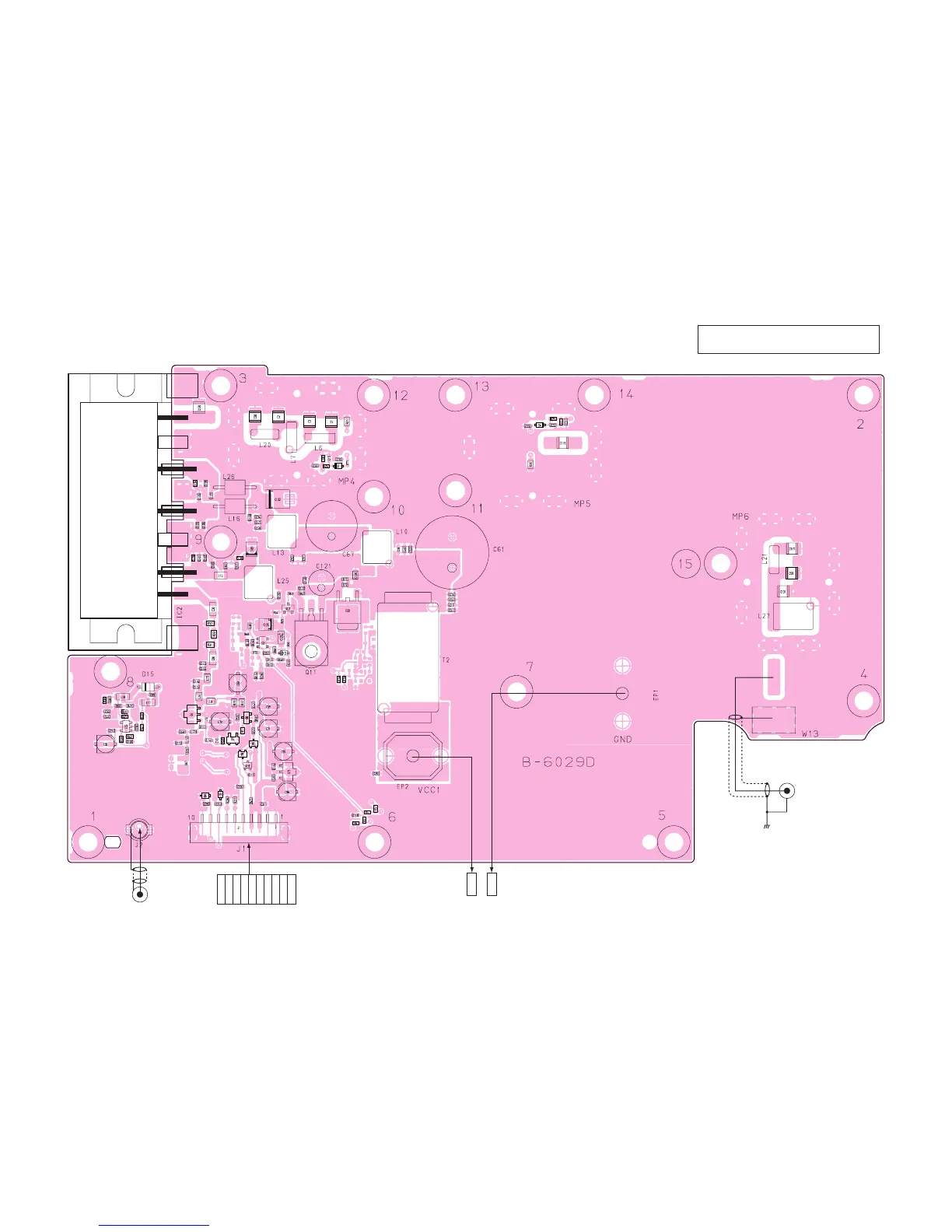

9 - 10 25PA UNIT [FR4100]
¡¡
TOP VIEW
The combination of this page and the next page shows
the unit layout in the same configuration as the actual
P. C. Board.
