Icom IC-M401E

62.5 (2
13
⁄32)
3 (
1
⁄8)
42 (1
21
⁄32)
5.5 (
7
⁄32)
88 (3
13
⁄32)
92.1 (3
5
⁄8)
Unit: mm (inch)

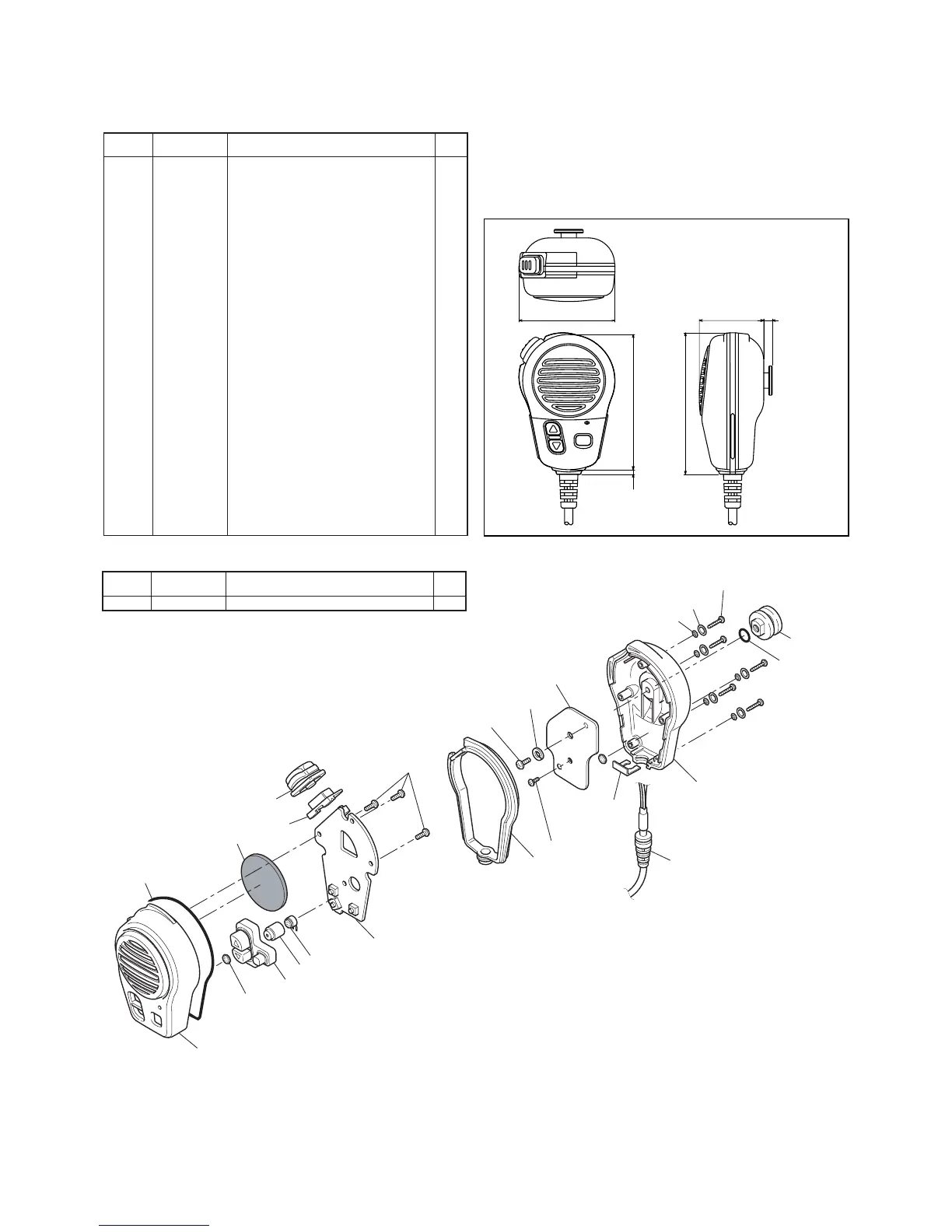

7-2 HM-132
W1 8900010610 Cable OPC-1081 [black] 1
8900010620 Cable OPC-1082 [white] 1
MP1 8210017950 2352 front panel (D)-1 [black] 1
8210017960 2352 front panel (E)-1 [white] 1
MP2 8210016850 2352 rear panel [black] 1
8210017110 2352 rear panel (A) [white] 1
MP3 8930052160 2352 key 1
MP4 8930052150 2352 PTT rubber 1
MP5 8930052140 2352 PTT holder 1
MP6 8930052690 2352 MIC rubber 1
MP7 8930052120 2352 rubber 1
MP8 8930052110 2352 main seal 1
MP9 8610010870 2352 hanger knob 1
MP10 8310048760 2352 R-plate 1
MP11 8310048780 2352 MIC plate 1
MP12 8820001150 2352 screw 5
MP13 8850001850 ICOM washer (Y) 5
MP14 8930052340 O-ring (AE) 5
MP15 8930052350 O-ring (AF) 1
MP16 8930056460 2449 MIC sheet 1
MP17 8930054910 2449 SP Rubber 1
MP18 8850001610 Spring washer M4 SUS 1
MP19 8810009260 Screw PH B0 2 × 6 NI (BT) 3
MP21 8810009240 Screw BiH M4 × 10 ZK 1
MP23 8810008900 Screw PH M3 × 6 NI 1
REF. NO.
[CHASSIS PARTS]
ORDER NO. DESCRIPTION QTY.
REF. NO.
MC1 7700002500 Microphone KUC3523-040245 1
[MAIN UNIT]
ORDER NO. DESCRIPTION QTY
.
Screw and washer abbreviations
B0, BT: Self-Tapping PH: Pan head
NI: Nickel SUS: Stainless
ZK: Black BiH: Bind head
MAIN UNIT
MP16 (C)
MP3 (C)
MP17 (C)
MP6 (C)
MP1 (C)
MC1 (M)
MP19 (C)
MP21 (C)
MP11 (C)
MP2 (C)
MP14 (C)
MP13 (C)
MP12 (C)
MP9 (C)
MP15 (C)
MP7 (C)
MP23 (C)
MP18 (C)
MP10 (C)
MP4 (C)
MP5 (C)
MP8 (C)
W1 (C)
UNIT abbreviations (C): CHASSIS PARTS, (M): MAIN UNIT
HM-132
7 - 3
