R1 7210002360 TP96N97N15F-10KB-1301 (incl. nut) 1
R 1 7210002350 TP96N97N15F-10KA-1301 (incl. nut) 1
W 1 8900010820 Cable OPC-1099 <CM1> 1
REF. NO. ORDER NO.
DESCRIPTION
QTY.
7 - 1

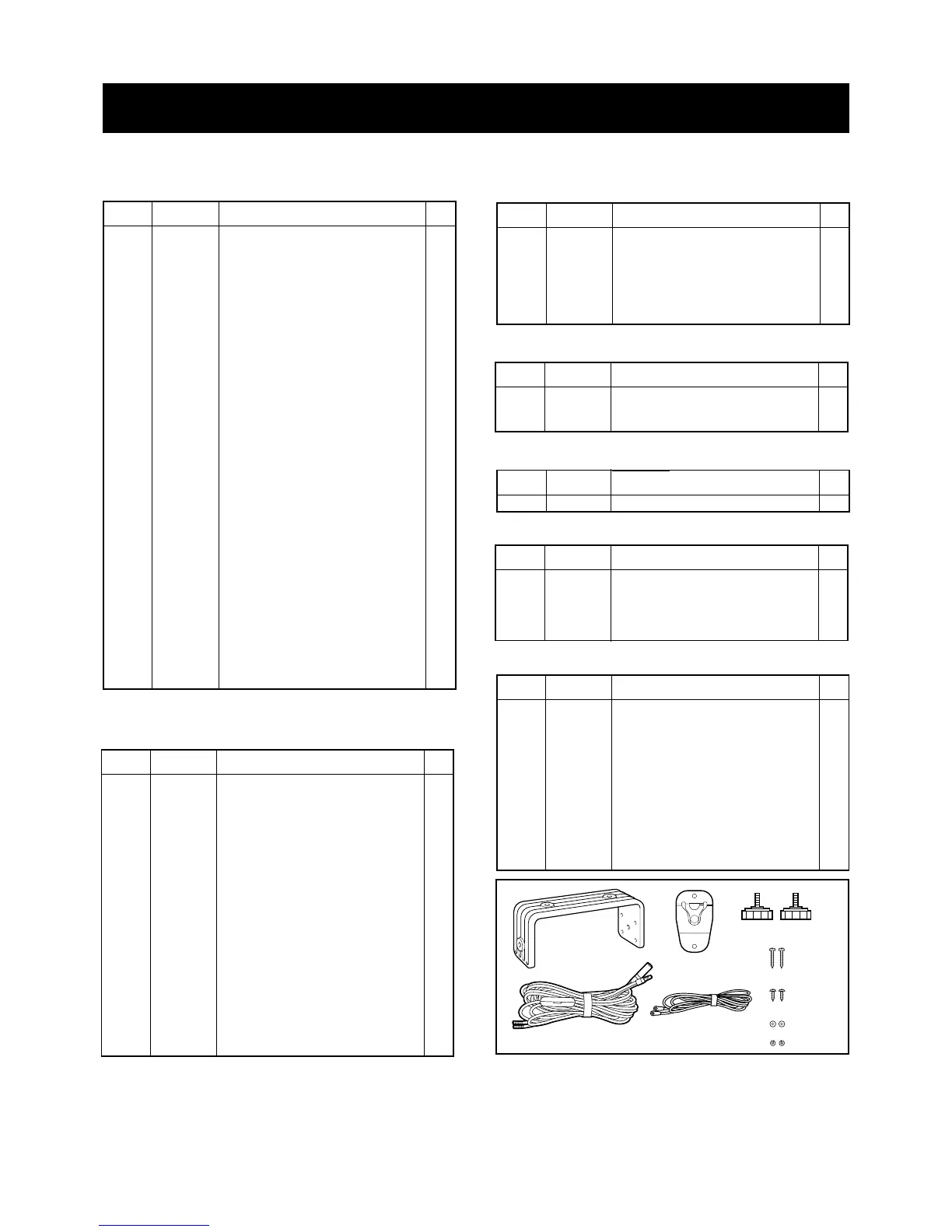

SECTION 7 MECHANICAL PARTS AND DISASSEMBLY
[CHASSIS PARTS]
REF. NO. ORDER NO.
DESCRIPTION
[LOGIC-E BOARD]
REF. NO.
ORDER NO.
DESCRIPTION
QTY.
[VR BOARD]
REF. NO.
ORDER NO.
DESCRIPTION
QTY.
[SQL BOARD]
[MAIN-E UNIT]
MP1 6910015690 2685 shield case 1
MP2 8510002280 VCO shield plate (A) FX 15 1
MP3 8930052271 Shield sponge (D)-1 1
MP4 8930005320 filter spacer 2
MP5 8510014180 2490 shield plate Y596 1
REF. NO. ORDER NO.
DESCRIPTION
QTY.
Screw abbreviations A0, B0, BT: Self-tapping
PH: Pan head
BiH: Bind head
NI: Nickel
SUS: Stainless
NI-ZU: Nickel-Zinc
[ACCESSORIES]
W 1 8900009040 Cable OPC-891 [black] 1
W 2 8900010770 Cable OPC-1097 [white] 1
MP1 8950005110 2289 MIC hanger 1
MP2 8010017250 2040 Mobile bracket [black] 1
8010017270 2040 Mobile bracket (A) [white] 1
MP3 8610010561 2040 Knob bolt-1 [black] 2
8610010591 2040 Knob bolt (A)-1 [white] 2
MP4 8810004700 Screw PH A0 M3 × 16 SUS 2
MP5 8810001490 Screw PH A0 M5 × 20 SUS 2
MP6 8850000180 Flat washer M5 SUS 2
MP7 8850000500 Spring washer M5 SUS 2
REF. NO. ORDER NO.
DESCRIPTION
QTY.
DS 1 5030001950 LCD TTR5341 1
EP 2 8930054970 LCD contact SRCN-2438-SP-N-W 2
MP1 8210017700 2438 reflector 1
MP2 8930054650 2438 LCD holder <KN> 1
MP3 8930055060 2438 white sheet 1
REF. NO. ORDER NO.
DESCRIPTION
QTY.
[FRONT UNIT]
7-1 IC-M401E
MC1 800006232 Microphone HM-132B-2 <KN> [black] 1
800006242 Microphone HM-132W-2 <KN> [white] 1
SP 1 2510001240 Speaker 045P0803 <FG> 1
W 3 8900010500 Cable OPC-1046 1
MP1 8210020680 2438 front panel (K) ASS'Y <KN> [black] 1
8210020690 2438 front panel (L) ASS'Y <KN> [white] 1
MP2 8310050810 2438 window plate <KN> 1
MP4 8930014280 Speaker net FX706 1
MP5 8110007580 2490 E-cover <KN> 1
MP10 8930055601 2438 key bord (A)-1 <KN> 1
MP21 8930052280 O-ring (AC) 2
MP22 8310051220 2438 C-bush plate <KN> 1
MP23 8930055840 2490 grounding spring 1
MP25 8810008660 Screw PH BT M3 × 8 NI-ZU 4
MP31 8610011060 TSUMAMI N286 Ass'y <KN> [black] 2
8610011070 TSUMAMI N286(A) Ass'y <KN> [white] 2
MP33 8610009240 Knob spring NO.7800P 2
J 1 6510004880 Connector MR-DS-E 01 1
W 1 8900010710 Cable OPC-1087 (nut, w/gasket) <LIA> 1
W 2 8900010491 Cable OPC-1041A 1
MP1 8510013960 2438 case Ass'y <KN> [black] 1
8510013970 2438 case (A) Ass'y <KN> [white] 1
MP4 8930055070 2438 sheet 1
MP5 8930054660 2438 R-packing 1
MP11 8010018473 2438 chassis-3 1
MP12 8930034300 1542 antennna seal 1
MP13 8810002950 Screw bind M3 × 6 SUS 2
MP14 8930054620 2438 B-bush plate<KN> 1
MP16 8510016000 2706 module plate Y701 1
MP17 8510011870 2040 module cover Y413 1
MP19 8810008660 Screw PH BT M3 × 8 NI-ZU 2
MP20 8950000180 Cable tie 80 2
MP22 8930052440 2345 B-IC CLIP 1
MP23 8810008660 Screw PH BT M3 × 8 NI-ZU 6
MP24 8950000180 Cable tie-80 1
MP25 8930055850 2490 grounding plate 1
MP26 8810008630 Screw PH BT M3 × 6 NI-ZU 1
MP27 6910008240 Clip 59TN4772 1
MP31 8510014070 2490 B-shield cover 1
MP32 8930056401 Shiled sponge (H)-1 1
MP33 8510014080 2490 A-shield cover 1
MP40 8810008680 Screw PH M3 × 8 NI 4
MP41 8930045280 Seal 2040 F-packing 1
MP42 8820001210 2438 screw 6
MP43 8930052290 Swal O-ring (AD) 6
MP45 8930055040 2438 cap <KN> 1
MP47 8930049040 Isolating sheet FQ 1
MP48 8930061410 2685 grounding spring Y699 1
QTY.
