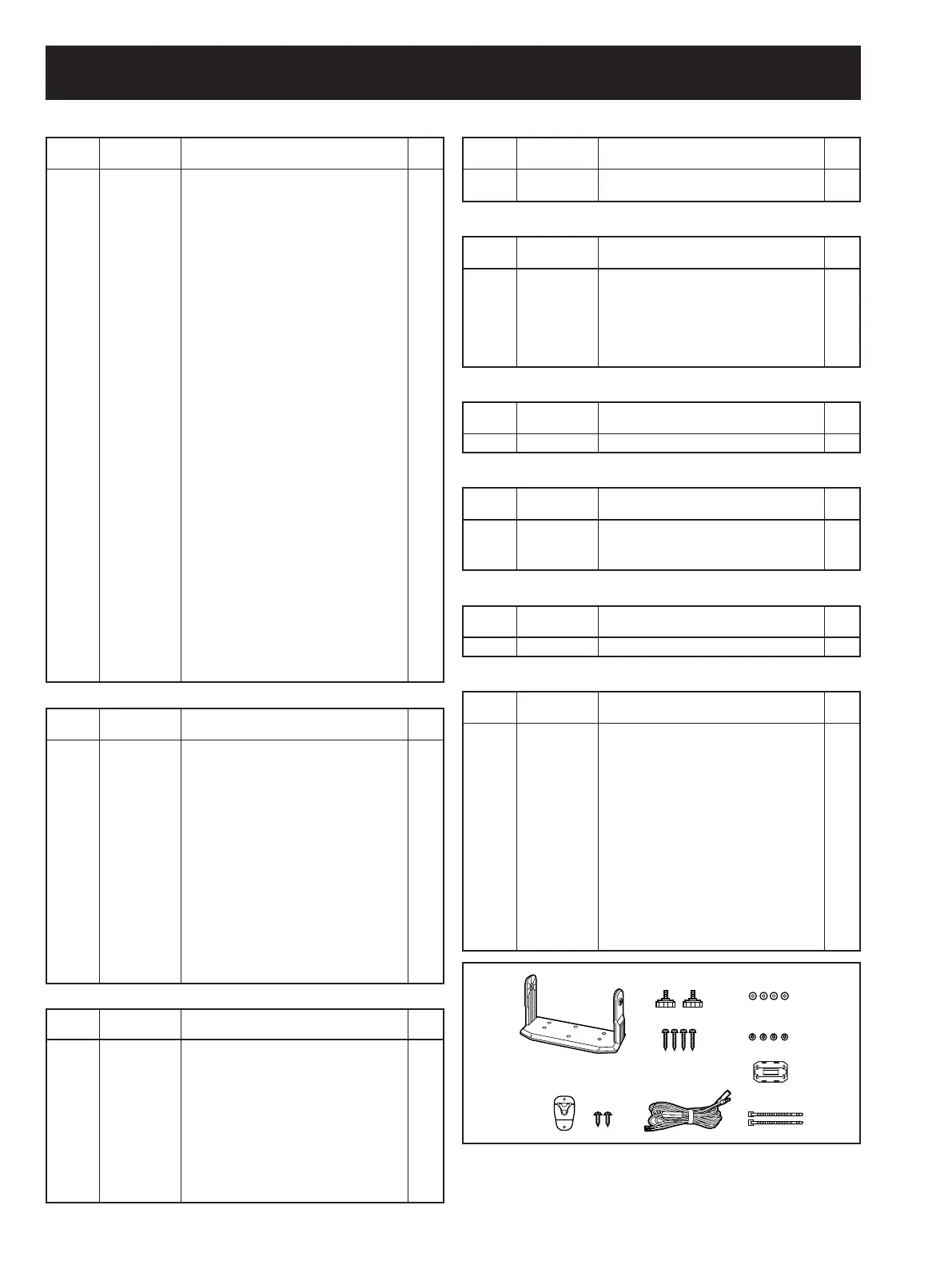

SECTION 7 MECHANICAL PARTS AND DISASSEMBLY
Screw abbreviations A, B0, BT: Self-tapping
PH: Pan head ZK: Black
NI-ZU: Nickel-Zinc
SUS: Stainless
MP1 MP5
MP2
MP3
MP4
EP1
MP11
W1
MP8
MP7
[CHASSIS PARTS]
J1 6510004880 Connector MR-DS-E 01 1
W1 8900015070 Cable OPC-1546 1
W2 8900015080 Cable OPC-1547 1
W3 8900015300 Cable OPC-1616 1
MP1 8210022890 2914 rear panel assembly [Black] 1
(inc. MP2)
8210022900 2914 rear panel (A) assembly [Gray] 1
(inc. MP2)
MP3 8930058780 2577 sheet 1
MP4 8930069320 2914 rear seal 1
MP5 8810010610 Screw PH B0 M3 × 8 SUS S 6
MP11 8930069330 2914 chassis 1
MP12 8930034300 1542 ANT seal 1
MP13 8810010610 Screw PH B0 M3 × 8 SUS S 2
MP15 8510017570 2914 module cover 1
MP16 8810010020 Screw PH BT M2.6 × 8 NI-ZU 2
MP17 8930069280 2914 S-bush plate 1
MP18 8930069270 2914 B-bush plate 1
MP19 8810008660 Screw PH BT M3 × 8 NI-ZU 1
MP21 8810008660 Screw PH BT M3 × 8 NI-ZU 6
MP22* 8510017850 2914 earth plate 1
MP31 8810008660 Screw PH BT M3 × 8 NI-ZU 4
MP32 8930069740 2914 S-IC clip 1
MP33 8930069950 Thermally sheet (BE) TC-80CG-AV 1
MP34 8930069750 2914 B-IC clip 1
MP41 8930069310 2914 front seal 1
MP42 8810010620 Screw PH B0 M3 × 12 SUS S 6
MP44 8820001210 2438 screw 1
MP45 8930052290 O ring (AD) 1
MP46 8930055040 2438 cap [USA-02] only 1
ORDER
NO.
REF.
NO.
DESCRIPTION QTY.
7 - 1
[AF UNIT]
W1 8900015060 Cable OPC-1545 1
W2 8900015050 Cable OPC-1544 1
ORDER
NO.
REF.
NO.
DESCRIPTION QTY.
[DIAL BOARD]
S1 2250000530 Encoder TP90N1007AE20-20F-2914 1
W1 8900015040 Cable OPC-1543 1
ORDER
NO.
REF.
NO.
DESCRIPTION QTY.
[VR BOARD]
R1 7210003150
Variable resistor TP96N97-15SK-10KB-2685
1
ORDER
NO.
REF.
NO.
DESCRIPTION QTY.
[ACCESSORIES]
W1 8900009041 Cable OPC-891A 1
EP1 6910013530 Bead ZCAT2035-0930A-BK 1
MP1 8010018154 2345 mobile bracket-4 ZK [Black] 1
8010020464 2345 mobile bracket (C)-4 [Gray] 1
MP2 8810001490 Screw PH A M5 × 20 SUS 4
MP3 8850000180 Flat washer M5 SUS 4
MP4 8850000500 Spring washer M5 SUS 4
MP5 8610010561 2040 knob bolt-1 [Black] 2
8820001271 2040 knob bolt (C)-1 [Gray] 2
MP7 8950005110 2289 mic hanger 1
MP8 8810004700 Screw PH A M3 × 16 SUS 2
MP11 8950000180 Cable tie -80 2
ORDER
NO.
REF.
NO.
DESCRIPTION QTY.
[LOGIC BOARD]
DS1 5030002390 LCD HLM7784-010100 1
MP1 8930058440 2577 LCD holder 1
MP2 8210019060 2577 reflector 1
MP3 8930058910 2577 LCD sheet 1
MP4 8930058900 Rubber sheet (BB) 2
ORDER
NO.
REF.
NO.
DESCRIPTION QTY.
[FRONT PARTS]
MC1 0800005503 Microphone HM-126B-3 [Black] 1
0800009000 Microphone HM-126G [Gray] 1
MP1 8210022850 2914 front panel assembly [Black] 1
(inc. MP3, MP6, MP7, MP9)
8210022860 2914 front panel (A) assembly [Gray] 1
(inc. MP3, MP6, MP7, MP9)
MP10 8930051970 2345 A-bush plate 1
MP11 8810010020 Screw PH BT M2.6 × 8 NI-ZU 7
MP12 8930069260 2914 earth spring 1
MP21 8930052280 O ring (AC) 3
MP22 8610011370 Knob N312 (ZK) [Black] 2
8610011640 Knob N312 (B) (GRAY) [Gray] 2
MP23 8610012960 Knob N347 [Black] 1
8610012980 Knob N347 (A) [Gray] 1
ORDER
NO.
REF.
NO.
DESCRIPTION QTY.
[SQL BOARD]
R1 7210003150
Variable resistor TP96N97-15SK-10KB-2685
1
ORDER
NO.
REF.
NO.
DESCRIPTION QTY.
*: Refer to SECTION 9 BOARD LAYOUTS.
[MAIN UNIT]
J1 6510025520 Connector IMSA-6065B-04Z097-PT1 1
EP2* 6910002161 Case-BM7H-LF 1
EP3* 6910002161 Case-BM7H-LF 1
MP1* 8510017560 2914 VCO case 1
MP2* 8510014890 2577 DBM case 1
MP3* 8510017560 2914 VCO case 1
MP4* 8510014890 2577 DBM case 1
MP7 8930053480 2345 plate 1
ORDER
NO.
REF.
NO.
DESCRIPTION QTY.
To Next Page
