Icom IC-R100 Service Manual

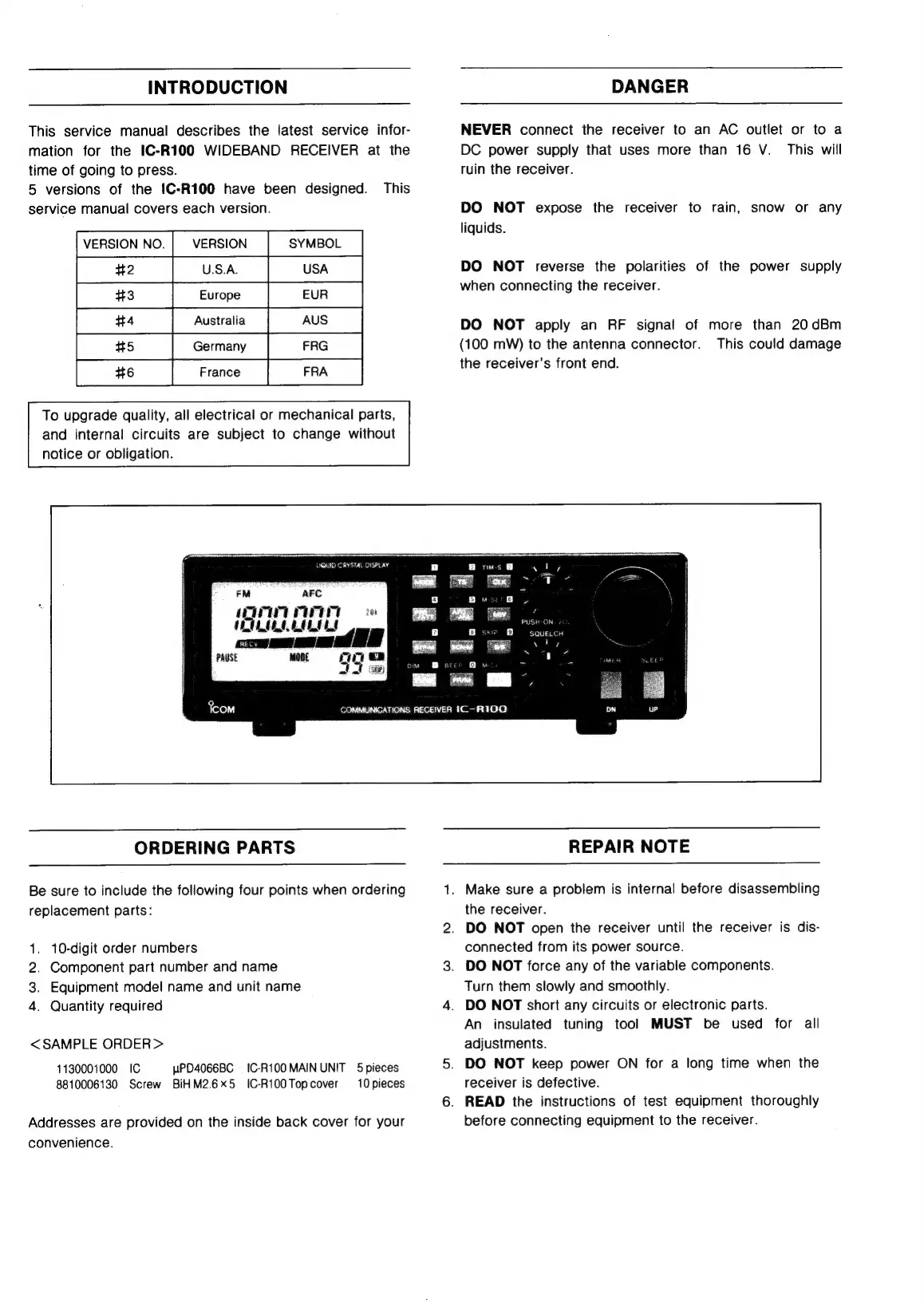

INTRODUCTION
This service manual describes the latest service infor-
mation for the IC-R100 VVIDEBAND RECEIVER at the
time of going to press.
5 versions of the IC-R100 have been designed. This
service manual covers each version.
VERSION NO. VERSION SYMBOL
m |
To upgrade quality, all electrical or mechanical parts,
and internal circuits are subject to change without
notice or obligation.
DANGER
NEVER connect the receiver to an AC outlet or to a
DC power supply that uses more than 16 V. This will
ruin the receiver.
DO NOT expose the receiver to rain, snow or any
liquids.
DO NOT reverse the polarities of the power supply
when connecting the receiver.
DO NOT apply an RF signal of more than 20 dBm
(100 mW) to the antenna connector. This could damage
the receiver's front end.
UQUID CRYSTAL DISPLAY
ЕМ АРС
aim nni
UTLIULULILELI
PAUSE MODE пока
12 se
COMMUNICATIONS RECEIVER TC -R1OO
ORDERING PARTS
Be sure to include the following four points when ordering
replacement parts:
1. 10-digit order numbers
2. Component part number and name
3. Equipment model name and unit name
4. Quantity required
«SAMPLE ORDER»
1130001000 IC UPD4066BC — IC-R100 MAIN UNIT 5 pieces
8810006130 Screw BiH M2.6 x5 IC-R100 Top cover 10 pieces
Addresses are provided on the inside back cover for your
convenience.
REPAIR NOTE
. Make sure a problem is internal before disassembling
the receiver.
. DO NOT open the receiver until the receiver is dis-
connected from its power source.
. DO NOT force any of the variable components.
Turn them slowly and smoothly.
. DO NOT short any circuits or electronic parts.
An insulated tuning tool MUST be used for all
adjustments.
. DO NOT keep power ON for a long time when the
receiver is defective.
. READ the instructions of test equipment thoroughly
before connecting equipment to the receiver.

Icom IC-R100 Specifications

General

Brand	Icom
Model	IC-R100
Category	Receiver
Language	English
