Icom IC-R2 Service Manual

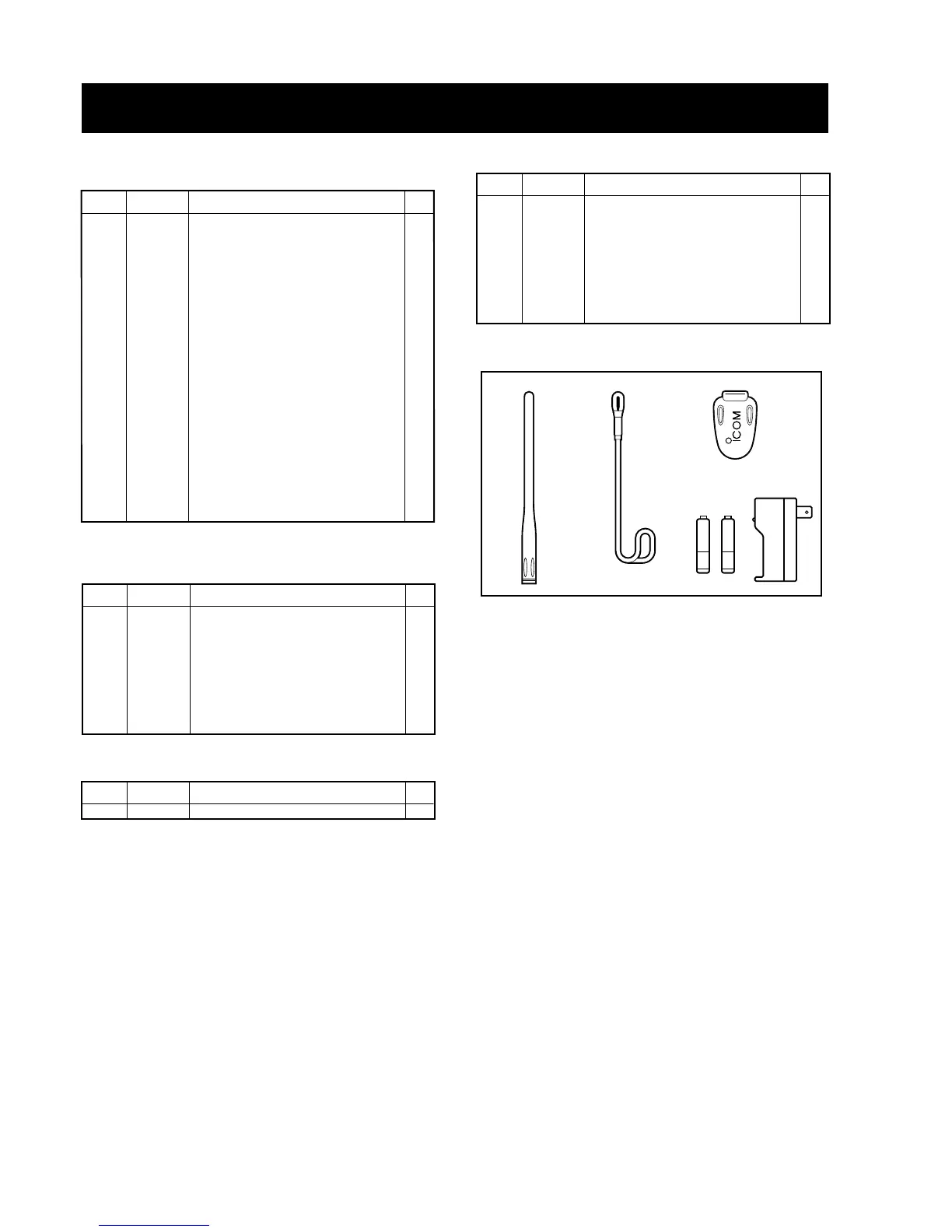

SECTION 7 MECHANICAL PARTS AND DISASSEMBLY
7 - 1
Screw abbreviations A, B0, BT: Self-tapping
PH: Pan head
FH: Flat head
BiH: Bind head
NI: Nickel
SUS: Stainless
ZK: Black
REF. NO. ODER NO. DESCRIPTION QTY.
J1 6510020950 Connector SMA-R226 1
SP1 2510000960 Speaker K036NA500-26A27 1
MP1 8210015690 1995 Front panel (C) 1
MP2 8210014981 1995 Rear panel-1 1
MP3 8110006280 1995 BATT cover 1
MP4 8930044211 1995 7-Key-1 1
MP5 8930047620 2127 PTT rubber 1
MP6 8930047610 2127 Jack cap 1
MP7 8310044470 1995 Window plate (A) 1
MP8 8010017352 1995 Chassis-2 1
MP9 8930011900 Sheet SP net (A) 1
MP10 8830000570 Screw (A) 1
MP11 8830001090 Screw (D) 1
MP13 8110006290 1995 Lock cover 1
MP14 8610010520 Knob N-262 1
MP15 8930044250 1995 BATT seal 1
MP22 8810009790 Screw PH B0 1.7X4NI-ZU (BT) 3
MP23 8810009560 Screw PH B0 2X6ZK (BT) 2
MP26 8930047470 1995 Mic sheet 1
MP27 8930043440 Sponge (EY) 1
7-1 CABINET PARTS
[CHASSIS PARTS]
REF. NO. ODER NO. DESCRIPTION QTY.
DS8 5030001610 LCD DLC-7995 1
EP2 8930046581 LCD contact 1
MP1 8930044290 1995 LCD holder 1
MP2 8930046400 1995 LCD sheet 1
MP3 8210015420 1995 Reflector 1
MP4 8810009790 Screw PH B0 1.7X4NI-ZU (BT) 2
MP5 8510012030 2127 Shield case 1
[LOGIC UNIT]
REF. NO. ODER NO. DESCRIPTION QTY.
J1 6510020550 S.Connector AXK6S40445P 1
[RF UNIT]
REF. NO. ODER NO. DESCRIPTION QTY.
BT1 3030000420 NICD CEL 2
3030000450 NICD CEL 2
EP1 3310002150 Antenna FA-S270C 1
EP2 0800005090 Chager BC-127A ACC 1
0800005100 Chager BC-127D ACC 1
MP1 8930044191 1995 Belt clip-1 1
MP2 8010011960 Handstrap 1
[ACCESSORIES]
[
EUR
]
,
[
USA
]
,
[
CAN
]
[
OTH
]
only
[
USA
]
,
[
CAN
]
only
[
EUR
]
,
[
OTH
]
only
BT1
EP2
MP1
EP1
MP2
