Icom IC-R3 Service Manual

5 - 4

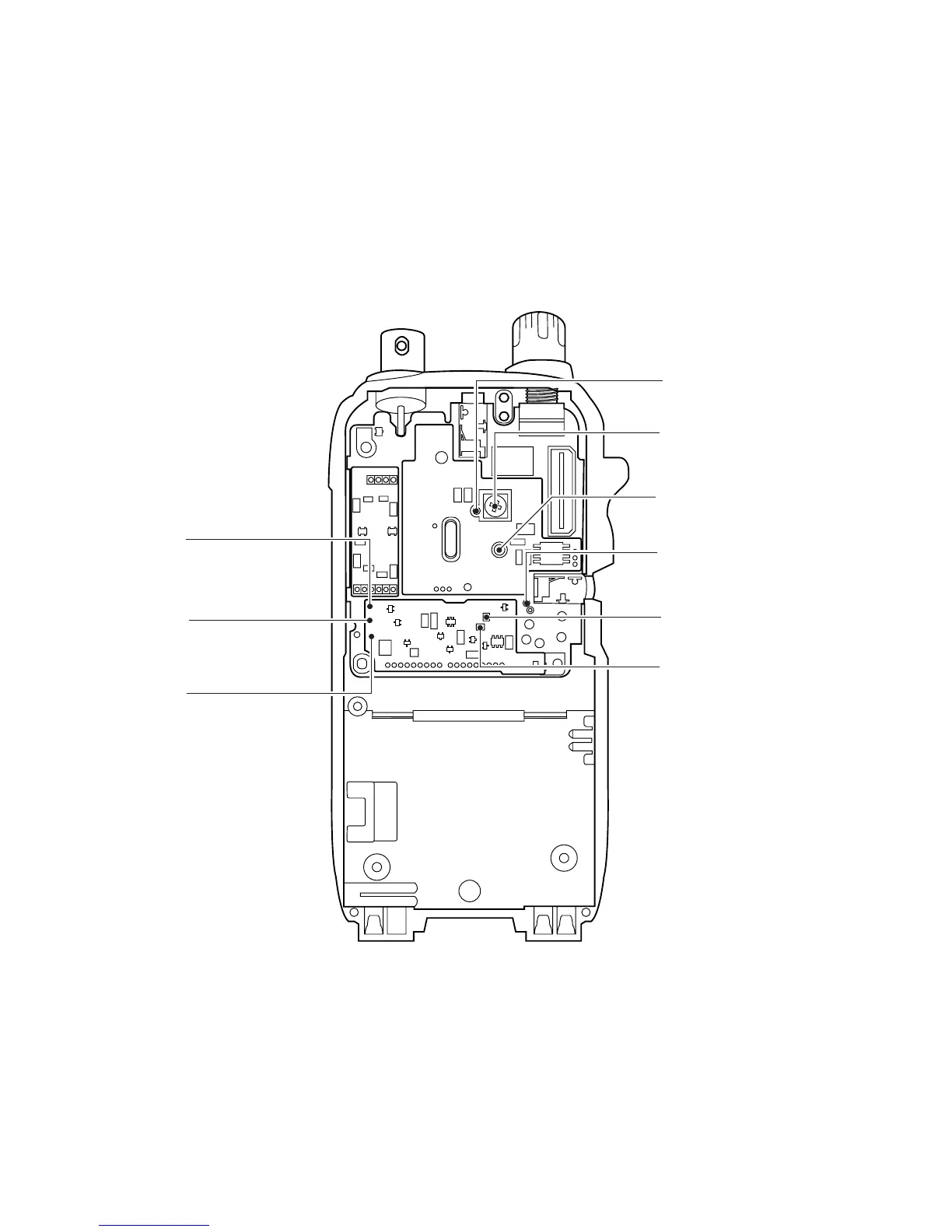

1st VCO lock voltage (shift on)
adjustment
L64
1st VCO lock voltage (shift off)
adjustment
L63
TV mode reference frequency
check point
CP6
TV mode reference frequency
adjustment
L902
Detector output voltage
check point
CP1
Detector output voltage
adjustment
L21
1st VCO lock voltage
check point
CP1
2nd VCO lock voltage
check point
CP2
Converter VCO lock voltage
check point
CP3
