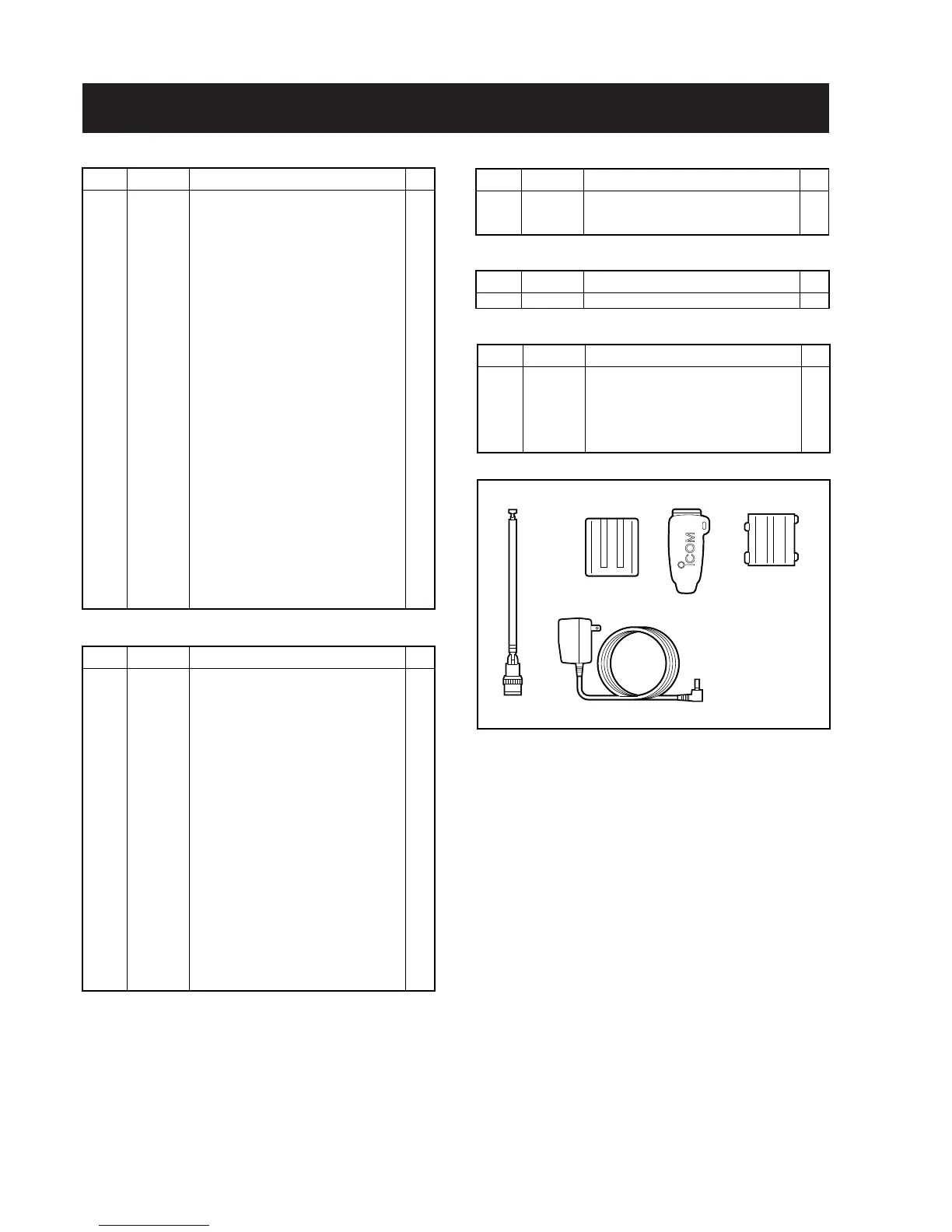

Icom IC-R3 - Page 35

SECTION 7 MECHANICAL PARTS AND DISASSEMBLY
7 - 1
REF. NO. ODER NO. DESCRIPTION QTY.
J1 6510022400 Connector BNC-R157 1
SP1 2510000960 Speaker K036NA500-26A27 1
MP1 8210016440 2304 front panel 1
MP2 8210016450 2304 rear panel 1
MP3 8810007010 2304 BATT. Cover 1
MP4 8930050420 2304 Lock plate 1
MP5 8930050450 2304 Jack cap 1
MP6 8930050430 2304 SP cap 1
MP7 8930051320 2304 Key 1
MP8 8930050600 2304 FUNC. Button 1
MP10 8930050540 2304 A-terminal 1
MP11 8930050550 2304 B-terminal 1
MP12 8930050560 2304 C1-terminal 1
MP13 8930050570 2304 C2-terminal 1
MP14 8930050580 2304 D-terminal 3
MP15 8930050610 2304 FUNC. Button plate 1
MP16 8930051390 2304 shaft 1
MP18 8830000570 Nut FX-643 1
MP19 8810009180 Screw BT M2 x 5 NI-ZU 4
MP20 8810009180 Screw BT M2 x 5 NI-ZU 1
MP21 8810005700 Screw M2 x 4 ZK 1
MP22 8810009220 Screw BT M2 x 8 ZK 3
MP23 8810009560 Screw BT M2 x 6 ZK 1
MP24 8610010521 Knob N-262-1 1
MP26 8930052610 2304 L-R Plate 1
MP27 8010018210 2304 A-sub shassis 1
MP29 8930052710 2304 SP sheet 1
MP33 8930053370 2304 Earth sheet 1
[CHASSIS PARTS]
REF. NO. ODER NO. DESCRIPTION QTY.
MP1 8510013120 2304 B-RF Shield 1
MP3 8930052780 Insulating plate 1
MP4 8510013131 2304 A-RF shield-1 1
[RF PARTS]
REF. NO. ODER NO. DESCRIPTION QTY.
DS1 5030001830 LCD A0080 1
DS4 5030001780 LCD ALP210CXX10 1
DS5 5080000460 3AE4T4KL2008Y 1
EP1 8930052910 LCD Contact SRCN-2304-SP-N-W 1
MP1 8930050440 2304 M-LCD Holder 1
MP2 8210016460 2304 Reflector 1
MP3 8930050620 2304 S-LCD Holder 1
MP4 8930051280 2304 E-Terminal 1
MP5 8930050630 2304 M-LCD Plate 1
MP6 8930051380 2304 BATT. Spring 2
MP7 8810009790 Screw BT M1.7 x 4 NI-ZU 4
MP8 8510013110 2304 Logic shield 1
MP10 8510013070 2304 M-LCD shield 1
MP11 8510013090 2304 A-DC-DC shield 1
MP12 8510013080 2304 B-DC-DC shield 1
MP13 8510013100 2304 INV. TR. shield 1
MP14 8930052311 2304 F-terminal-1 1
MP15 8930052740 2304 A-Logic sheet 1
MP16 8930052750 2304 B-Logic sheet 1
MP17 8930052790 2304 C-Logic sheet 1
MP21 8930053010 Sponge 1
[LOGIC PARTS]
REF. NO. ODER NO. DESCRIPTION QTY.
MP1 8510012760 2304 VCO case 1
[VCO PARTS]
REF. NO. ODER NO. DESCRIPTION QTY.
EP1 3310002410 Antena FA-B03RE 1
EP2 0800005460 Battery BP-206 ACC [OTH-1], [OTH-2] 1
EP3 5930001180 Charger BC-136D [OTH-1], [OTH-2] 1
MP1 8930044450 Clip 1903 Belt clip 1
MP2 8930050410 2304 Spacer 1
[ACCESSORIES]
EP1 MP1 MP2
EP3
EP2
Screw abbreviations A, B0, BT: Self-tapping
PH: Pan head
FH: Flat head
BiH: Bind head
SUS: Stainless
NI: Nickel
ZK: Black
