4-2
■ ENTERING THE ADJUST MODE
1. Turn OFF the power.
2. Insert the shunt plug into the [SP] jack. (See page 1.)
3. While holding down [MENU], [QUICK], and [SQL], turn
ON the power to enter the adjust mode.
[ ]
[SQL]
[MENU]
[QUICK]
4. The adjust mode screen is displayed.
■ EXITING THE ADJUST MODE
1. Turn OFF the power.
2. Remove the shunt plug from the [SP] jack, then turn ON
the power.

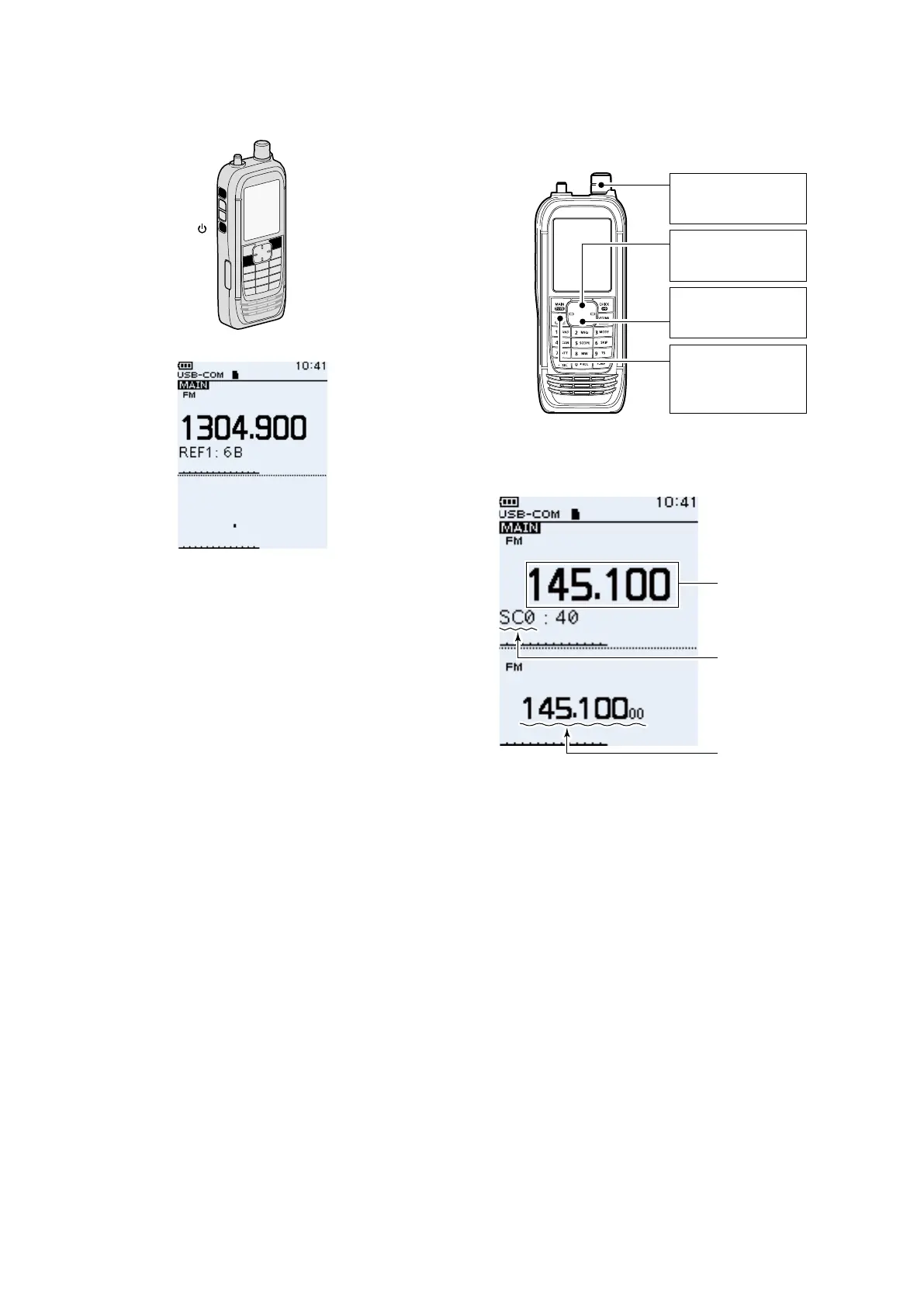

■ KEY ASSIGNMENTS FOR THE ADJUST
MODE
• Push [↑] to select the next adjustment item, push [↓] to
select the previous adjustment item.
• Rotate [DIAL] to adjust its level or value.
• Push [ENTER] to store the adjusted value or start
automatic adjustment.
[ENTER]
Stores the adjusted
value, or starts the
audomatic adjustment.
[ ↓ ]
Selects the previous
adjustment item.
[ ↑ ]
Selects the next
adjustment item.
[DIAL]
Adjusts the level or
value.
■ ADJUST MODE SCREEN
Adjustment display
frequency
SUB frequency
Adjustment item name

Icom IC-R30 Specifications

General

Antenna Connector	SMA
GPS	Yes
Modes	AM, FM, WFM, CW, D-STAR, P25, NXDN, dPMR
Power	5V DC (USB), or 7.4V DC (battery)
Battery Life	Approx. 8 hours (with external speaker), Approx. 10 hours (with internal speaker)
Bluetooth	Yes
