Icom IC-R30 Service Manual

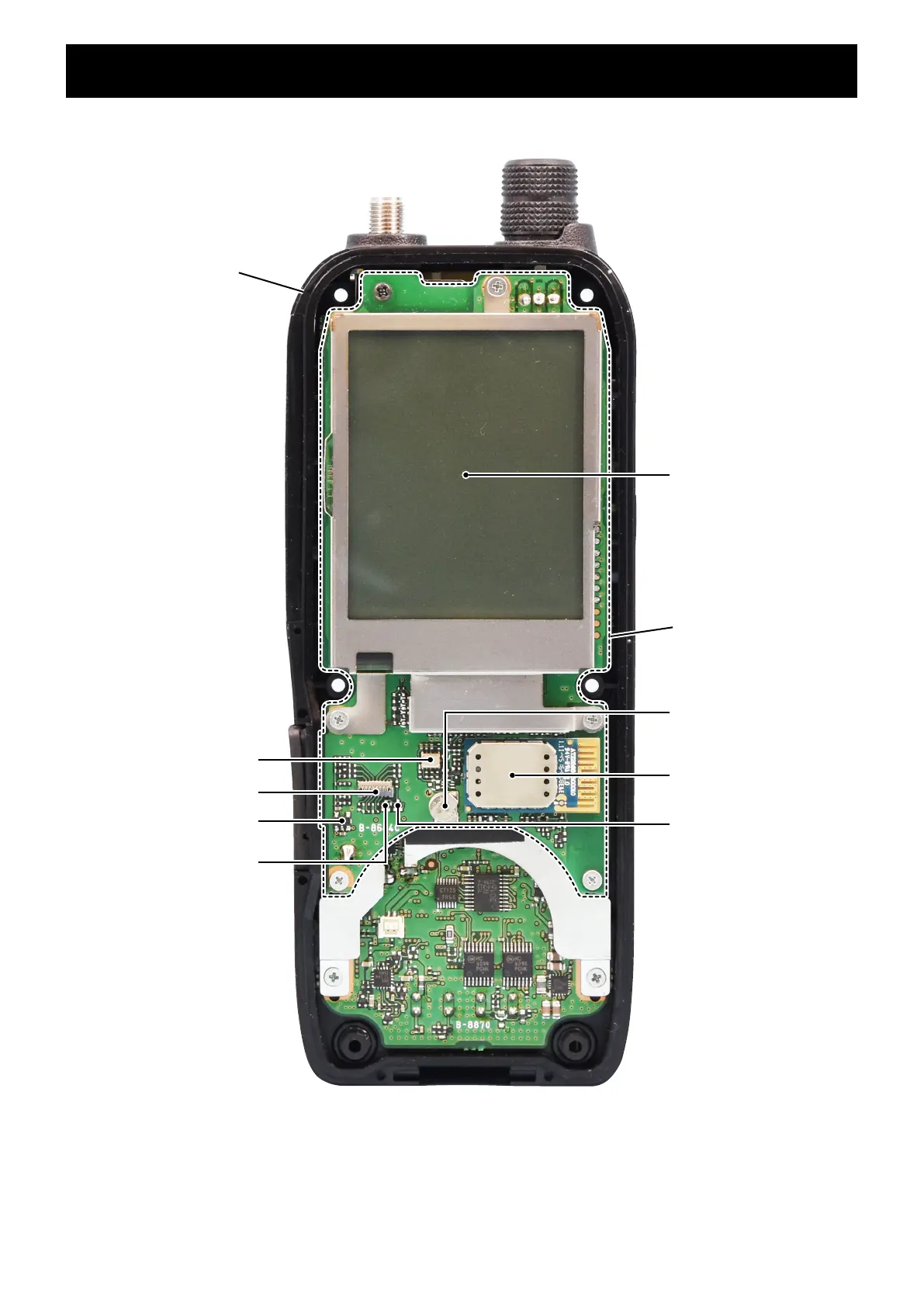

SECTION 2 INSIDE VIEWS
2-1
+3 V REGULETOR
(IC2)
KEY BACKLIGHT SWITCH
(Q15)
REALTIME CLOCK
BACKUP BATTERY
(BT1)
REALTIME CLOCK IC
(IC10)
J6
BLUETOOTH MODULE
(IC21)
KEY BACKLIGHT SWITCH
(Q16)
LCD
(DS4)
LOGIC/-1 UNIT
REAR PANEL
• LOGIC/-1 UNIT (TOP VIEW)

Icom IC-R30 Specifications

General

Antenna Connector	SMA
GPS	Yes
Modes	AM, FM, WFM, CW, D-STAR, P25, NXDN, dPMR
Power	5V DC (USB), or 7.4V DC (battery)
Battery Life	Approx. 8 hours (with external speaker), Approx. 10 hours (with internal speaker)
Bluetooth	Yes
