Icom IC-R30 Service Manual

2-2
+3 V REGULETOR
(IC24)
+3 V REGULETOR
(IC14)
+3 V REGULETOR
(IC20)
J4
DC-DC CONVERTER
(IC206)
SRAM
(IC9)
J3

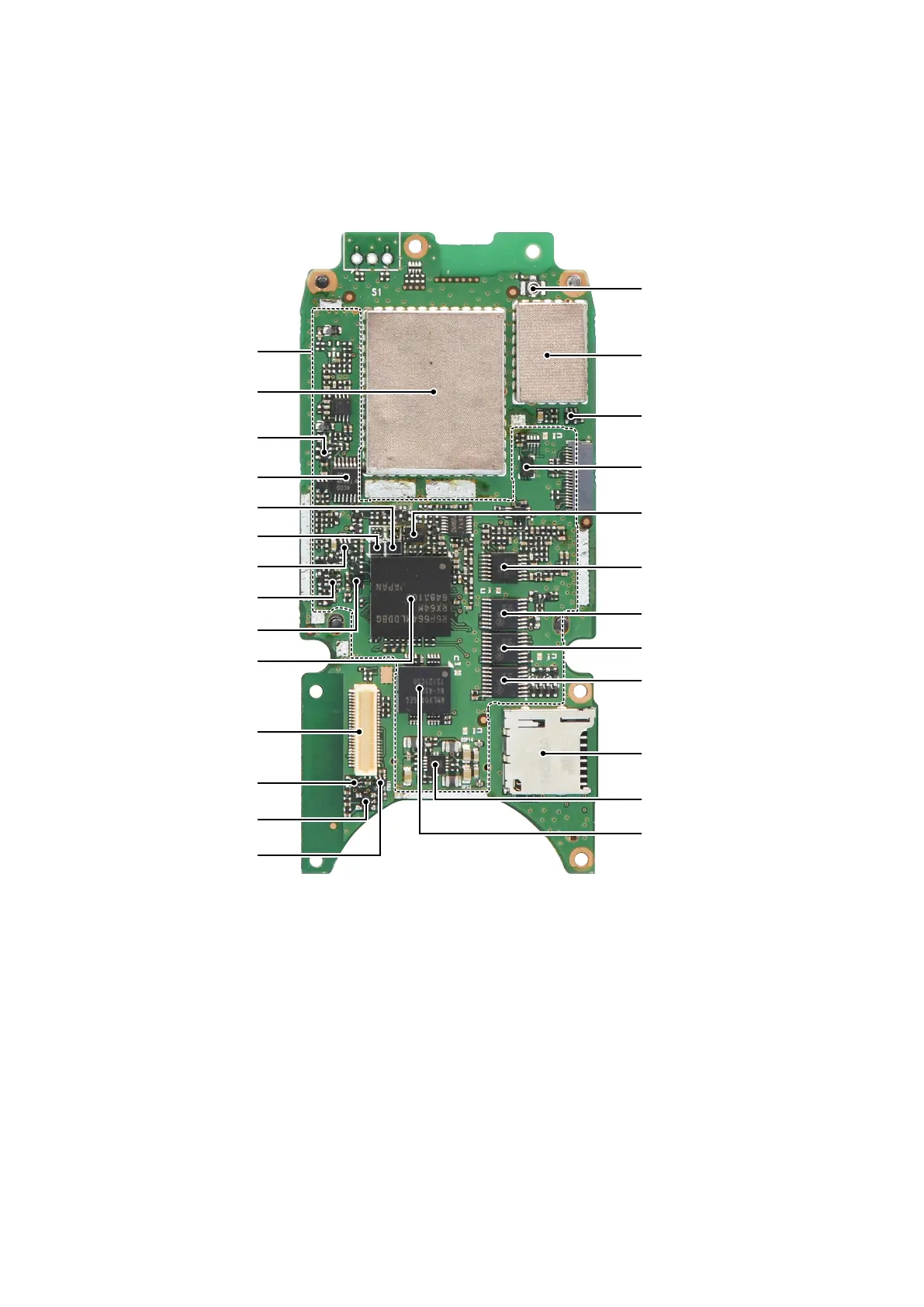

• LOGIC/-1 UNIT (BOTTOM VIEW)
GPS RECEIVER MODULE
(IC16)
Inside the shielded case.
DSP
(IC200)
Inside the shielded case.
+3 V REGULETOR
(IC205)
RESET
(IC1)
EEPROM
(IC5)
EEPROM
(IC6)
CLONE
(IC3)
BATTERY GAUGE
(IC12)
USB DET
(IC25)
CPU
(IC4)
LEVEL CONVERTER
(IC15)
FLASH ROM
(IC202)
24 MHz SPRED SPECTRUM
OSCILLATOR
(X1)
LPF
(IC209)
I/O PORT
(IC17)
I/O PORT
(IC18)
I/O PORT
(IC19)
J2 [SD CARD SLOT]
SHIELD PLATE

Icom IC-R30 Specifications

General

Antenna Connector	SMA
GPS	Yes
Modes	AM, FM, WFM, CW, D-STAR, P25, NXDN, dPMR
Power	5V DC (USB), or 7.4V DC (battery)
Battery Life	Approx. 8 hours (with external speaker), Approx. 10 hours (with internal speaker)
Bluetooth	Yes
