Icom IC-R30 Service Manual

2-3
CHARGE CONTROL
(IC1013)
+5 V REGULETOR
(IC1015)
D/A CONVERTER 1
(IC1005)
RF AMPLIFIER
: for 1305~3305 MHz
(IC2)
RF AMPLIFIER
: for B-Band 380~550 MHz
(Q30)
D/A CONVERTER 2
(IC1006)
+5.3 V DC/DC CONVERTER
(IC1014)
I/O PORT
(IC1007)
I/O PORT
(IC1010)
J1001
RF AMPLIFIER
: for A-Band 174~380 MHz
(Q26)
RF AMPLIFIER
: for B-Band 108~174 MHz
(Q10)
RF AMPLIFIER
: for 30~108 MHz
(Q24)
RF AMPLIFIER
: for 108~174 MHz
(Q5)
RF AMPLIFIER
: for A-Band 108~174 MHz
(Q9)
BUFFER AMPLIFIER
: for A-Band
(IC3)
GVCO CIRCUIT: for A-Band
(Q550, D533)
Inside the shielded case.
1st VCO CIRCUIT: for A-Band
(IC509/IC508/Q532)
Inside the shielded case.
10.7 MHz BPF: for A-Band
(FI501)
58.05 MHz BPF: for A-Band
(FI500)
BPF 46.35 MHz: for B-Band
(FI3)
1st MIXER: for B-Band
(Q39)
1st VCO CIRCUIT: for B-Band
(Q530, Q531, Q537, D518, D519,
D521~D523)
Inside the shielded case.
J1002
2nd VCO CIRCUIT: for A-Band
(Q547, D535, D536)
Inside the shielded case.
AGC DET: for A-Band
(IC505)
AGC DET: for B-Band
(IC501)
SHIELD PLATE
D/A CONVERTER 2
(IC1002)
57.6 MHz CRYSTAL OSCILLATOR
(X501)
Inside the shielded case.
15.3 MHz CRYSTAL OSCILLATOR
(X500)
Inside the shielded case.
MAIN UNIT
REAR PANEL

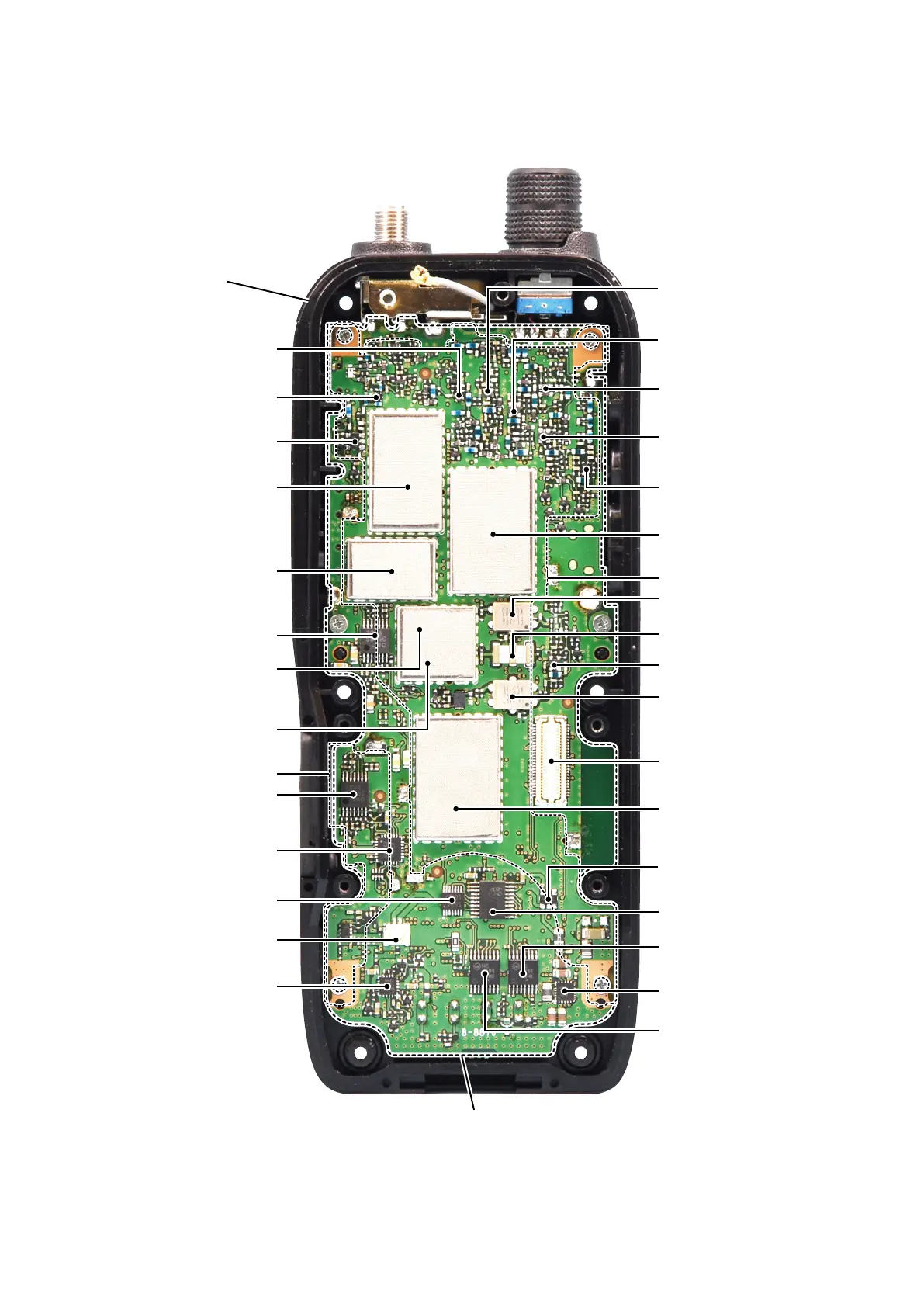

• MAIN UNIT (TOP VIEW)
SHIELD PLATE

Icom IC-R30 Specifications

General

Antenna Connector	SMA
GPS	Yes
Modes	AM, FM, WFM, CW, D-STAR, P25, NXDN, dPMR
Power	5V DC (USB), or 7.4V DC (battery)
Battery Life	Approx. 8 hours (with external speaker), Approx. 10 hours (with internal speaker)
Bluetooth	Yes
