Icom IC-R30 Service Manual

6-2

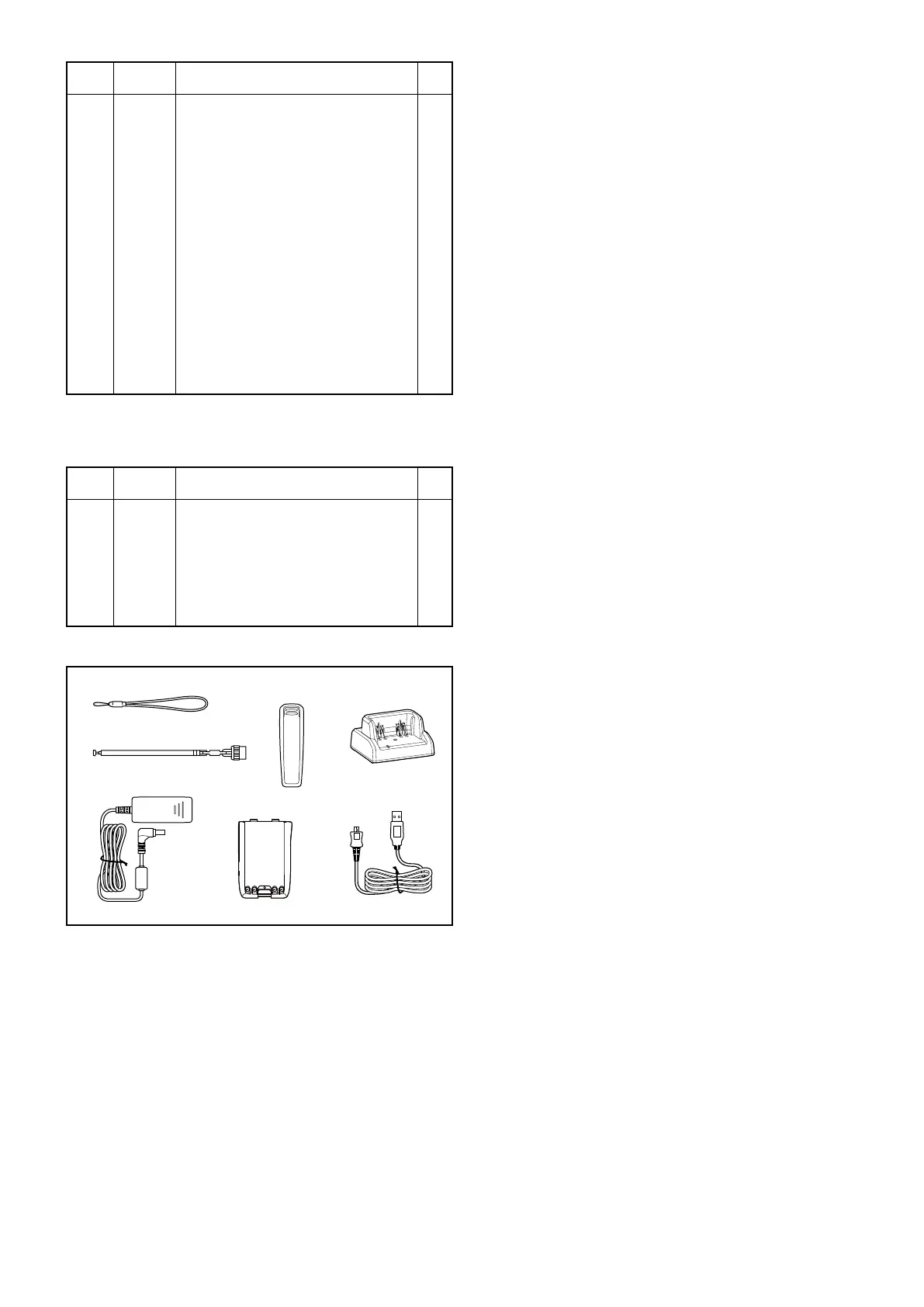

[ACCESSORIES]
REF
NO.
PART
NO.
DESCRIPTION QT Y.
†
: Sold as an option.
W1 8900021671 OPC-2326 1
EP1 6910018620 BLACK HANDY STRAP 1
EP2 3310005060 FA-S01RE 1
EP3 − BP-287
†
1
EP5 − BC-123SE
†
[#12] 1
− BC-123SA
†
[#16] 1
− BC-123SA
†
[#20] 1
EP6 − BC-223
†
1
MP1 − MB-133
†
1
EP1
MP1
EP6
EP3
EP2
W1
EP5
‡
[LOGIC-1 UNIT] (for #16)
REF
NO.
PART
NO.
DESCRIPTION QT Y.
J1* 6510031380 31FXVL-RSM1-GAN-TF-1 (HF) 1
J2* 6510028170 SDHL-8BNS-K-363-A0-ETB (HF) 1
J3* 6510023480 AYU1-1P-02676-120-TF 1
J4* 6510032320 50P4.0-JMCS-G-TF (N) 1
J6* 6510031390 15FXVL-RSM1-GAN-TF-1 (HF) 1
DS4 5030004360 TM128160D1CIWUGND 1
S1 2250001070 ED09D21OFD14.0S6.0C20G 1
BT1* 3020000390 ML414HIV01E 1
EP100 6910027670 AS-G125A2BACAD-AA 1
MP1* 8510022450 3754 GPS CASE 1
MP2 8930099300 SHIELD TAPE (AG) 1
MP3 8930099310 SHIELD TAPE (AH) 1
MP4 8930099250 3754 LOGIC PLATE 1
MP5 8210032890 3699 REFLECTOR 1
MP6 8930096860 3699 WHITE SHEET 1
MP7 8930096870 3699 LCD FILTER 1
MP8 8930099240 3754 LCD HOLDER 1
MP9 8930094680 DOUBLE SIDE TAPE (CC) 2
MP10 8930083700 DOUBLE SIDE TAPE (BM) 1
MP11 8930098430 SPONGE (PL) 2
MP12 8930099610 3754 LCD SHEET 1
MP200* 8510022430 3754 DSP CASE 1
‡
: The shape will differ depending on the version.
*: Refer to "BOARD LAYOUTS" for the location.
