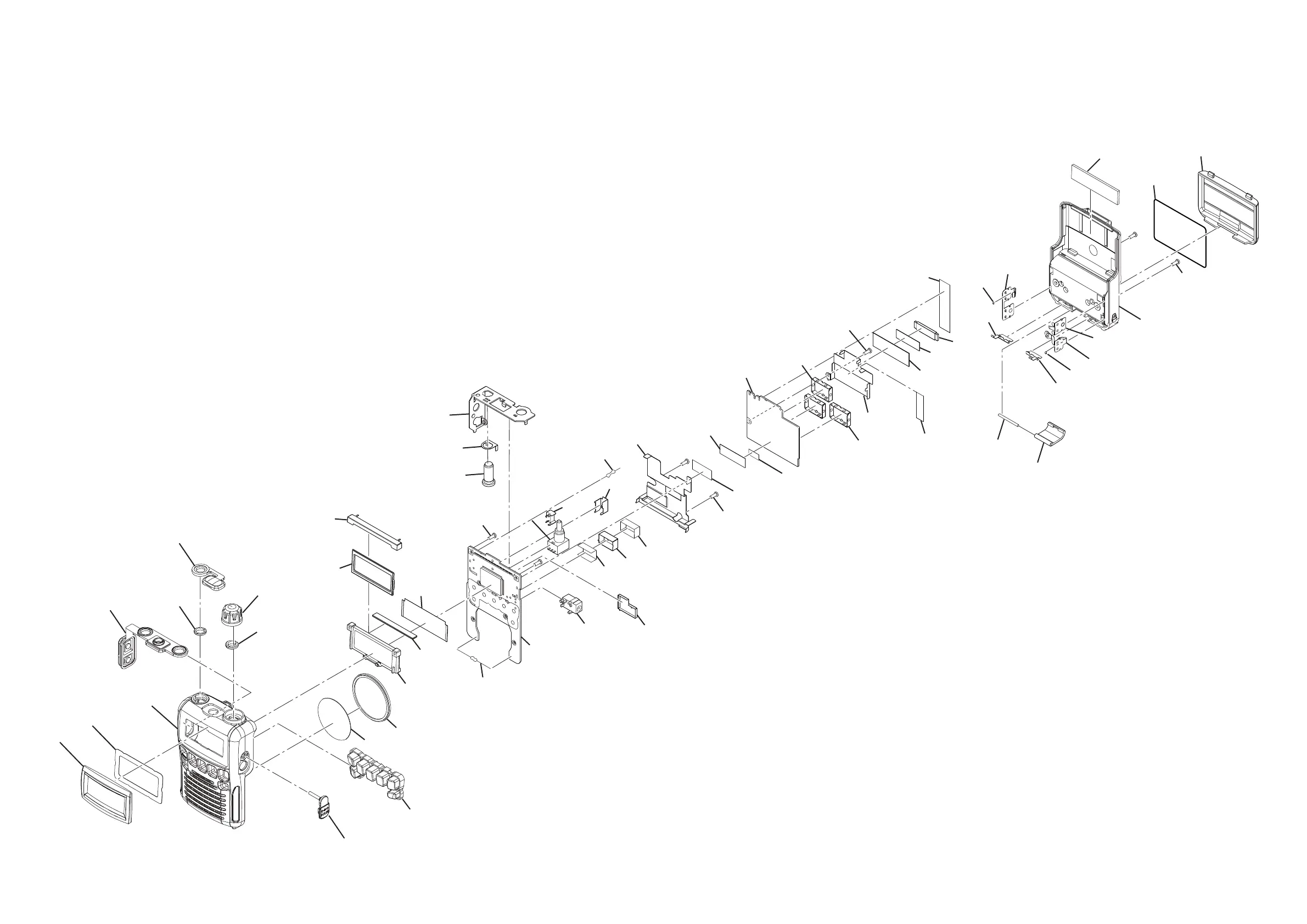

Icom IC-R6 Service Manual

7 - 2
MP1(C)
MP5(C)
MP11(C)
MP6(C)
MP14(C)
MP10(C)
MP28(C)
MP16(C)
MP7(C)
MP9(C)
MP4(C)
SP1(C)
MP32(C)
EP4(L)
W600(L)
MP29(C)
DS1(L)
MP3(L)
MP6(L)
MP8(L)
S9(L)
J1(C)
S6(L)
MP20(C)
MP8(C)
MP2(L)
MP9(L)
MP10(L)
MP7(L)
J500(L)
MP5(L)
W1(L)
MP19(C)
MP22(C)
MP24(C)×2
MP23(C)×2
MP22(C)×2
MP4(L)×2
MP2(R)×3
MP5(R)
RF UNIT
MP2(R)×3
MP24(C)×2
MP11(R)
MP16(R)
LOGIC UNIT
EP2(R)
MP15(R)
MP14(R)
MP12(R)
MP13(R)
MP30(C)
MP17(C)
MP31(C)
MP12(C)
MP13(C)
MP18(C)
MP2(C)
MP15(C)
MP26(C)
MP3(C)
UNIT ABBREVIATIONS
(C): CHASSIS PARTS
(L): LOGIC UNIT
(R): RF UNIT

Icom IC-R6 Specifications

General

Product color	Black
Channels quantity	1550 channels
Supported radio bands	AM, FM
Battery type	AA
Number of batteries supported	2
Impedance	16 Ω
Frequency range	0.1 - 1309.995 MHz
Product type	Portable CB radio
Housing material	-

Weight and Dimensions

Depth	29.8 mm
Width	58 mm
Height	86 mm
Weight	200 g
