11
4
CONNECTING AND MAINTENANCE

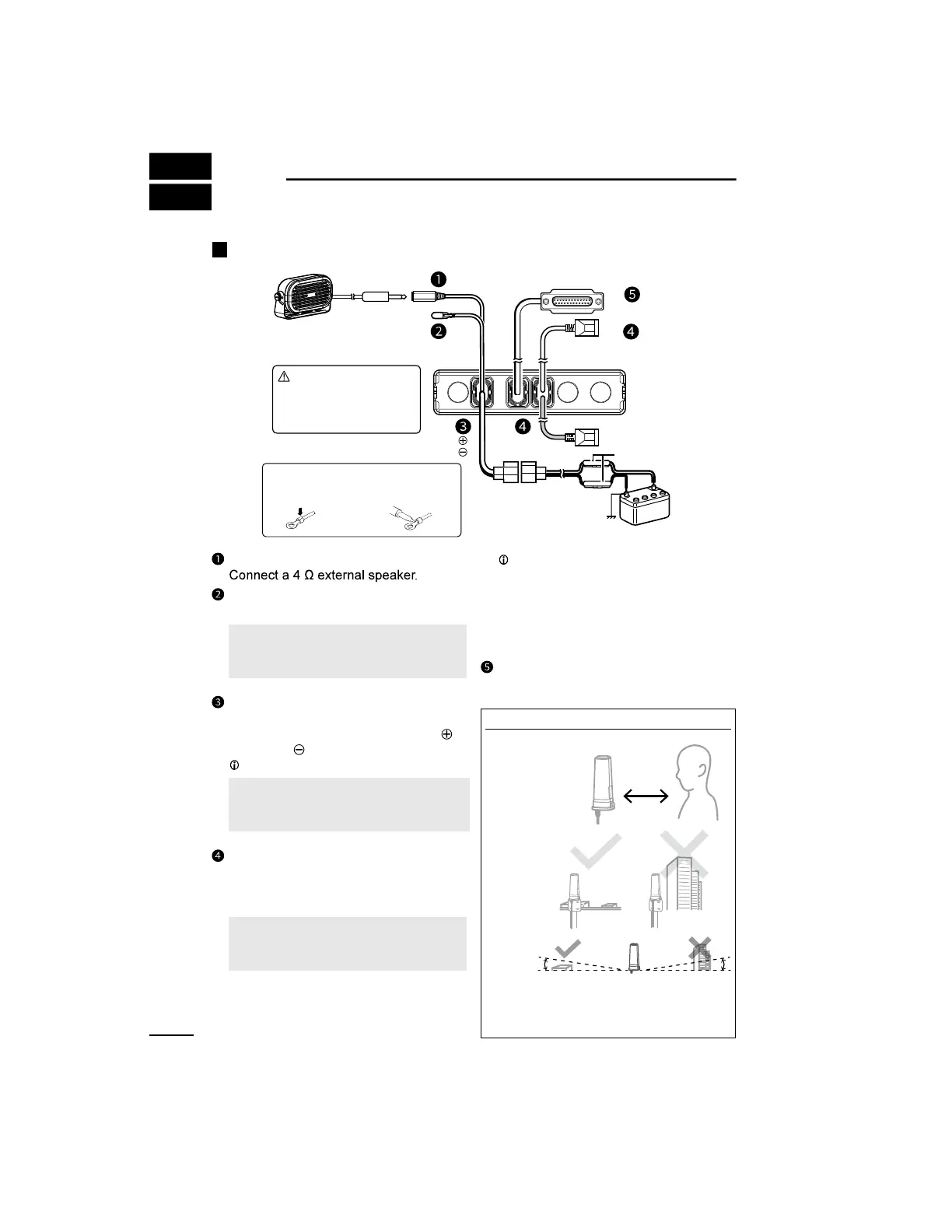

Rear panel connection
EXTERNAL SPEAKER JACK
IGNITION LEAD
Connect to an ignition line.
CAUTION: DO NOT put pressure on
this lead. Binding to the DC power
cable is recommended.
DC POWER CONNECTOR
Connect to a 12 V/24 V DC battery.
Pay attention to polarities. Red line: ,
Black line:
You can also connect the optional AC adapter.
CAUTION: DO NOT
reverse the DC power
cable polarity when connecting to a power
source. This could damage the transceiver.
LAN CABLE
(Gray: for antenna, Black: for IP Network)
Connect the supplied antenna or
network devices such as a HUB.
CAUTION: DO NOT
connect other than
network devices, such as microphone.
This could damage the transceiver.
Change the static IP address when the
transceiver is connected to network devices.
Before using the transceiver, setting a
static IP address to the antenna unit and
the main unit.
Default: Main Unit : 192.168.0.1,
Antenna Unit : 192.168.0.2
D-Sub 25-pin
Connect to use the function extension.
Ask your dealer for details.
Optional
speaker
Installing the outdoor antennas
Keep a minimum
of 20 cm (7.9
inch) between the
Antenna unit and
your body.
Move away
from buildings
and use the
transceiver in
areas with an
open sky.
Install the outdoor antennas in a place with a
clear view of the sky. Make sure that there are no
obstacles, such as buildings or trees, at higher
than about 8 degrees around the antenna.
20 cm
7.9 inch
8°
WARNING! NEVER
remove the fuse
holders from the DC
power cable.
Red : ,
Black :
Fuse holders
12 V or 24 V
Battery
NOTE: Use the terminals as shown
below for the cable connections.
Crimp Solder
