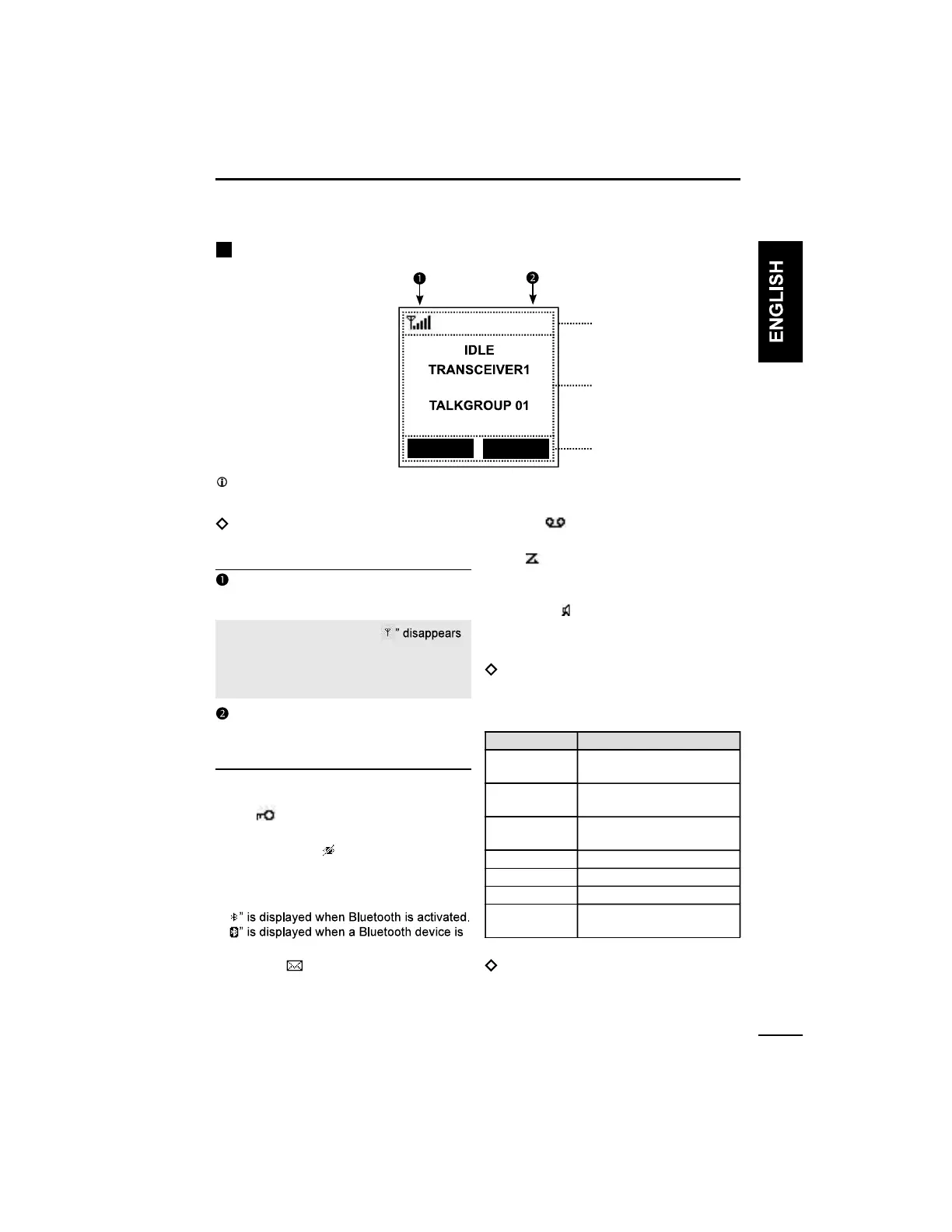

PANEL DESCRIPTION 1
Function display
Icon Area
Indicators
SIGNAL STRENGTH
Displays the relative receive signal strength
level.
NOTE:
The antenna indicator “
if the connection with a satellite is not
established. Keep the antenna vertical and wait
until you are connected, or move your position
to the place with a clear view of the sky.
CLOCK
Displays the current time.
Icons
The following icons are displayed in the
Icon Area.
LOCK
Displayed when the Lock function is ON.
SURVEILLANCE
Displayed when the Surveillance function
is ON.
Bluetooth
®
• “
• “
connected.
MESSAGE
• Displayed when a message has been
received.
• Displayed if unread messages are still in the
Message memory.
RECORD
Displayed when the Record function is ON.
SCAN
• Displayed when a scan is paused.
• Blinks while scanning.
RX Speaker
Displayed when the RX Speaker function is
activated.
Text Area
Displays the status, preset transceiver
name, and selected Talkgroup Name.
Status Description
IDLE The selected Talkgroup is
not active.
OPEN
The selected talkgroup is
active but no one is talking.
REQUESTING Requesting the
transmission.
TALKING Transmitting
LISTENING Receiving
SCANNING Scanning a call
BUSY
Cannot transmit because
the audio is being received.
Key Display Area
Displays the names of the function
assigned to [P1] and [P2].
The display is shown in English as an example. Select other languages on the Menu
screen, if necessary. ([OK] > Display > Language)
Last call
Scan
00:00
Icon area
Text area
Key display area
To Next Page
