7
1
PANEL DESCRIPTION

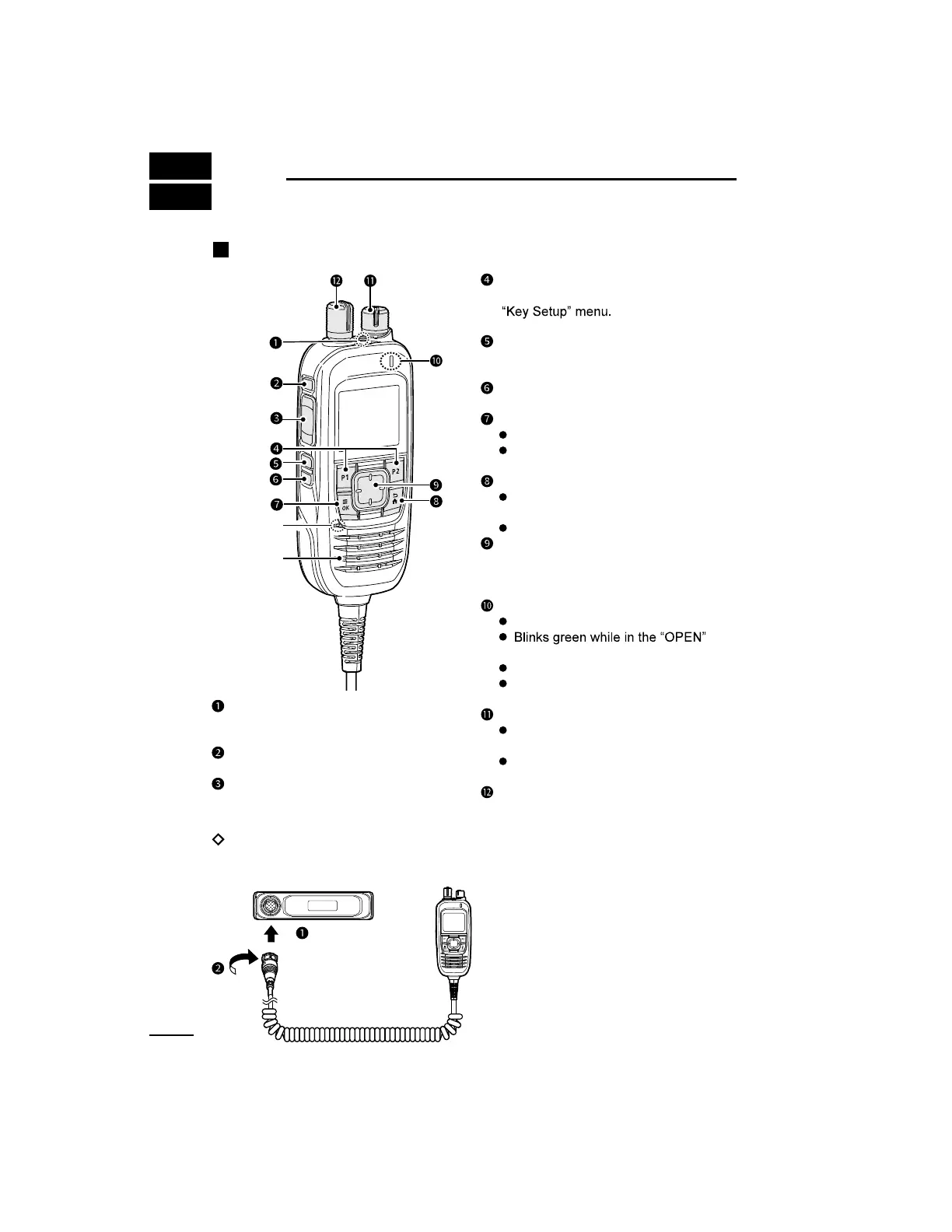

Microphone Description
EMERGENCY KEY [EMER]
Hold down to transmit an Emergency
call.
SIDE 1 KEY [S1]
Push to display the Message List.
PTT SWITCH [PTT]
Hold down to transmit, release to
receive.
P1/P2 KEYS [P1]/[P2]
Push to use the function assigned in the
([OK] > Functions > Key Setup)
SIDE 2 KEY [S2]
Hold down to turn ON or OFF the RX
Speaker function.
SIDE 3 KEY [S3]
Push to display the Public Address.
MENU/OK KEY [OK]
Push to enter the Menu screen.
Push to select an item in the Menu
screen.
BACK/HOME KEY [BACK]
Push to return to the previous Menu
screen.
Hold down to exit the Menu screen.
DIRECTIONAL KEY [UP]/[DOWN]/
[LEFT]/[RIGHT]
Push to select a menu item, setting,
and so on.
STATUS INDICATOR
Lights green while receiving.
status.
Lights red while transmitting.
Blinks orange while registering, or no
satellites found.
VOLUME/POWER CONTROL [VOL]
Hold down to turn the transceiver ON
or OFF.
Rotate to adjust the audio output
level.
TALKGROUP SELECTOR
Rotate to select a talkgroup.
Connecting
Connect the supplied microphone as illustrated below.
Microphone
Speaker
