4

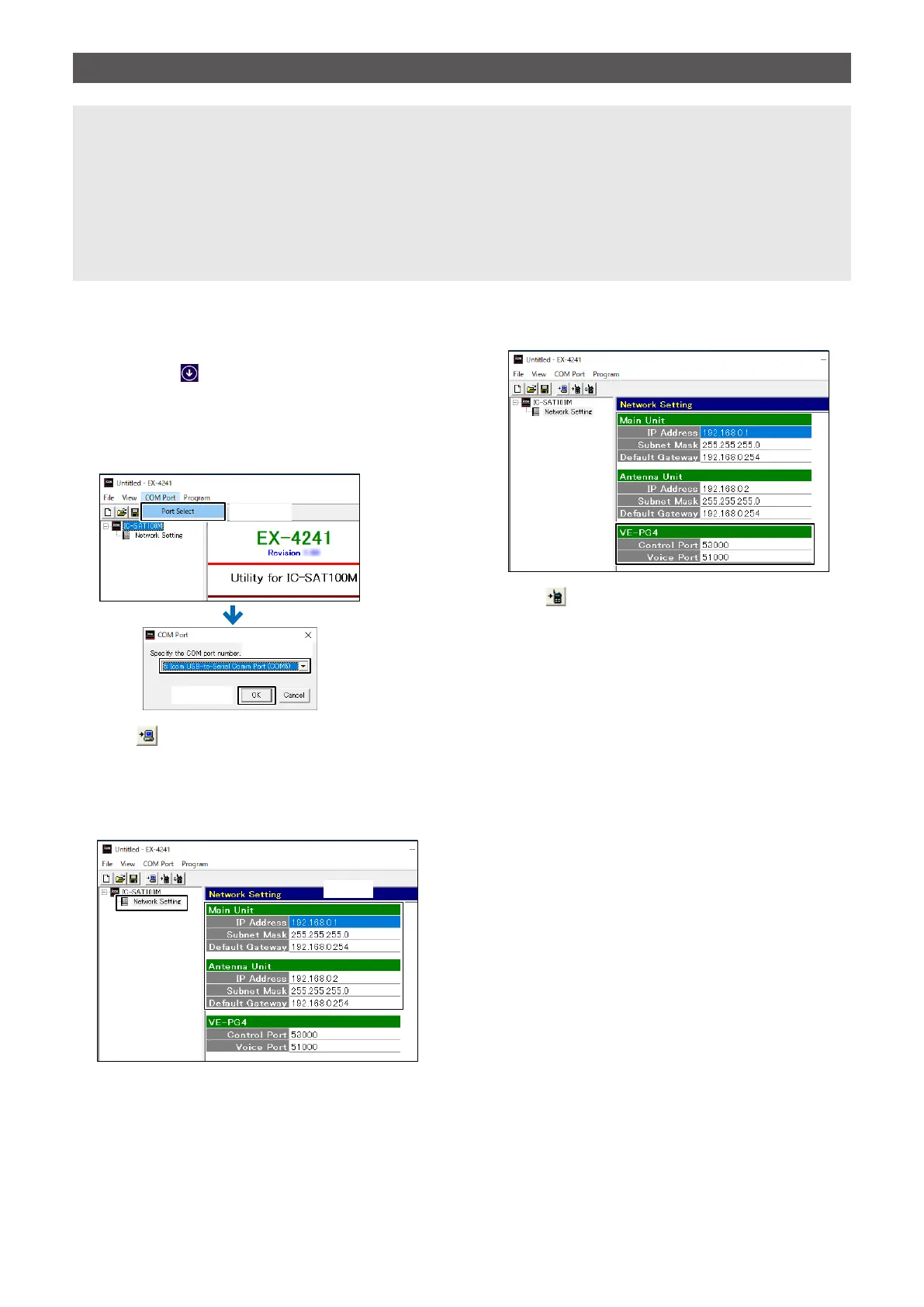

Editing Network Setting
NOTE:
• To prevent data loss, you should rst read all the transceiver’s setting data into the EX-4241. Before editing
or entering, make a backup le onto your PC. A backup le enables easy restoring even if the setting data in
the transceiver is accidentally deleted. After that, enter or edit parameters using the EX-4241. If you write the
setting data into your transceiver before reading, the settings are overwritten.
See page 5 to read the data from the transceiver settings and to save the settings le.
• DO NOT turn OFF the transceiver or the PC, and DO NOT disconnect the cable while reading or writing
setting data. Otherwise, the data could be lost or deleted.
1. Click “EX-4241” in the Start menu, and then click
“EX-4241” to start the software.
• Microsoft
®
Windows
®
8.1:
<Start> ➔
➔ EX-4241
L You can also start the software by simply double-
clicking the EX-4241 shortcut icon on the desktop.
2. Click “Port Select” from the <COM Port> menu,
and then select the COM port number that the
programming cable is connected to.
1 Click
2 Select
3 Click
3. Click
, or select “Read ← TR” in the
<Program> menu to read the data from the
setting data.
4. Click “Network Settings” and set the IP address,
Subnet Mask, and Default Gateway for the IC-
SAT100M Main Unit and Antenna Unit.
1 Click
2 Set
L This is a default setting.
5. When registering two or more IC-SAT100M to
VE-PG4, set the Control Port and Voice Port.
Set
6. Click
, or select “Write → TR” in the
<Program> menu to write the setting data into the
transceiver.
To Next Page
