Icom IC-T81E - Page 35

7 - 2

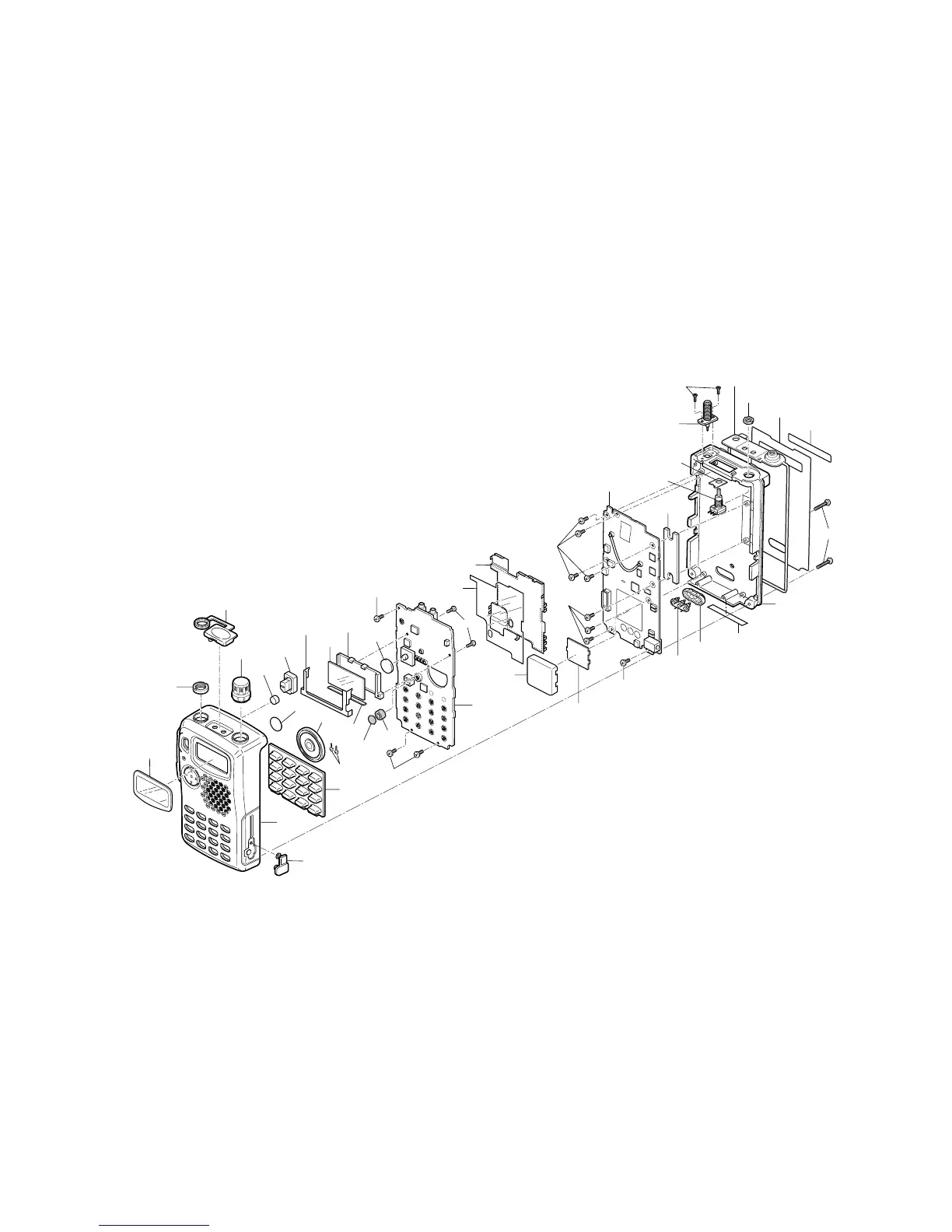

UNIT abbreviation (C): CHASSIS PARTS, (L): LOGIC UNIT (RF): RF UNIT, (V): VCO UNIT
MP7 (C)
MP23 (C)
MP1 (C)
LOGIC unit
VCO unit
RF unit
MP3 (C)
MP18 (C)
MP29 (C)
MP9 (C)
SP1 (C)
MP22 (C)
EP2 (L)
MP25 (C)
MP26 (C)
MP6 (C)
MP2 (L)
MP29 (C)
DS4 (L)
MP1 (L)
S1 (C)
MP30 (C)
J1 (C)
MP21 (C)
MP28 (C)
MP2 (C)
MP20 (C)
MP17 (C)
MP2 (RF)
MP1 (V)
MP31 (C)
MP13 (C)
MP24 (C)
MP10 (C)
MP29 (C)
MP29 (C)
MP29 (C)
MP1 (RF)
MP6 (L)
MP9 (L)
MP5 (L)
MP19 (C)
MP32 (C)
MP4 (L)
MP14 (C)
