Icom IC-V80E - 5-3 Transmit Adjustments

RF POWER METER
(10 W/50 Ω)
5 - 4
ADJUSTMENT
TRANSCEIVER’S
CONDITION
OPERATION
ADJUSTMENT
ITEM
VALUE
TX OUTPUT
POWER
(Hi power)
1 • Frequency : 146.000 MHz
• Transmitting
• Connect an RF power meter to the
antenna connector.
5.3–5.7 W
(Mid power) 2 • Transmitting
2.3–2.7 W
(Low power) 3 • Transmitting
0.4–0.6 W
5-3 TRANSMIT ADJUSTMENTS
1) Select an adjustment item using [
Y
]/[
Z
].
2) Set or modify the adjustment value as specifi ed using [DIAL], then push
[ENT]
.

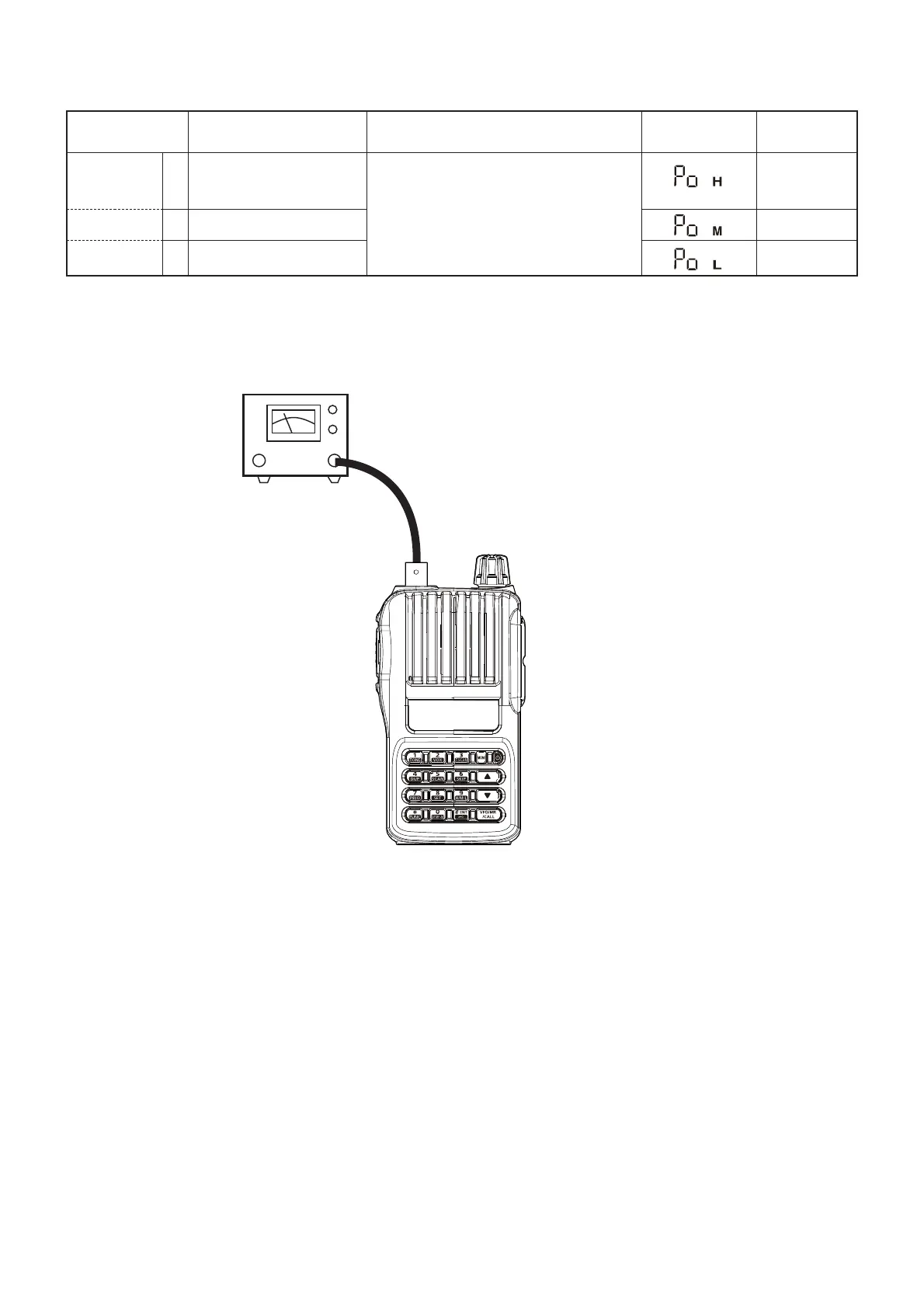

¤ CONNECTION
