7 - 1
[CHASSIS PARTS]
REF ORDER
DESCRIPTION QTY.
NO. NO.
J1 6510027690 BNC-R170 (A) 1
SP1 2510001550 K036NA511-10 1
W1 8900016360 OPC-1190A 1
EP1 0910066440 B-7318 1
MP1 8010021710 3285 CHASSIS 1
MP2 8930079900 3285 TERMINAL HOLDER 1
MP3 8930080100 3285 PLUS TERMINAL 1
MP4 8210025800 3285 BOTTOM PANEL 1
MP5 8930079890 3285 LOCK PLATE 1
MP6 8930079960 3254 PTT RUBBER 1
MP7 8930079880 3254 PTT BUTTON 1
MP8 8930080150 3285 SIDE SEAL 1
MP9 8930080400 3285 MINUS TERMINAL 1
MP10 8930080090 3285 SIDE PLATE 1
MP11 8930080380 3285 SHAFT 1
MP12 8610009240 KNOB SPRING NO.7800P 1
MP13 8930080650 SP NET (G) 1
MP14 8930046020 1123 SHEET (A)-1 1
MP15 8930080250 3254 MIC SPONGE 1
MP16 8930069710 THERMALLY SHEET (BC) 1
MP17 8830003430 3254 ANT NUT 1
MP18 8830003390 VR NUT (AB) 1
MP19 8210026120 3254 FRONT PANEL (A) (Incl. MP4–7, 11,13, 20)
[V80E] 1
MP19 8210026130 3254 FRONT PANEL (Incl. MP4–7, 11,13, 20) [V80] 1
MP20 8210025940 3254 PTT PANEL 1
MP21 8310075620 3254 WINDOW PLATE 1
MP22 8610014170 KNOB N-391 (Incl. MP12) 1
MP23 8930080270 3254 WINDOW SHEET 1
MP24 8930080280 3254 TOP SEAL 1
MP25 8930080300 3254 KEYBOARD 1
MP26 8810009511 SCREW BT B0 2X4 NI-ZC3 (BT) 9
MP27 8810009511 SCREW BT B0 2X4 NI-ZC3 (BT) 1
MP28 8810008641 0TAP 1FLAT WASHER B0 2X4 NI-ZC3 (BT) 2
MP29 8810008761 SCREW BT B0 2X8 NI-ZC3 (BT) 2
MP30 8850001950 SEALING WASHER (Y) 1
MP32 8930080240 3254 SP HOLDER 1
[MAIN UNIT]
[ACCESSORIES]
REF ORDER
DESCRIPTION QTY.
NO. NO.
J2 6450000131 HSJ1102-018540 1
J3 6510025880 TC38-108-01 1
J6* 6510021901 BM02B-ASRS-TF (LF) (SN) 1
DS1 5030003270 TAK-35426 1
MC1 7700002940 EM6027P-45C33-G 1
S3 2260001900 SW-149 (SKHLLD) 1
S801 7600000210 TP70N00E2015F-1903 1
EP2 8930080320 SRCN-3254-SP-N-W 1
MP1* 8510019610 3254 VCO CASE 1
MP2 8510019600 3254 VCO COVER 1
MP3 8930080290 3254 LCD HOLDER 1
MP4 8210025950 3254 REFLECTOR 1
MP5 8930080260 3254 WHITE SHEET 1
REF ORDER
DESCRIPTION QTY.
NO. NO.
EP1 3310002840 FA-B2E 1
EP2 (Optional) BP-264 EXP
[EUR-21], [UK-01], [USA-11], [AUS-21], [EXP-11],
[EXP-21], [EUR-22], [UK-02], [USA-12], [KOR-02],
[AUS-22], [EXP-12], [EXP-22] 1
(Optional) BP-265 [EUR-23], [UK-03], [USA-13], [AUS-23],
[EXP-13], [EXP-23] 1
EP3 (Optional) BC-191 EXP Except [EUR], [USA], [CHN], [EXP] 1
EP4 (Optional) BC-123SE [EUR-21], [EXP-21], [EUR-23], [EXP-23] 1
(Optional) BC-123SA [USA-11], [EXP-11], [USA-13] 1
(Optional) BC-123SV [AUS-21], [AUS-23] 1
(Optional) BC-147SE [EUR-22], [EXP-22] 1
(Optional) BC-147SA [USA-12], [EXP-12] 1
(Optional) BC-147SV [AUS-22] 1
(Optional) BC-123SA [EXP-13] 1
EP5 (Optional) BP-263 [EUR], [USA], [EXP] 1
MP1 (Optional) MB-124 Except [CHN] 1
MP2 8210025840 3285 JACK PANEL 1
MP3 8810004861 SCREW PH M2X6 ZK3 2

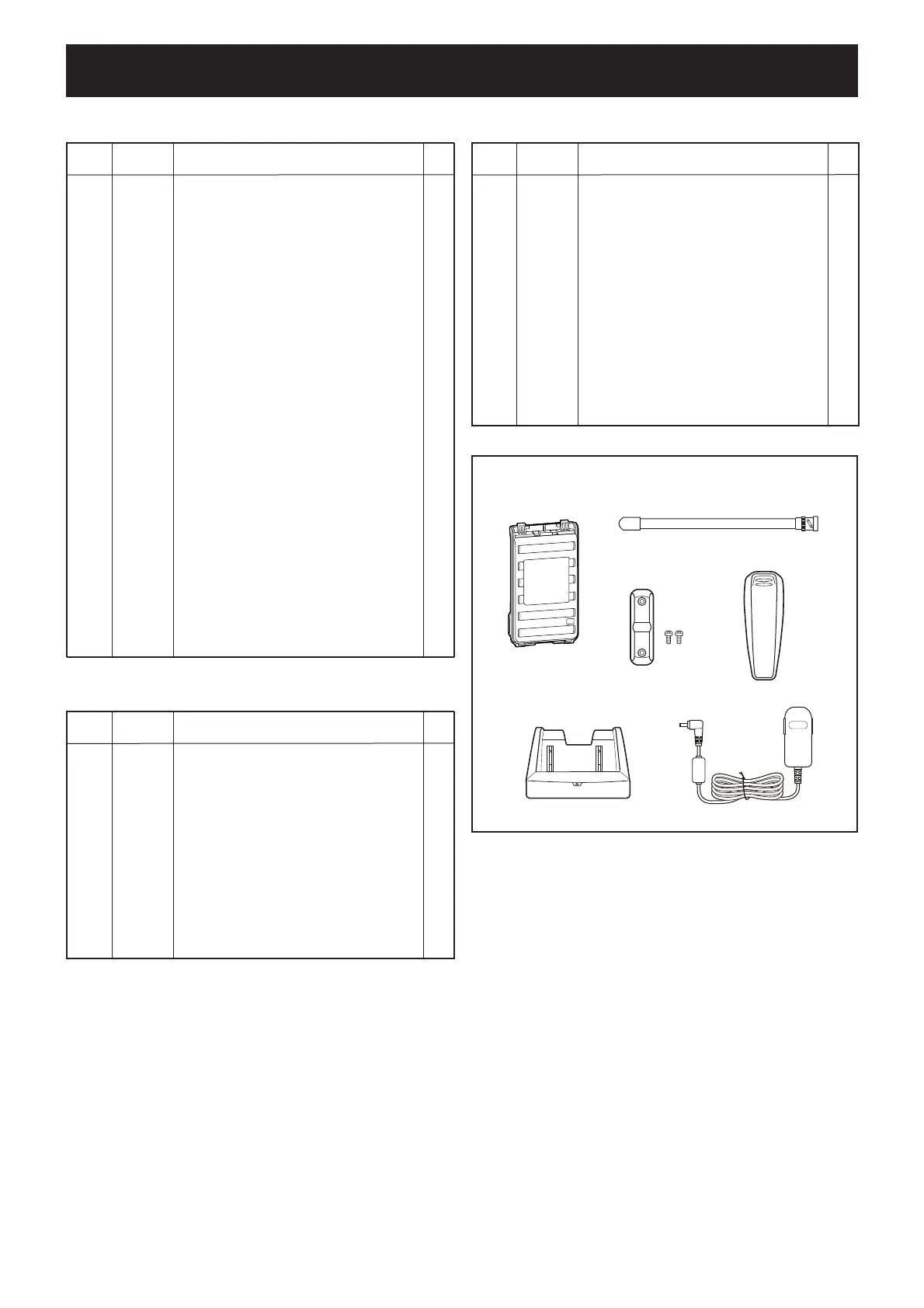

SECTION 7
.
MECHANICAL PARTS
*: Refer to “BOARD LAYOUTS” for the location.
Screw abbreviations A, B0, BT: Self-tapping PH: Pan head ZK: Black NI-ZU: Nickel-Zinc SUS: Stainless
AntennaBattery pack
Belt clip
Jack cover
(with screws)
Battery charger AC adapter
