Icom ID-1

5 - 2
pin 6 (MIC)
pin 4 (PTT)
pin 7 (GND)
[PTT]
pin 5 (MICE)
to the antenna connector
Standard signal generator
0.1–1500 MHz
–127 to –17 dBm (0.1 µV to 32 mV)
RF power meter
50 Ω, 20 W
Modulation
analyzer
Attenuator
50 dB or 60 dB
DC power supply
13.8 V, 10 A or more
JIG CABLE INFORMATION
to the microphone connector
Audio generator
300 Hz to 3 kHz
AC millivoltmeter
Coution
DO NOT transmit
while an SSG is
connected to the
antenna connec-
tor.
PC
to USB
port

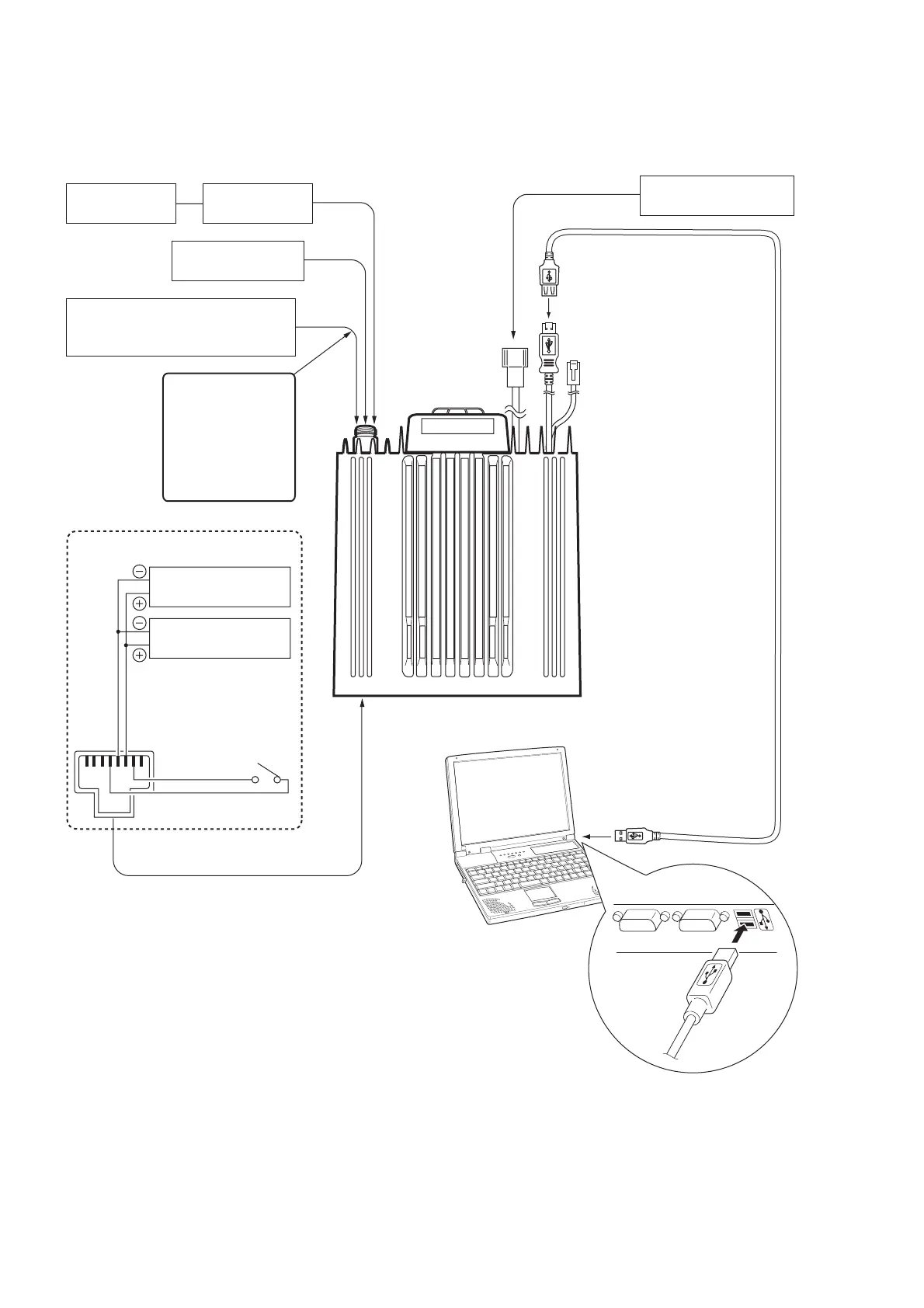

• CONNECTION
