Icom ID-1

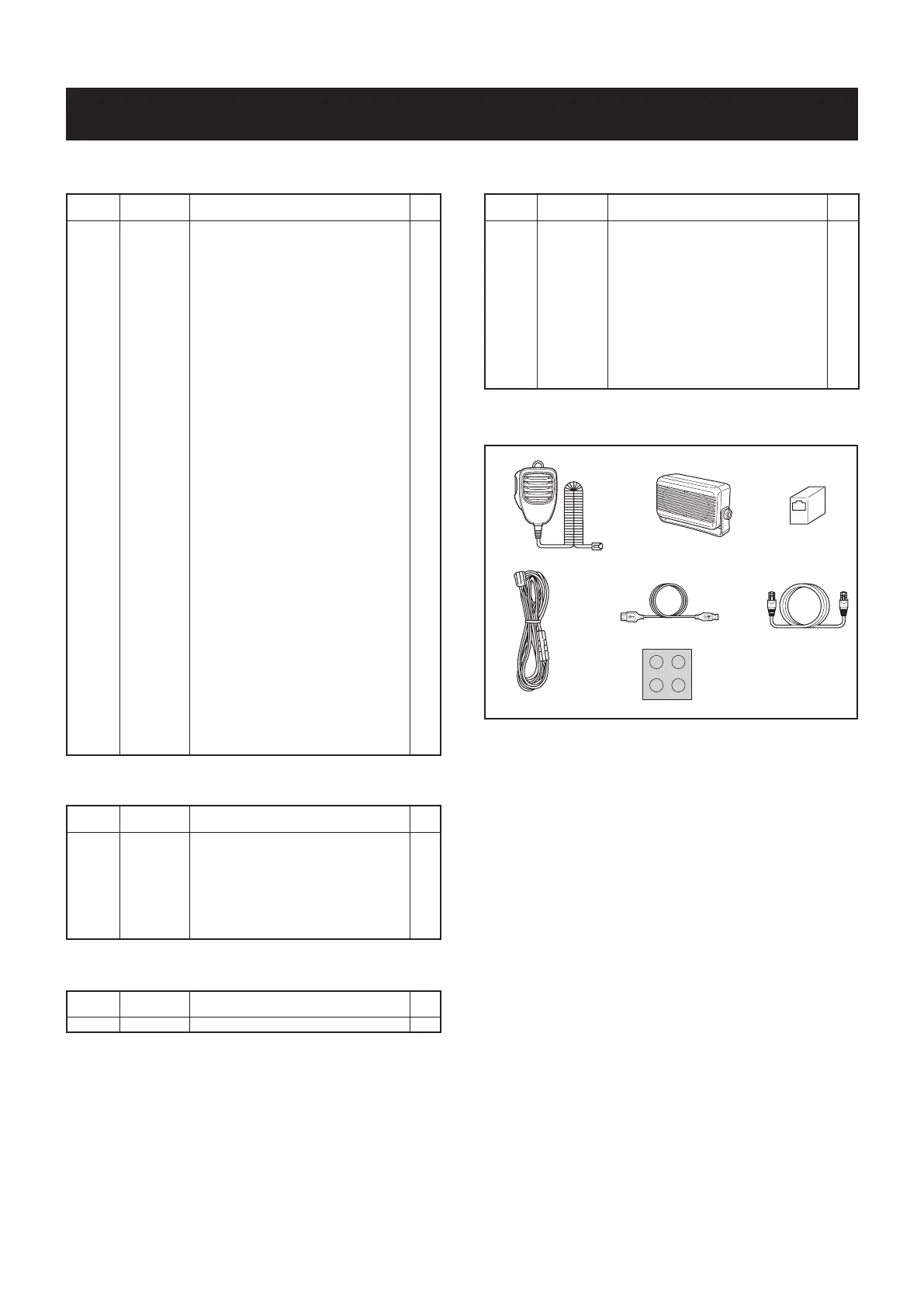

SECTION 8 MECHANICAL PARTS AND DISASSEMBLY
8 - 1
Screw abbreviations BT: Self-tapping
NI-ZU: Nickel-zinc
ZK : Black
8-1 ID-1
[MAIN UNIT]
[CHASSIS PARTS]
MC1 P1SP1
W2 W3
MP1
W1
[ACCESSORIES]
REF. ORDER. NO. DESCRIPTION QTY.
MC1 Optional product Microphone HM-118N 1
SP1 Optional product Speaker SP-22 1
P1 5610000270 Connector ALA651B 1
W1 Optional product Cable OPC-345 1
W2 8900010930 Cable OPC-1127 1
W3 8900010550 Cable OPC-1069 1
MP1 8930055180 Self-adhesive rubber feet 1
[LOGIC-1 UNIT]
REF.NO. ORDER. NO. DESCRIPTION QTY.
MP6 8930001170 Earth Spring (A) 1
REF.NO. ODER NO. DESCRIPTION QTY.
MP30 8930014140 Earth Spring (D) 1
MP39 8930054521 Shield Sponge (E)-1 1
MP64 8930056580 Spacer (AD) 4
MP65 8810007130 Screw H M3x6 4
MP70 8930001170 Earth Spring (A) FX294 1
W1330 8900011960 OPC-1216 1
REF.NO. ODER NO. DESCRIPTION QTY.
EP1160 6910000970 DL-20P 2.6-3-1.2H 1
EP1162 6910000970 DL-20P 2.6-3-1.2H 1
IC1160 1150002190 RA18H1213G1-21 1
J1 6510004910 NR-DS-E 01 1
MF1 2710000590 MF40D-12H-001 1
MP1 8010018711 2506 Chassis-1 1
MP2 8810008660 Screw PH BT M3x8 NI-ZU 2
MP3 8810008660 Screw PH BT M3x8 NI-ZU 2
MP4 8810008660 Screw PH BT M3x8 NI-ZU 7
MP5 8110006640 2047 Cover 1
MP6 8810008450 Screw M4x8 ZK 1
MP9 8110005751 1729 Fan Cover-1 1
MP10 8810009110 Screw M2.6x16 ZK 4
MP13 8930035230 1546 TR-A Clip 1
MP14 8510012210 2047 Main Shield Y445 2
MP15 8930043710 1562 EMER Button (A) 1
MP17 8810007130 Screw H M3x6 4
MP19 8930048350 2146 Lens 3
MP21 8930039612 Thermally Sheet (C)-2 TC100HS (10X10) 1
MP22 8930049650 Thermally Sheet (H) 2
MP23 8930053472 Thermally Sheet (R)-2 TC200HS (10X10) 3
MP24 8930055051 Thermally Sheet (V)-1 TC400HS (10X15) 1
MP26 8510014251 2506 M-Plate-1 1
MP27 8930037120 1647 M-Holder 1
MP28 8930056781 2506 YGR Plate-1 Y938A 1
MP29 8510014241 2506 ANT Plate-1 1
MP36 8310053110 2506 NAME PLATE 1
W1 8900010890 OPC-1115 1
W2 8900010890 OPC-1115 1
W3 8900011950 OPC-1224 1
