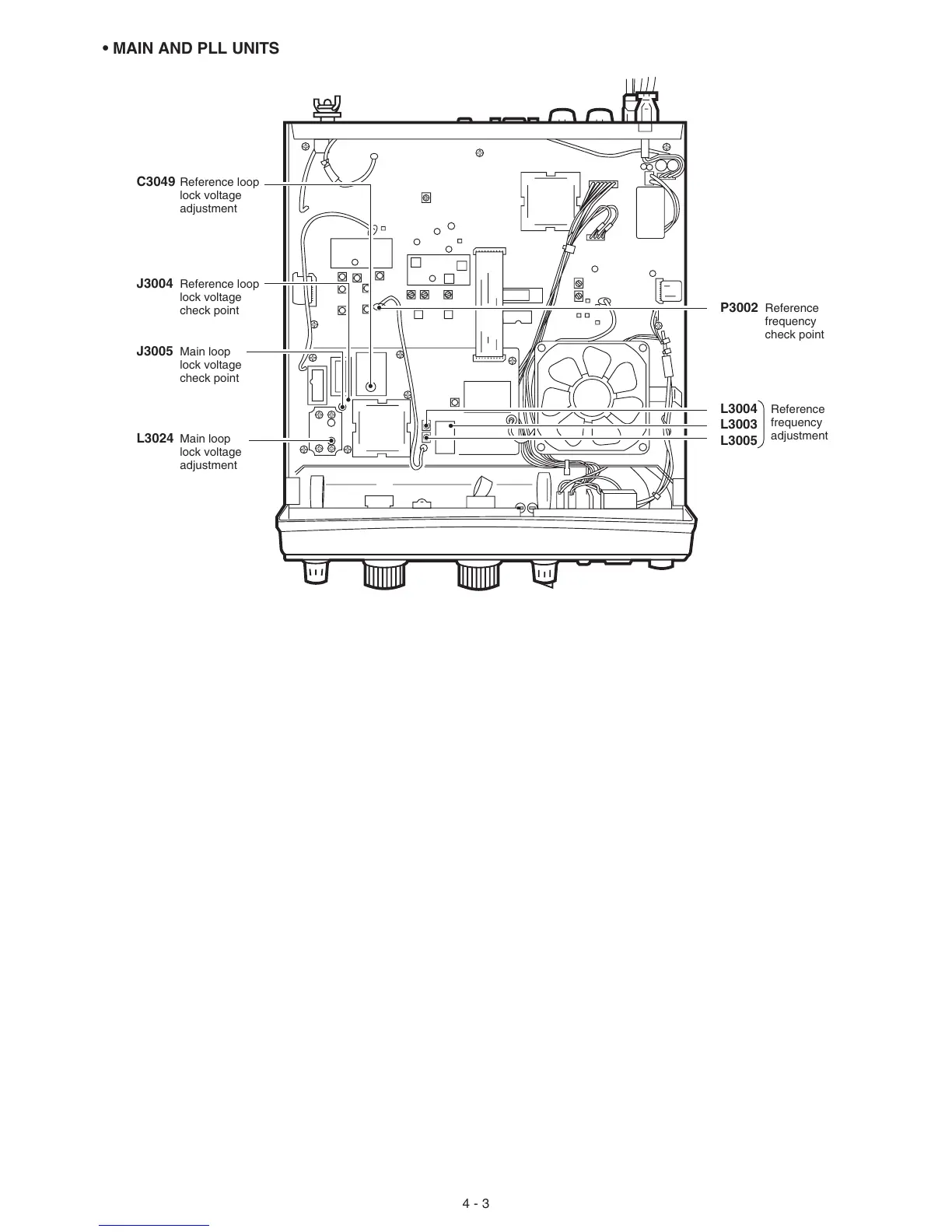

4 - 3
Main loop
lock voltage
adjustment
L3024
Main loop
lock voltage
check point
J3005
Reference loop
lock voltage
check point
J3004
Reference loop
lock voltage
adjustment
C3049
Reference
frequency
check point
P3002
Reference
frequency
adjustment
L3004
L3003
L3005
• MAIN AND PLL UNITS
