Icom M700PROE Servise Manual

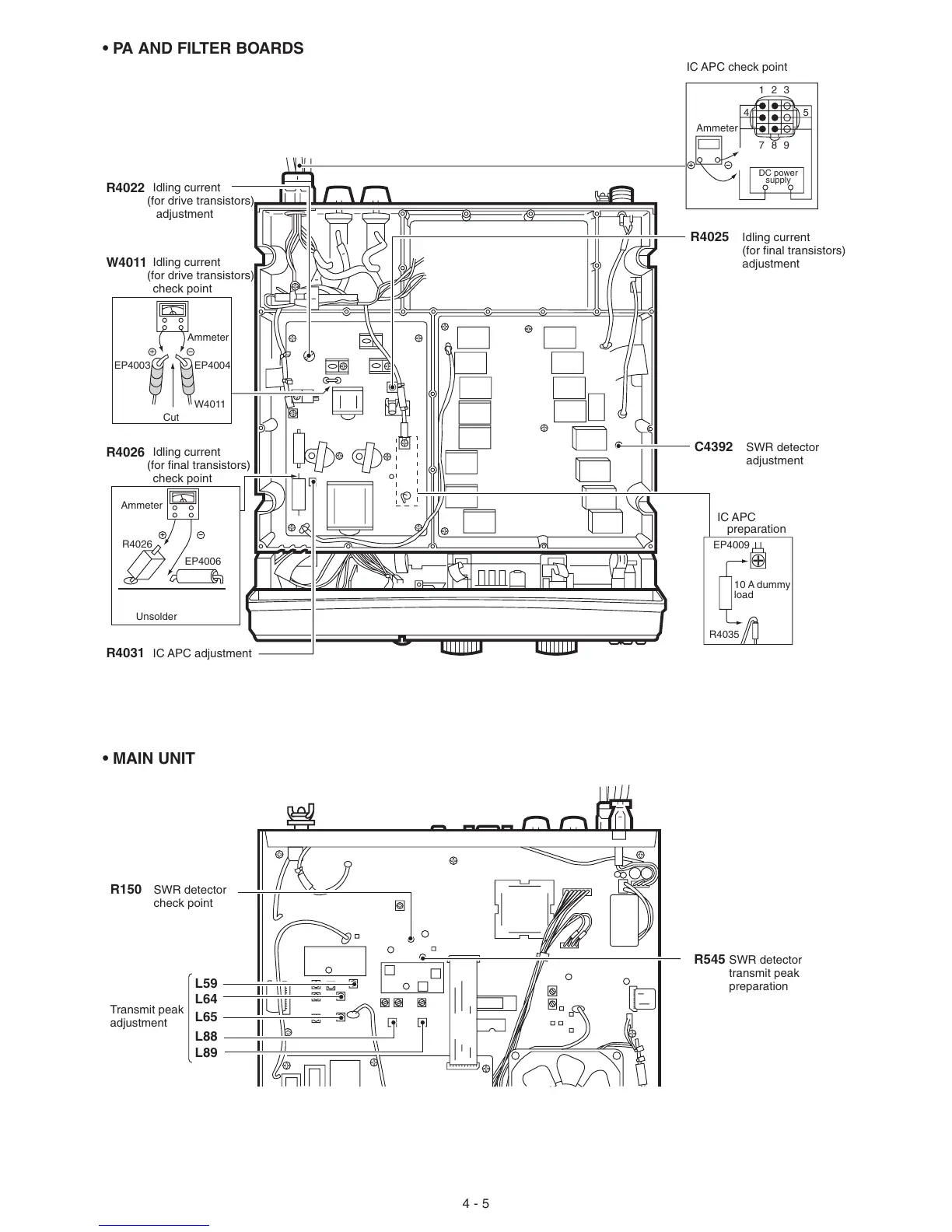

4 - 5
SWR detector
adjustment
IC APC
preparation
IC APC check point
Ammeter
1
45
23
789
DC power
supply
EP4009
R4035
10 A dummy
load
C4392
Idling current
(for final transistors)
adjustment
R4025
IC APC adjustment
R4031
Idling current
(for final transistors)
check point
Ammeter
R4026
EP4006
EP4004
Ammeter
EP4003
Unsolder
Cut
W4011
R4026
Idling current
(for drive transistors)
check point
W4011
Idling current
(for drive transistors)
adjustment
R4022
• PA AND FILTER BOARDS
Transmit peak
adjustment
SWR detector
check point
R150
L59
L64
L88
L89
L65
SWR detector
transmit peak
preparation
R545
• MAIN UNIT
