Screw abbreviations A, B0, BT: Self-tapping PH: Pan head ZK: Black NI-ZU: Nickel-Zinc SUS: Stainless
6 - 1

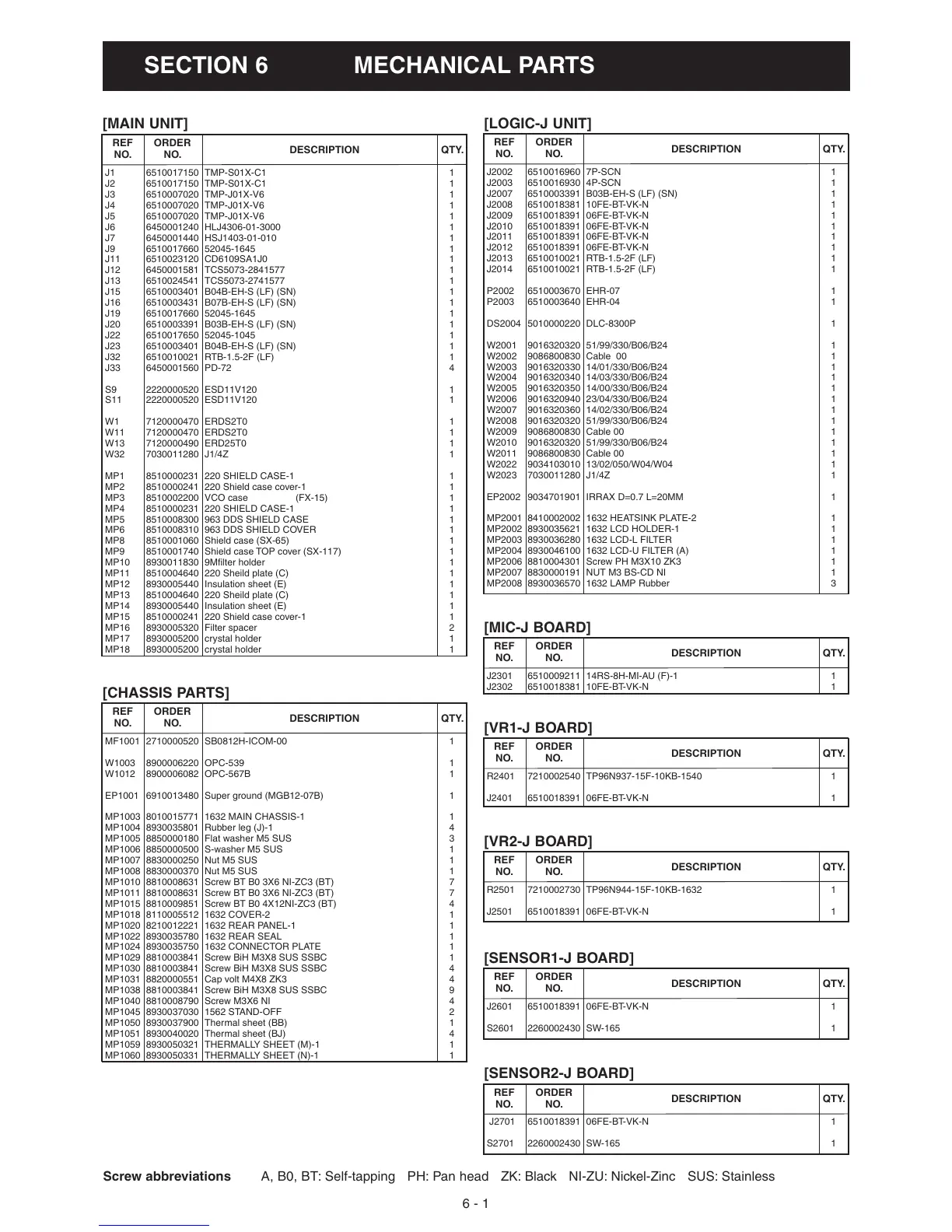

SECTION 6 MECHANICAL PARTS
[MAIN UNIT]
REF ORDER
DESCRIPTION QTY.
NO. NO.
J1 6510017150 TMP-S01X-C1 1
J2 6510017150 TMP-S01X-C1 1
J3 6510007020 TMP-J01X-V6 1
J4 6510007020 TMP-J01X-V6 1
J5 6510007020 TMP-J01X-V6 1
J6 6450001240 HLJ4306-01-3000 1
J7 6450001440 HSJ1403-01-010 1
J9 6510017660 52045-1645 1
J11 6510023120 CD6109SA1J0 1
J12 6450001581 TCS5073-2841577 1
J13 6510024541 TCS5073-2741577 1
J15 6510003401 B04B-EH-S (LF) (SN) 1
J16 6510003431 B07B-EH-S (LF) (SN) 1
J19 6510017660 52045-1645 1
J20 6510003391 B03B-EH-S (LF) (SN) 1
J22 6510017650 52045-1045 1
J23 6510003401 B04B-EH-S (LF) (SN) 1
J32 6510010021 RTB-1.5-2F (LF) 1
J33 6450001560 PD-72 4
S9 2220000520 ESD11V120 1
S11 2220000520 ESD11V120 1
W1 7120000470 ERDS2T0 1
W11 7120000470 ERDS2T0 1
W13 7120000490 ERD25T0 1
W32 7030011280 J1/4Z 1
MP1 8510000231 220 SHIELD CASE-1 1
MP2 8510000241 220 Shield case cover-1 1
MP3 8510002200 VCO case (FX-15) 1
MP4 8510000231 220 SHIELD CASE-1 1
MP5 8510008300 963 DDS SHIELD CASE 1
MP6 8510008310 963 DDS SHIELD COVER 1
MP8 8510001060 Shield case (SX-65) 1
MP9 8510001740 Shield case TOP cover (SX-117) 1
MP10 8930011830 9Mfi lter holder 1
MP11 8510004640 220 Sheild plate (C) 1
MP12 8930005440 Insulation sheet (E) 1
MP13 8510004640 220 Sheild plate (C) 1
MP14 8930005440 Insulation sheet (E) 1
MP15 8510000241 220 Shield case cover-1 1
MP16 8930005320 Filter spacer 2
MP17 8930005200 crystal holder 1
MP18 8930005200 crystal holder 1
[CHASSIS PARTS]
[LOGIC-J UNIT]
REF ORDER
DESCRIPTION QTY.
NO. NO.
MF1001 2710000520 SB0812H-ICOM-00 1
W1003 8900006220 OPC-539 1
W1012 8900006082 OPC-567B 1
EP1001 6910013480 Super ground (MGB12-07B) 1
MP1003 8010015771 1632 MAIN CHASSIS-1 1
MP1004 8930035801 Rubber leg (J)-1 4
MP1005 8850000180 Flat washer M5 SUS 3
MP1006 8850000500 S-washer M5 SUS 1
MP1007 8830000250 Nut M5 SUS 1
MP1008 8830000370 Nut M5 SUS 1
MP1010 8810008631 Screw BT B0 3X6 NI-ZC3 (BT) 7
MP1011 8810008631 Screw BT B0 3X6 NI-ZC3 (BT) 7
MP1015 8810009851 Screw BT B0 4X12NI-ZC3 (BT) 4
MP1018 8110005512 1632 COVER-2 1
MP1020 8210012221 1632 REAR PANEL-1 1
MP1022 8930035780 1632 REAR SEAL 1
MP1024 8930035750 1632 CONNECTOR PLATE 1
MP1029 8810003841 Screw BiH M3X8 SUS SSBC 1
MP1030 8810003841 Screw BiH M3X8 SUS SSBC 4
MP1031 8820000551 Cap volt M4X8 ZK3 4
MP1038 8810003841 Screw BiH M3X8 SUS SSBC 9
MP1040 8810008790 Screw M3X6 NI 4
MP1045 8930037030 1562 STAND-OFF 2
MP1050 8930037900 Thermal sheet (BB) 1
MP1051 8930040020 Thermal sheet (BJ) 4
MP1059 8930050321 THERMALLY SHEET (M)-1 1
MP1060 8930050331 THERMALLY SHEET (N)-1 1
REF ORDER
DESCRIPTION QTY.
NO. NO.
J2002 6510016960 7P-SCN 1
J2003 6510016930 4P-SCN 1
J2007 6510003391 B03B-EH-S (LF) (SN) 1
J2008 6510018381 10FE-BT-VK-N 1
J2009 6510018391 06FE-BT-VK-N 1
J2010 6510018391 06FE-BT-VK-N 1
J2011 6510018391 06FE-BT-VK-N 1
J2012 6510018391 06FE-BT-VK-N 1
J2013 6510010021 RTB-1.5-2F (LF) 1
J2014 6510010021 RTB-1.5-2F (LF) 1
P2002 6510003670 EHR-07 1
P2003 6510003640 EHR-04 1
DS2004 5010000220 DLC-8300P 1
W2001 9016320320 51/99/330/B06/B24 1
W2002 9086800830 Cable 00 1
W2003 9016320330 14/01/330/B06/B24 1
W2004 9016320340 14/03/330/B06/B24 1
W2005 9016320350 14/00/330/B06/B24 1
W2006 9016320940 23/04/330/B06/B24 1
W2007 9016320360 14/02/330/B06/B24 1
W2008 9016320320 51/99/330/B06/B24 1
W2009 9086800830 Cable 00 1
W2010 9016320320 51/99/330/B06/B24 1
W2011 9086800830 Cable 00 1
W2022 9034103010 13/02/050/W04/W04 1
W2023 7030011280 J1/4Z 1
EP2002 9034701901 IRRAX D=0.7 L=20MM 1
MP2001 8410002002 1632 HEATSINK PLATE-2 1
MP2002 8930035621 1632 LCD HOLDER-1 1
MP2003 8930036280 1632 LCD-L FILTER 1
MP2004 8930046100 1632 LCD-U FILTER (A) 1
MP2006 8810004301 Screw PH M3X10 ZK3 1
MP2007 8830000191 NUT M3 BS-CD NI 1
MP2008 8930036570 1632 LAMP Rubber 3
[MIC-J BOARD]
REF ORDER
DESCRIPTION QTY.
NO. NO.
J2301 6510009211 14RS-8H-MI-AU (F)-1 1
J2302 6510018381 10FE-BT-VK-N 1
[VR1-J BOARD]
REF ORDER
DESCRIPTION QTY.
NO. NO.
R2401 7210002540 TP96N937-15F-10KB-1540 1
J2401 6510018391 06FE-BT-VK-N 1
[VR2-J BOARD]
REF ORDER
DESCRIPTION QTY.
NO. NO.
R2501 7210002730 TP96N944-15F-10KB-1632 1
J2501 6510018391 06FE-BT-VK-N 1
[SENSOR1-J BOARD]
REF ORDER
DESCRIPTION QTY.
NO. NO.
J2601 6510018391 06FE-BT-VK-N 1
S2601 2260002430 SW-165 1
[SENSOR2-J BOARD]
REF ORDER
DESCRIPTION QTY.
NO. NO.
J2701 6510018391 06FE-BT-VK-N 1
S2701 2260002430 SW-165 1
