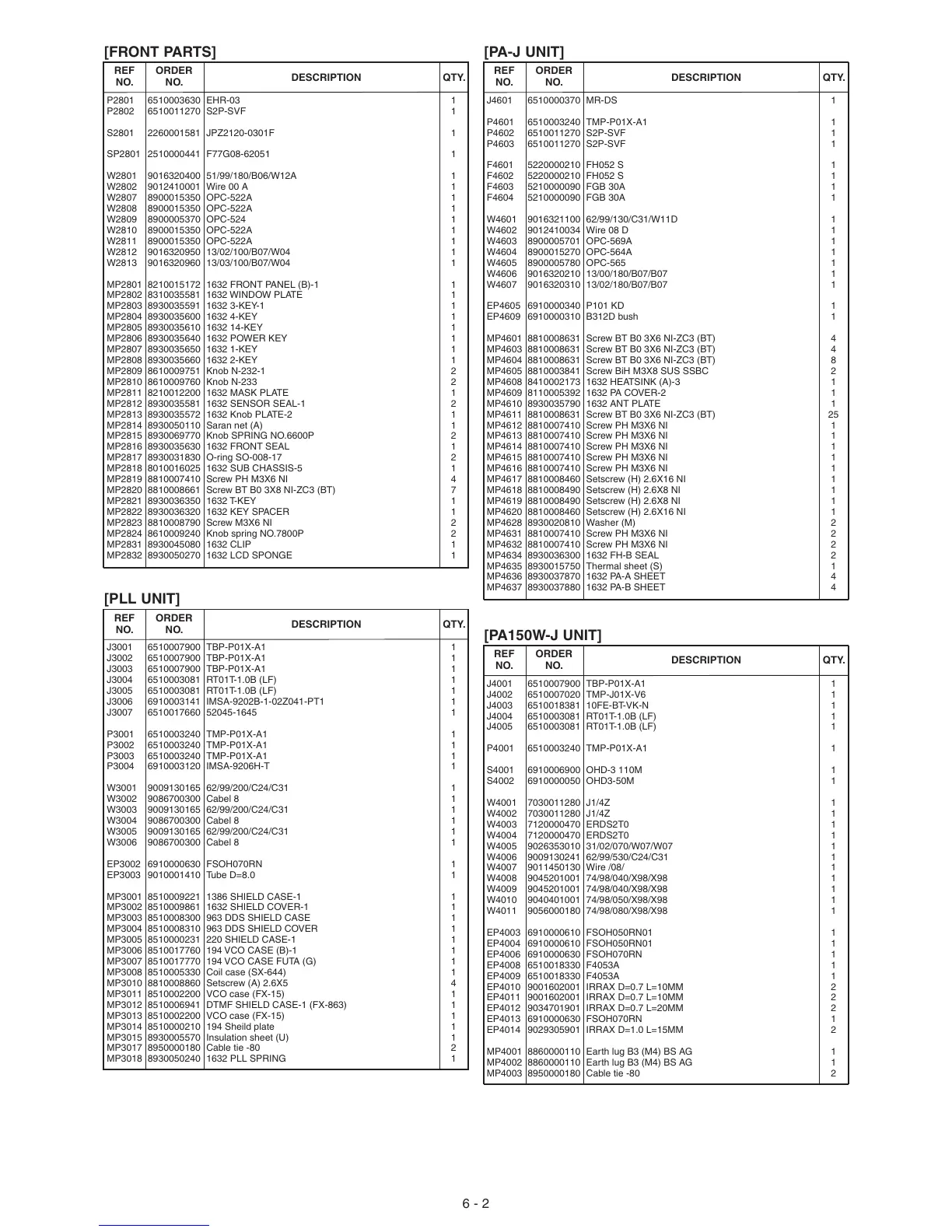

Icom M700PROE Servise Manual

6 - 2
[FRONT PARTS]
REF ORDER
DESCRIPTION QTY.
NO. NO.
P2801 6510003630 EHR-03 1
P2802 6510011270 S2P-SVF 1
S2801 2260001581 JPZ2120-0301F 1
SP2801 2510000441 F77G08-62051 1
W2801 9016320400 51/99/180/B06/W12A 1
W2802 9012410001 Wire 00 A 1
W2807 8900015350 OPC-522A 1
W2808 8900015350 OPC-522A 1
W2809 8900005370 OPC-524 1
W2810 8900015350 OPC-522A 1
W2811 8900015350 OPC-522A 1
W2812 9016320950 13/02/100/B07/W04 1
W2813 9016320960 13/03/100/B07/W04 1
MP2801 8210015172 1632 FRONT PANEL (B)-1 1
MP2802 8310035581 1632 WINDOW PLATE 1
MP2803 8930035591 1632 3-KEY-1 1
MP2804 8930035600 1632 4-KEY 1
MP2805 8930035610 1632 14-KEY 1
MP2806 8930035640 1632 POWER KEY 1
MP2807 8930035650 1632 1-KEY 1
MP2808 8930035660 1632 2-KEY 1
MP2809 8610009751 Knob N-232-1 2
MP2810 8610009760 Knob N-233 2
MP2811 8210012200 1632 MASK PLATE 1
MP2812 8930035581 1632 SENSOR SEAL-1 2
MP2813 8930035572 1632 Knob PLATE-2 1
MP2814 8930050110 Saran net (A) 1
MP2815 8930069770 Knob SPRING NO.6600P 2
MP2816 8930035630 1632 FRONT SEAL 1
MP2817 8930031830 O-ring SO-008-17 2
MP2818 8010016025 1632 SUB CHASSIS-5 1
MP2819 8810007410 Screw PH M3X6 NI 4
MP2820 8810008661 Screw BT B0 3X8 NI-ZC3 (BT) 7
MP2821 8930036350 1632 T-KEY 1
MP2822 8930036320 1632 KEY SPACER 1
MP2823 8810008790 Screw M3X6 NI 2
MP2824 8610009240 Knob spring NO.7800P 2
MP2831 8930045080 1632 CLIP 1
MP2832 8930050270 1632 LCD SPONGE 1
[PLL UNIT]
REF ORDER
DESCRIPTION QTY.
NO. NO.
J3001 6510007900 TBP-P01X-A1 1
J3002 6510007900 TBP-P01X-A1 1
J3003 6510007900 TBP-P01X-A1 1
J3004 6510003081 RT01T-1.0B (LF) 1
J3005 6510003081 RT01T-1.0B (LF) 1
J3006 6910003141 IMSA-9202B-1-02Z041-PT1 1
J3007 6510017660 52045-1645 1
P3001 6510003240 TMP-P01X-A1 1
P3002 6510003240 TMP-P01X-A1 1
P3003 6510003240 TMP-P01X-A1 1
P3004 6910003120 IMSA-9206H-T 1
W3001 9009130165 62/99/200/C24/C31 1
W3002 9086700300 Cabel 8 1
W3003 9009130165 62/99/200/C24/C31 1
W3004 9086700300 Cabel 8 1
W3005 9009130165 62/99/200/C24/C31 1
W3006 9086700300 Cabel 8 1
EP3002 6910000630 FSOH070RN 1
EP3003 9010001410 Tube D=8.0 1
MP3001 8510009221 1386 SHIELD CASE-1 1
MP3002 8510009861 1632 SHIELD COVER-1 1
MP3003 8510008300 963 DDS SHIELD CASE 1
MP3004 8510008310 963 DDS SHIELD COVER 1
MP3005 8510000231 220 SHIELD CASE-1 1
MP3006 8510017760 194 VCO CASE (B)-1 1
MP3007 8510017770 194 VCO CASE FUTA (G) 1
MP3008 8510005330 Coil case (SX-644) 1
MP3010 8810008860 Setscrew (A) 2.6X5 4
MP3011 8510002200 VCO case (FX-15) 1
MP3012 8510006941 DTMF SHIELD CASE-1 (FX-863) 1
MP3013 8510002200 VCO case (FX-15) 1
MP3014 8510000210 194 Sheild plate 1
MP3015 8930005570 Insulation sheet (U) 1
MP3017 8950000180 Cable tie -80 2
MP3018 8930050240 1632 PLL SPRING 1
[PA-J UNIT]
REF ORDER
DESCRIPTION QTY.
NO. NO.
J4601 6510000370 MR-DS 1
P4601 6510003240 TMP-P01X-A1 1
P4602 6510011270 S2P-SVF 1
P4603 6510011270 S2P-SVF 1
F4601 5220000210 FH052 S 1
F4602 5220000210 FH052 S 1
F4603 5210000090 FGB 30A 1
F4604 5210000090 FGB 30A 1
W4601 9016321100 62/99/130/C31/W11D 1
W4602 9012410034 Wire 08 D 1
W4603 8900005701 OPC-569A 1
W4604 8900015270 OPC-564A 1
W4605 8900005780 OPC-565 1
W4606 9016320210 13/00/180/B07/B07 1
W4607 9016320310 13/02/180/B07/B07 1
EP4605 6910000340 P101 KD 1
EP4609 6910000310 B312D bush 1
MP4601 8810008631 Screw BT B0 3X6 NI-ZC3 (BT) 4
MP4603 8810008631 Screw BT B0 3X6 NI-ZC3 (BT) 4
MP4604 8810008631 Screw BT B0 3X6 NI-ZC3 (BT) 8
MP4605 8810003841 Screw BiH M3X8 SUS SSBC 2
MP4608 8410002173 1632 HEATSINK (A)-3 1
MP4609 8110005392 1632 PA COVER-2 1
MP4610 8930035790 1632 ANT PLATE 1
MP4611 8810008631 Screw BT B0 3X6 NI-ZC3 (BT) 25
MP4612 8810007410 Screw PH M3X6 NI 1
MP4613 8810007410 Screw PH M3X6 NI 1
MP4614 8810007410 Screw PH M3X6 NI 1
MP4615 8810007410 Screw PH M3X6 NI 1
MP4616 8810007410 Screw PH M3X6 NI 1
MP4617 8810008460 Setscrew (H) 2.6X16 NI 1
MP4618 8810008490 Setscrew (H) 2.6X8 NI 1
MP4619 8810008490 Setscrew (H) 2.6X8 NI 1
MP4620 8810008460 Setscrew (H) 2.6X16 NI 1
MP4628 8930020810 Washer (M) 2
MP4631 8810007410 Screw PH M3X6 NI 2
MP4632 8810007410 Screw PH M3X6 NI 2
MP4634 8930036300 1632 FH-B SEAL 2
MP4635 8930015750 Thermal sheet (S) 1
MP4636 8930037870 1632 PA-A SHEET 4
MP4637 8930037880 1632 PA-B SHEET 4
[PA150W-J UNIT]
REF ORDER
DESCRIPTION QTY.
NO. NO.
J4001 6510007900 TBP-P01X-A1 1
J4002 6510007020 TMP-J01X-V6 1
J4003 6510018381 10FE-BT-VK-N 1
J4004 6510003081 RT01T-1.0B (LF) 1
J4005 6510003081 RT01T-1.0B (LF) 1
P4001 6510003240 TMP-P01X-A1 1
S4001 6910006900 OHD-3 110M 1
S4002 6910000050 OHD3-50M 1
W4001 7030011280 J1/4Z 1
W4002 7030011280 J1/4Z 1
W4003 7120000470 ERDS2T0 1
W4004 7120000470 ERDS2T0 1
W4005 9026353010 31/02/070/W07/W07 1
W4006 9009130241 62/99/530/C24/C31 1
W4007 9011450130 Wire /08/ 1
W4008 9045201001 74/98/040/X98/X98 1
W4009 9045201001 74/98/040/X98/X98 1
W4010 9040401001 74/98/050/X98/X98 1
W4011 9056000180 74/98/080/X98/X98 1
EP4003 6910000610 FSOH050RN01 1
EP4004 6910000610 FSOH050RN01 1
EP4006 6910000630 FSOH070RN 1
EP4008 6510018330 F4053A 1
EP4009 6510018330 F4053A 1
EP4010 9001602001 IRRAX D=0.7 L=10MM 2
EP4011 9001602001 IRRAX D=0.7 L=10MM 2
EP4012 9034701901 IRRAX D=0.7 L=20MM 2
EP4013 6910000630 FSOH070RN 1
EP4014 9029305901 IRRAX D=1.0 L=15MM 2
MP4001 8860000110 Earth lug B3 (M4) BS AG 1
MP4002 8860000110 Earth lug B3 (M4) BS AG 1
MP4003 8950000180 Cable tie -80 2
