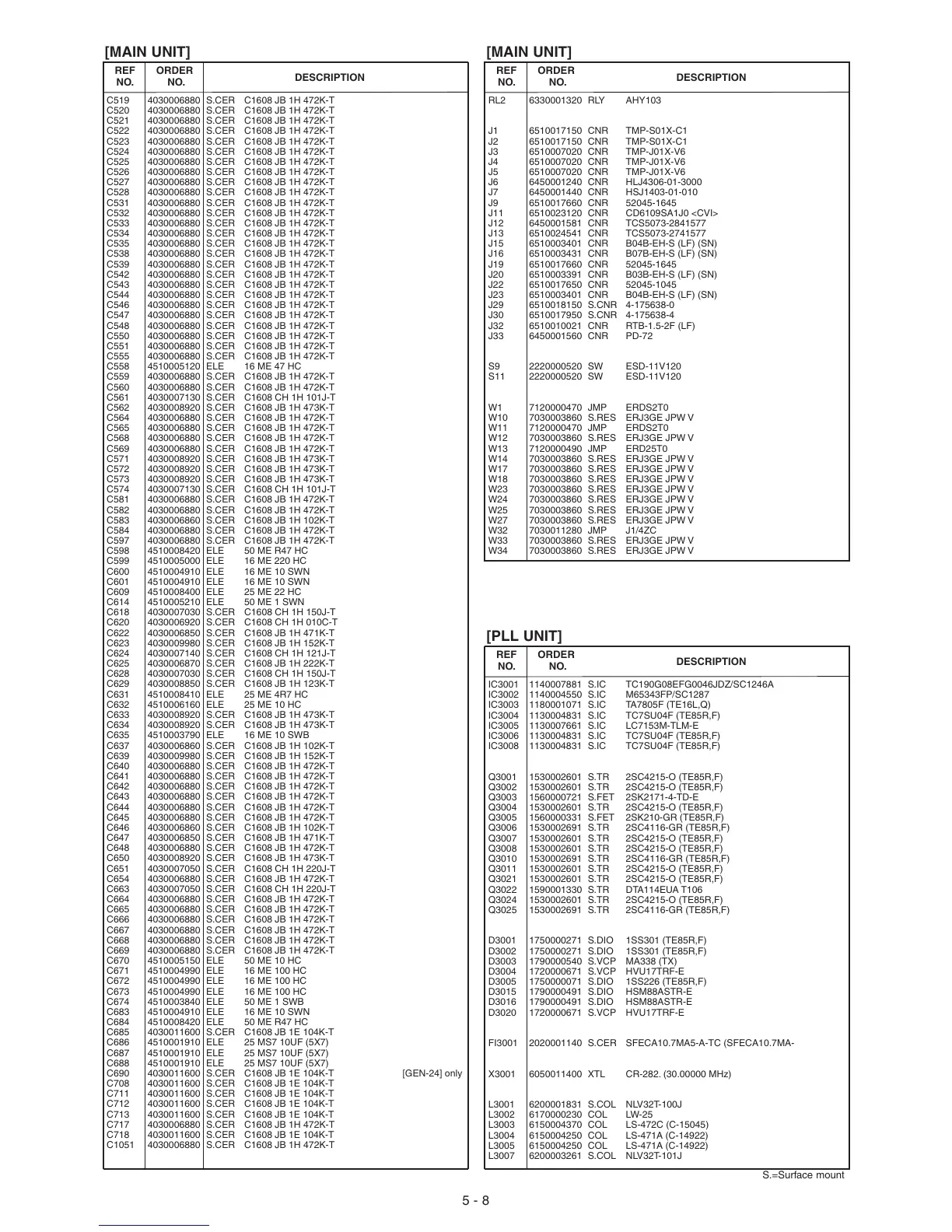

Icom M700PROE Servise Manual

5 - 8
[MAIN UNIT]
REF ORDER
DESCRIPTION
NO. NO.
C519 4030006880 S.CER C1608 JB 1H 472K-T
C520 4030006880 S.CER C1608 JB 1H 472K-T
C521 4030006880 S.CER C1608 JB 1H 472K-T
C522 4030006880 S.CER C1608 JB 1H 472K-T
C523 4030006880 S.CER C1608 JB 1H 472K-T
C524 4030006880 S.CER C1608 JB 1H 472K-T
C525 4030006880 S.CER C1608 JB 1H 472K-T
C526 4030006880 S.CER C1608 JB 1H 472K-T
C527 4030006880 S.CER C1608 JB 1H 472K-T
C528 4030006880 S.CER C1608 JB 1H 472K-T
C531 4030006880 S.CER C1608 JB 1H 472K-T
C532 4030006880 S.CER C1608 JB 1H 472K-T
C533 4030006880 S.CER C1608 JB 1H 472K-T
C534 4030006880 S.CER C1608 JB 1H 472K-T
C535 4030006880 S.CER C1608 JB 1H 472K-T
C538 4030006880 S.CER C1608 JB 1H 472K-T
C539 4030006880 S.CER C1608 JB 1H 472K-T
C542 4030006880 S.CER C1608 JB 1H 472K-T
C543 4030006880 S.CER C1608 JB 1H 472K-T
C544 4030006880 S.CER C1608 JB 1H 472K-T
C546 4030006880 S.CER C1608 JB 1H 472K-T
C547 4030006880 S.CER C1608 JB 1H 472K-T
C548 4030006880 S.CER C1608 JB 1H 472K-T
C550 4030006880 S.CER C1608 JB 1H 472K-T
C551 4030006880 S.CER C1608 JB 1H 472K-T
C555 4030006880 S.CER C1608 JB 1H 472K-T
C558 4510005120 ELE 16 ME 47 HC
C559 4030006880 S.CER C1608 JB 1H 472K-T
C560 4030006880 S.CER C1608 JB 1H 472K-T
C561 4030007130 S.CER C1608 CH 1H 101J-T
C562 4030008920 S.CER C1608 JB 1H 473K-T
C564 4030006880 S.CER C1608 JB 1H 472K-T
C565 4030006880 S.CER C1608 JB 1H 472K-T
C568 4030006880 S.CER C1608 JB 1H 472K-T
C569 4030006880 S.CER C1608 JB 1H 472K-T
C571 4030008920 S.CER C1608 JB 1H 473K-T
C572 4030008920 S.CER C1608 JB 1H 473K-T
C573 4030008920 S.CER C1608 JB 1H 473K-T
C574 4030007130 S.CER C1608 CH 1H 101J-T
C581 4030006880 S.CER C1608 JB 1H 472K-T
C582 4030006880 S.CER C1608 JB 1H 472K-T
C583 4030006860 S.CER C1608 JB 1H 102K-T
C584 4030006880 S.CER C1608 JB 1H 472K-T
C597 4030006880 S.CER C1608 JB 1H 472K-T
C598 4510008420 ELE 50 ME R47 HC
C599 4510005000 ELE 16 ME 220 HC
C600 4510004910 ELE 16 ME 10 SWN
C601 4510004910 ELE 16 ME 10 SWN
C609 4510008400 ELE 25 ME 22 HC
C614 4510005210 ELE 50 ME 1 SWN
C618 4030007030 S.CER C1608 CH 1H 150J-T
C620 4030006920 S.CER C1608 CH 1H 010C-T
C622 4030006850 S.CER C1608 JB 1H 471K-T
C623 4030009980 S.CER C1608 JB 1H 152K-T
C624 4030007140 S.CER C1608 CH 1H 121J-T
C625 4030006870 S.CER C1608 JB 1H 222K-T
C628 4030007030 S.CER C1608 CH 1H 150J-T
C629 4030008850 S.CER C1608 JB 1H 123K-T
C631 4510008410 ELE 25 ME 4R7 HC
C632 4510006160 ELE 25 ME 10 HC
C633 4030008920 S.CER C1608 JB 1H 473K-T
C634 4030008920 S.CER C1608 JB 1H 473K-T
C635 4510003790 ELE 16 ME 10 SWB
C637 4030006860 S.CER C1608 JB 1H 102K-T
C639 4030009980 S.CER C1608 JB 1H 152K-T
C640 4030006880 S.CER C1608 JB 1H 472K-T
C641 4030006880 S.CER C1608 JB 1H 472K-T
C642 4030006880 S.CER C1608 JB 1H 472K-T
C643 4030006880 S.CER C1608 JB 1H 472K-T
C644 4030006880 S.CER C1608 JB 1H 472K-T
C645 4030006880 S.CER C1608 JB 1H 472K-T
C646 4030006860 S.CER C1608 JB 1H 102K-T
C647 4030006850 S.CER C1608 JB 1H 471K-T
C648 4030006880 S.CER C1608 JB 1H 472K-T
C650 4030008920 S.CER C1608 JB 1H 473K-T
C651 4030007050 S.CER C1608 CH 1H 220J-T
C654 4030006880 S.CER C1608 JB 1H 472K-T
C663 4030007050 S.CER C1608 CH 1H 220J-T
C664 4030006880 S.CER C1608 JB 1H 472K-T
C665 4030006880 S.CER C1608 JB 1H 472K-T
C666 4030006880 S.CER C1608 JB 1H 472K-T
C667 4030006880 S.CER C1608 JB 1H 472K-T
C668 4030006880 S.CER C1608 JB 1H 472K-T
C669 4030006880 S.CER C1608 JB 1H 472K-T
C670 4510005150 ELE 50 ME 10 HC
C671 4510004990 ELE 16 ME 100 HC
C672 4510004990 ELE 16 ME 100 HC
C673 4510004990 ELE 16 ME 100 HC
C674 4510003840 ELE 50 ME 1 SWB
C683 4510004910 ELE 16 ME 10 SWN
C684 4510008420 ELE 50 ME R47 HC
C685 4030011600 S.CER C1608 JB 1E 104K-T
C686 4510001910 ELE 25 MS7 10UF (5X7)
C687 4510001910 ELE 25 MS7 10UF (5X7)
C688 4510001910 ELE 25 MS7 10UF (5X7)
C690 4030011600 S.CER C1608 JB 1E 104K-T [GEN-24] only
C708 4030011600 S.CER C1608 JB 1E 104K-T
C711 4030011600 S.CER C1608 JB 1E 104K-T
C712 4030011600 S.CER C1608 JB 1E 104K-T
C713 4030011600 S.CER C1608 JB 1E 104K-T
C717 4030006880 S.CER C1608 JB 1H 472K-T
C718 4030011600 S.CER C1608 JB 1E 104K-T
C1051 4030006880 S.CER C1608 JB 1H 472K-T
S.=Surface mount
[MAIN UNIT]
REF ORDER
DESCRIPTION
NO. NO.
RL2 6330001320 RLY AHY103
J1 6510017150 CNR TMP-S01X-C1
J2 6510017150 CNR TMP-S01X-C1
J3 6510007020 CNR TMP-J01X-V6
J4 6510007020 CNR TMP-J01X-V6
J5 6510007020 CNR TMP-J01X-V6
J6 6450001240 CNR HLJ4306-01-3000
J7 6450001440 CNR HSJ1403-01-010
J9 6510017660 CNR 52045-1645
J11 6510023120 CNR CD6109SA1J0 <CVI>
J12 6450001581 CNR TCS5073-2841577
J13 6510024541 CNR TCS5073-2741577
J15 6510003401 CNR B04B-EH-S (LF) (SN)
J16 6510003431 CNR B07B-EH-S (LF) (SN)
J19 6510017660 CNR 52045-1645
J20 6510003391 CNR B03B-EH-S (LF) (SN)
J22 6510017650 CNR 52045-1045
J23 6510003401 CNR B04B-EH-S (LF) (SN)
J29 6510018150 S.CNR 4-175638-0
J30 6510017950 S.CNR 4-175638-4
J32 6510010021 CNR RTB-1.5-2F (LF)
J33 6450001560 CNR PD-72
S9 2220000520 SW ESD-11V120
S11 2220000520 SW ESD-11V120
W1 7120000470 JMP ERDS2T0
W10 7030003860 S.RES ERJ3GE JPW V
W11 7120000470 JMP ERDS2T0
W12 7030003860 S.RES ERJ3GE JPW V
W13 7120000490 JMP ERD25T0
W14 7030003860 S.RES ERJ3GE JPW V
W17 7030003860 S.RES ERJ3GE JPW V
W18 7030003860 S.RES ERJ3GE JPW V
W23 7030003860 S.RES ERJ3GE JPW V
W24 7030003860 S.RES ERJ3GE JPW V
W25 7030003860 S.RES ERJ3GE JPW V
W27 7030003860 S.RES ERJ3GE JPW V
W32 7030011280 JMP J1/4ZC
W33 7030003860 S.RES ERJ3GE JPW V
W34 7030003860 S.RES ERJ3GE JPW V
[PLL UNIT]
REF ORDER
DESCRIPTION
NO. NO.
IC3001 1140007881 S.IC TC190G08EFG0046JDZ/SC1246A
IC3002 1140004550 S.IC M65343FP/SC1287
IC3003 1180001071 S.IC TA7805F (TE16L,Q)
IC3004 1130004831 S.IC TC7SU04F (TE85R,F)
IC3005 1130007661 S.IC LC7153M-TLM-E
IC3006 1130004831 S.IC TC7SU04F (TE85R,F)
IC3008 1130004831 S.IC TC7SU04F (TE85R,F)
Q3001 1530002601 S.TR 2SC4215-O (TE85R,F)
Q3002 1530002601 S.TR 2SC4215-O (TE85R,F)
Q3003 1560000721 S.FET 2SK2171-4-TD-E
Q3004 1530002601 S.TR 2SC4215-O (TE85R,F)
Q3005 1560000331 S.FET 2SK210-GR (TE85R,F)
Q3006 1530002691 S.TR 2SC4116-GR (TE85R,F)
Q3007 1530002601 S.TR 2SC4215-O (TE85R,F)
Q3008 1530002601 S.TR 2SC4215-O (TE85R,F)
Q3010 1530002691 S.TR 2SC4116-GR (TE85R,F)
Q3011 1530002601 S.TR 2SC4215-O (TE85R,F)
Q3021 1530002601 S.TR 2SC4215-O (TE85R,F)
Q3022 1590001330 S.TR DTA114EUA T106
Q3024 1530002601 S.TR 2SC4215-O (TE85R,F)
Q3025 1530002691 S.TR 2SC4116-GR (TE85R,F)
D3001 1750000271 S.DIO 1SS301 (TE85R,F)
D3002 1750000271 S.DIO 1SS301 (TE85R,F)
D3003 1790000540 S.VCP MA338 (TX)
D3004 1720000671 S.VCP HVU17TRF-E
D3005 1750000071 S.DIO 1SS226 (TE85R,F)
D3015 1790000491 S.DIO HSM88ASTR-E
D3016 1790000491 S.DIO HSM88ASTR-E
D3020 1720000671 S.VCP HVU17TRF-E
FI3001 2020001140 S.CER SFECA10.7MA5-A-TC (SFECA10.7MA-
X3001 6050011400 XTL CR-282. (30.00000 MHz)
L3001 6200001831 S.COL NLV32T-100J
L3002 6170000230 COL LW-25
L3003 6150004370 COL LS-472C (C-15045)
L3004 6150004250 COL LS-471A (C-14922)
L3005 6150004250 COL LS-471A (C-14922)
L3007 6200003261 S.COL NLV32T-101J
