4 - 7
Transmit gain
check point
Transmit
gain
adjustment
R159
R26
R184
Tune power
preparation
Tune power
adjustment
Output power
adjustment
L108
R205
Mic gain
adjustment
R2066
R184
R211
R212
Mic limitter
adjustment
R2070
Carrier
suppression
adjustment
R239
R238

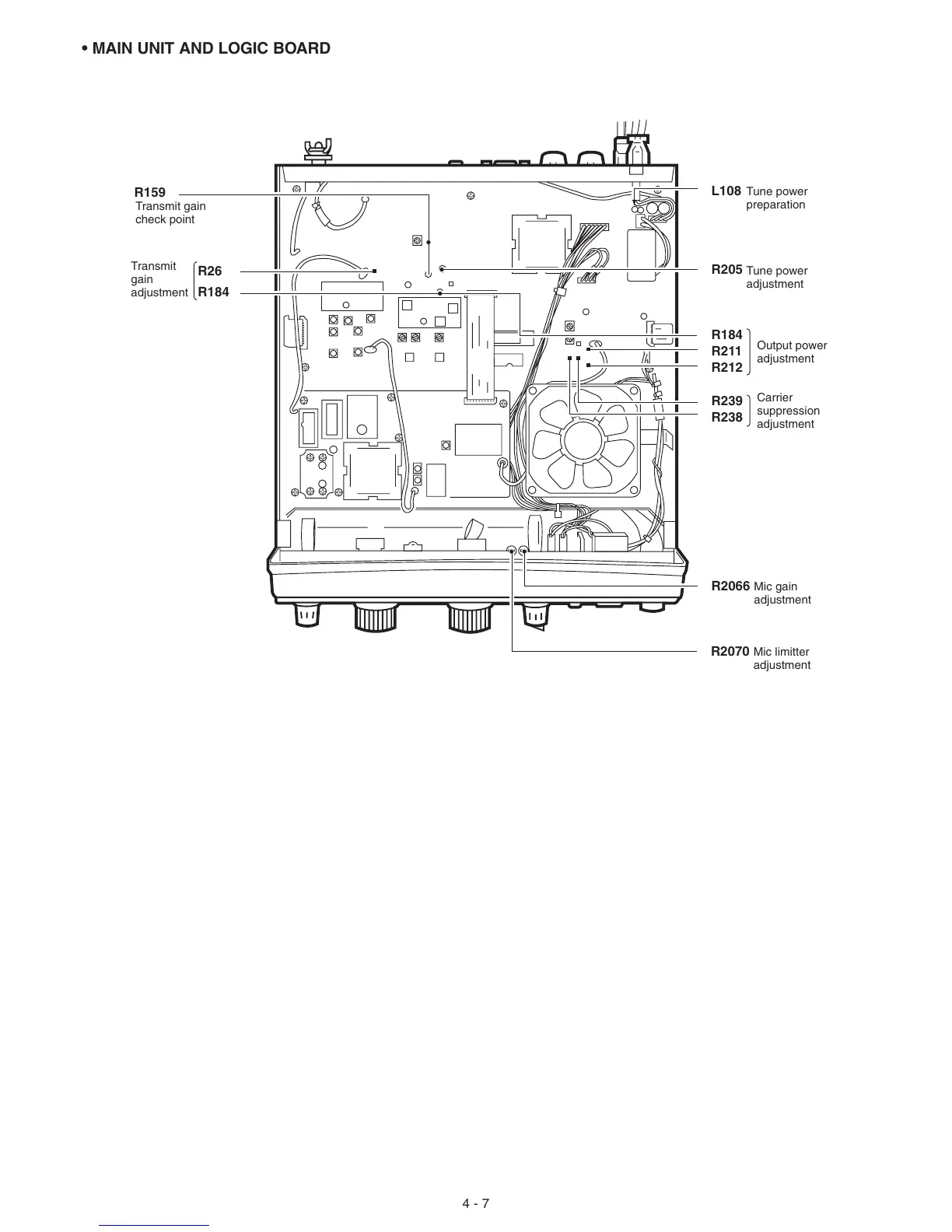

• MAIN UNIT AND LOGIC BOARD
