1 - 1

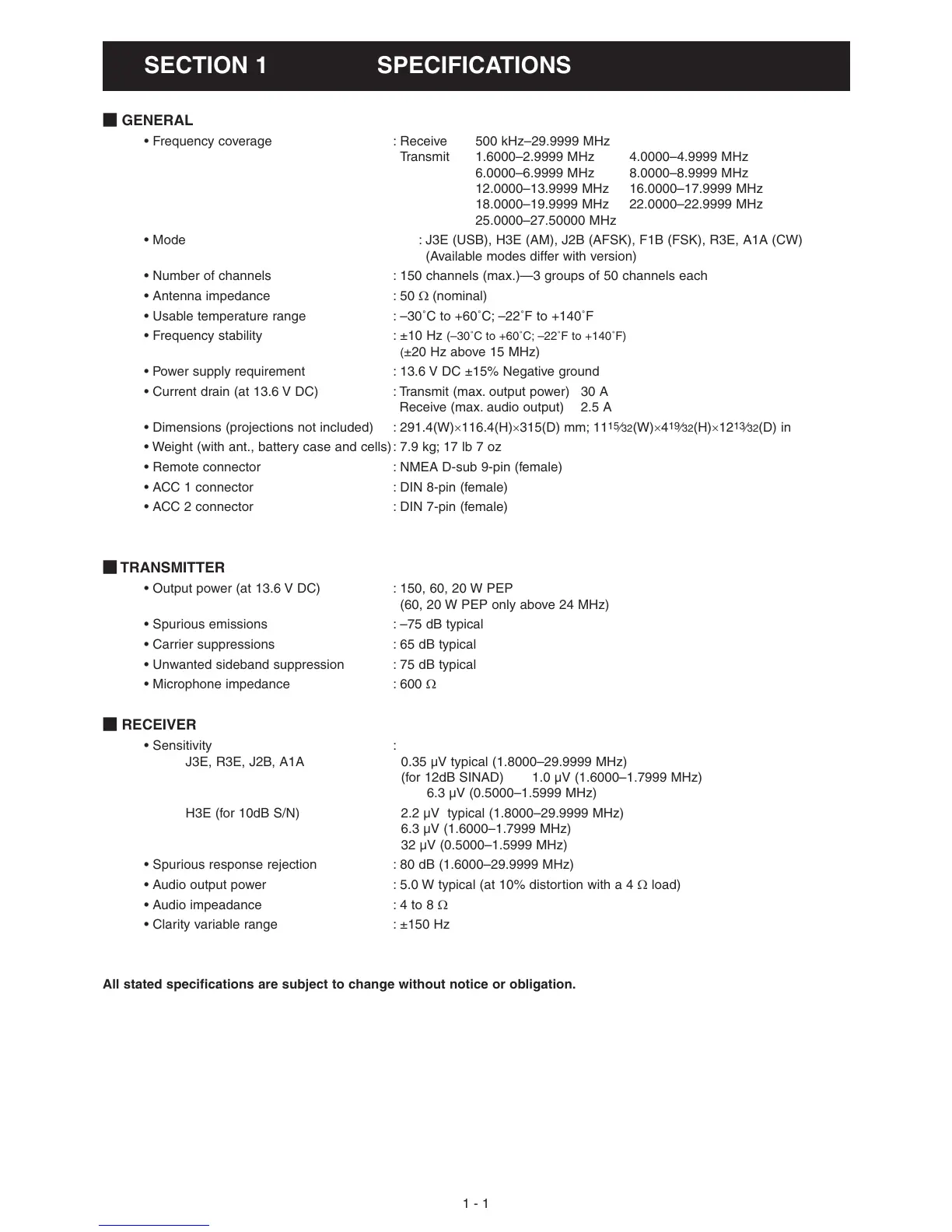

SECTION 1 SPECIFICATIONS
M GENERAL
• Frequency coverage : Receive 500 kHz–29.9999 MHz
Transmit 1.6000–2.9999 MHz 4.0000–4.9999 MHz
6.0000–6.9999 MHz 8.0000–8.9999 MHz
12.0000–13.9999 MHz 16.0000–17.9999 MHz
18.0000–19.9999 MHz 22.0000–22.9999 MHz
25.0000–27.50000 MHz
• Mode : J3E (USB), H3E (AM), J2B (AFSK), F1B (FSK), R3E, A1A (CW)
(Available modes differ with version)
• Number of channels : 150 channels (max.)—3 groups of 50 channels each
• Antenna impedance : 50 Ω (nominal)
• Usable temperature range : –30˚C to +60˚C; –22˚F to +140˚F
• Frequency stability : ±10 Hz
(–30˚C to +60˚C; –22˚F to +140˚F)
(±20 Hz above 15 MHz)
• Power supply requirement : 13.6 V DC ±15% Negative ground
• Current drain (at 13.6 V DC) : Transmit (max. output power) 30 A
Receive (max. audio output) 2.5 A
• Dimensions (projections not included) : 291.4(W)×116.4(H)×315(D) mm; 11
15
⁄32(W)×4
19
⁄32(H)×12
13
⁄32(D) in
• Weight (with ant., battery case and cells) : 7.9 kg; 17 lb 7 oz
• Remote connector : NMEA D-sub 9-pin (female)
• ACC 1 connector : DIN 8-pin (female)
• ACC 2 connector : DIN 7-pin (female)
M TRANSMITTER
• Output power (at 13.6 V DC) : 150, 60, 20 W PEP
(60, 20 W PEP only above 24 MHz)
• Spurious emissions : –75 dB typical
• Carrier suppressions : 65 dB typical
• Unwanted sideband suppression : 75 dB typical
• Microphone impedance : 600 Ω
M RECEIVER
• Sensitivity :
J3E, R3E, J2B, A1A 0.35 µV typical (1.8000–29.9999 MHz)
(for 12dB SINAD) 1.0 µV (1.6000–1.7999 MHz)
6.3 µV (0.5000–1.5999 MHz)
H3E (for 10dB S/N) 2.2 µV typical (1.8000–29.9999 MHz)
6.3 µV (1.6000–1.7999 MHz)
32 µV (0.5000–1.5999 MHz)
• Spurious response rejection : 80 dB (1.6000–29.9999 MHz)
• Audio output power : 5.0 W typical (at 10% distortion with a 4 Ω load)
• Audio impeadance : 4 to 8 Ω
• Clarity variable range : ±150 Hz
All stated specifications are subject to change without notice or obligation.
