Icom M700PROE Servise Manual

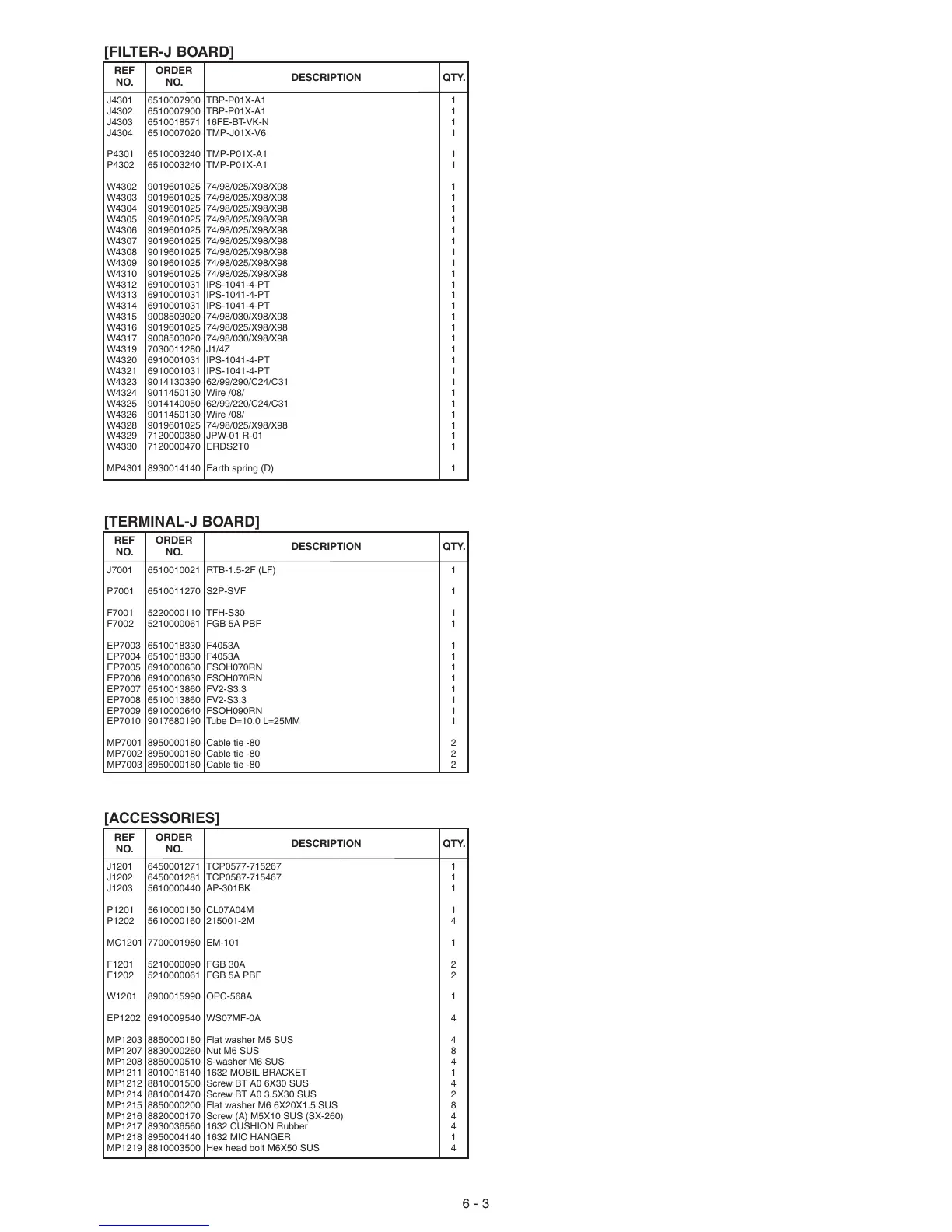

[FILTER-J BOARD]
REF ORDER
DESCRIPTION QTY.
NO. NO.
J4301 6510007900 TBP-P01X-A1 1
J4302 6510007900 TBP-P01X-A1 1
J4303 6510018571 16FE-BT-VK-N 1
J4304 6510007020 TMP-J01X-V6 1
P4301 6510003240 TMP-P01X-A1 1
P4302 6510003240 TMP-P01X-A1 1
W4302 9019601025 74/98/025/X98/X98 1
W4303 9019601025 74/98/025/X98/X98 1
W4304 9019601025 74/98/025/X98/X98 1
W4305 9019601025 74/98/025/X98/X98 1
W4306 9019601025 74/98/025/X98/X98 1
W4307 9019601025 74/98/025/X98/X98 1
W4308 9019601025 74/98/025/X98/X98 1
W4309 9019601025 74/98/025/X98/X98 1
W4310 9019601025 74/98/025/X98/X98 1
W4312 6910001031 IPS-1041-4-PT 1
W4313 6910001031 IPS-1041-4-PT 1
W4314 6910001031 IPS-1041-4-PT 1
W4315 9008503020 74/98/030/X98/X98 1
W4316 9019601025 74/98/025/X98/X98 1
W4317 9008503020 74/98/030/X98/X98 1
W4319 7030011280 J1/4Z 1
W4320 6910001031 IPS-1041-4-PT 1
W4321 6910001031 IPS-1041-4-PT 1
W4323 9014130390 62/99/290/C24/C31 1
W4324 9011450130 Wire /08/ 1
W4325 9014140050 62/99/220/C24/C31 1
W4326 9011450130 Wire /08/ 1
W4328 9019601025 74/98/025/X98/X98 1
W4329 7120000380 JPW-01 R-01 1
W4330 7120000470 ERDS2T0 1
MP4301 8930014140 Earth spring (D) 1
[TERMINAL-J BOARD]
REF ORDER
DESCRIPTION QTY.
NO. NO.
J7001 6510010021 RTB-1.5-2F (LF) 1
P7001 6510011270 S2P-SVF 1
F7001 5220000110 TFH-S30 1
F7002 5210000061 FGB 5A PBF 1
EP7003 6510018330 F4053A 1
EP7004 6510018330 F4053A 1
EP7005 6910000630 FSOH070RN 1
EP7006 6910000630 FSOH070RN 1
EP7007 6510013860 FV2-S3.3 1
EP7008 6510013860 FV2-S3.3 1
EP7009 6910000640 FSOH090RN 1
EP7010 9017680190 Tube D=10.0 L=25MM 1
MP7001 8950000180 Cable tie -80 2
MP7002 8950000180 Cable tie -80 2
MP7003 8950000180 Cable tie -80 2
[ACCESSORIES]
REF ORDER
DESCRIPTION QTY.
NO. NO.
J1201 6450001271 TCP0577-715267 1
J1202 6450001281 TCP0587-715467 1
J1203 5610000440 AP-301BK 1
P1201 5610000150 CL07A04M 1
P1202 5610000160 215001-2M 4
MC1201 7700001980 EM-101 1
F1201 5210000090 FGB 30A 2
F1202 5210000061 FGB 5A PBF 2
W1201 8900015990 OPC-568A 1
EP1202 6910009540 WS07MF-0A 4
MP1203 8850000180 Flat washer M5 SUS 4
MP1207 8830000260 Nut M6 SUS 8
MP1208 8850000510 S-washer M6 SUS 4
MP1211 8010016140 1632 MOBIL BRACKET 1
MP1212 8810001500 Screw BT A0 6X30 SUS 4
MP1214 8810001470 Screw BT A0 3.5X30 SUS 2
MP1215 8850000200 Flat washer M6 6X20X1.5 SUS 8
MP1216 8820000170 Screw (A) M5X10 SUS (SX-260) 4
MP1217 8930036560 1632 CUSHION Rubber 4
MP1218 8950004140 1632 MIC HANGER 1
MP1219 8810003500 Hex head bolt M6X50 SUS 4
6 - 3
